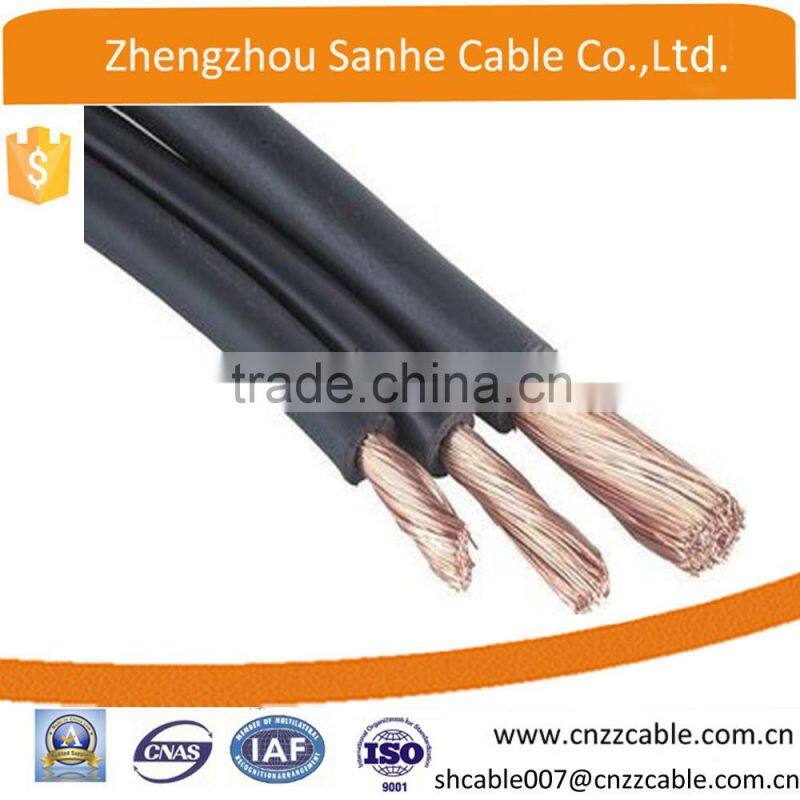

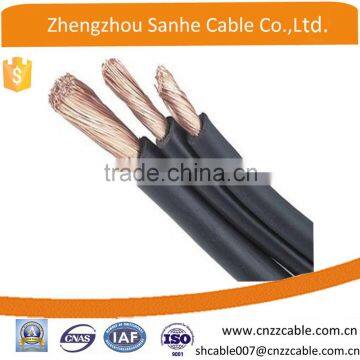

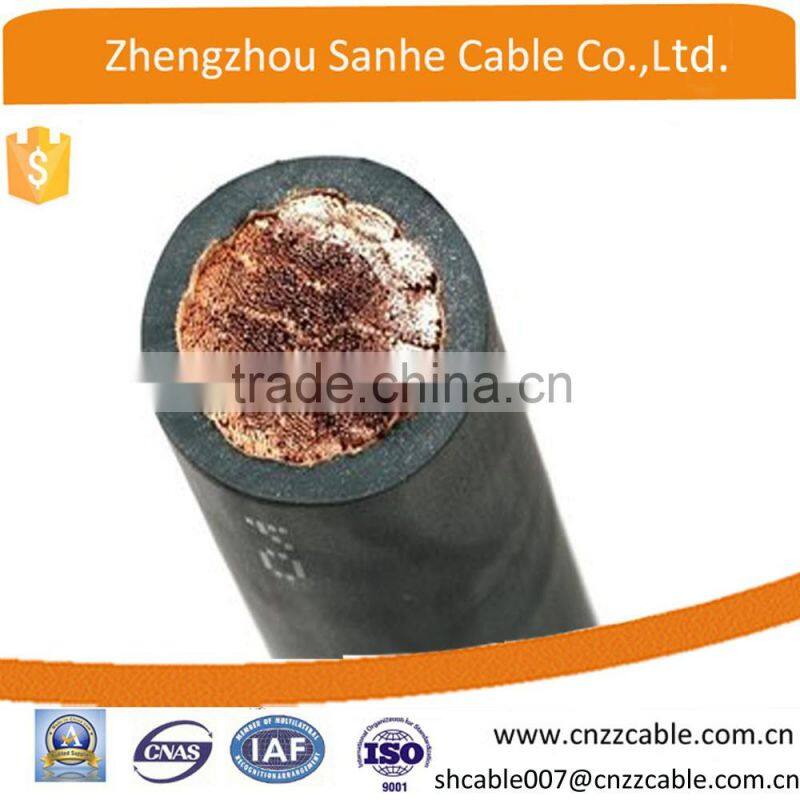

25mm2,35mm2,50mm2,70mm2 Rubber/pvc Insulated Welding Electrical Cable

US$ 1 - 100 MOQ: 100 Meters

Key Specifications

Place of Origin:

Henan, China

Brand Name:

OEM

Model Number:

welding Cable

Zhengzhou Sanhe Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name OEM

Model Number welding Cable

Insulation Material Rubber

Type Low Voltage

Application Telecommunication

Conductor Material Other, Copper, copper

Jacket Other, none

Copper conductor PVC/Rubber insulated wedling cable

1.Application :

This product is suitable for the welding machine whose voltage to the ground is not more than 200 V and pulsating current value is 400 V.

2.section :

10 sq mm , 16 sq mm, 25 sq mm, 35 sq mm, 50 sq mm, 70 sq mm, 95 sq mm, 120 sq mm, 150 sq mm, 185 sq mm, 250 sq mm, up to 400 sq mm.

6/0awg.4/0awg.1/0awg.2awg,4awg

3.Model, name and work in temperature

Model	name	working temperatuere of core
60245IEC81(YH)	Natural rubber sheath for welding machine cable	65C
60245IEC82(YHF)	chloroprene rubber or other elastomer sheath welding machind cable	65C

4.Specification size and technical data

Section (mm2)	Conductive core	Thickness of sheath (mm)	Average outer diameter (mm)		20C conductor resistance (ohm/km)	Reference weight (kg/km)
Section (mm2)	Number diameter of core (mm)		Min	Max		YH	YHF
16	513/0.2	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.2	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.2	2.0	11.5	14.5	0.536	426	439.8
50	1596/0.2	2.2	13.5	17.0	0.379	592.5	610.55
70	2214/0.2	2.4	15.0	19.5	0.268	790	817.5
95	2997/0.2	2.6	17.0	22.0	0.198	1066.2	1102.9
