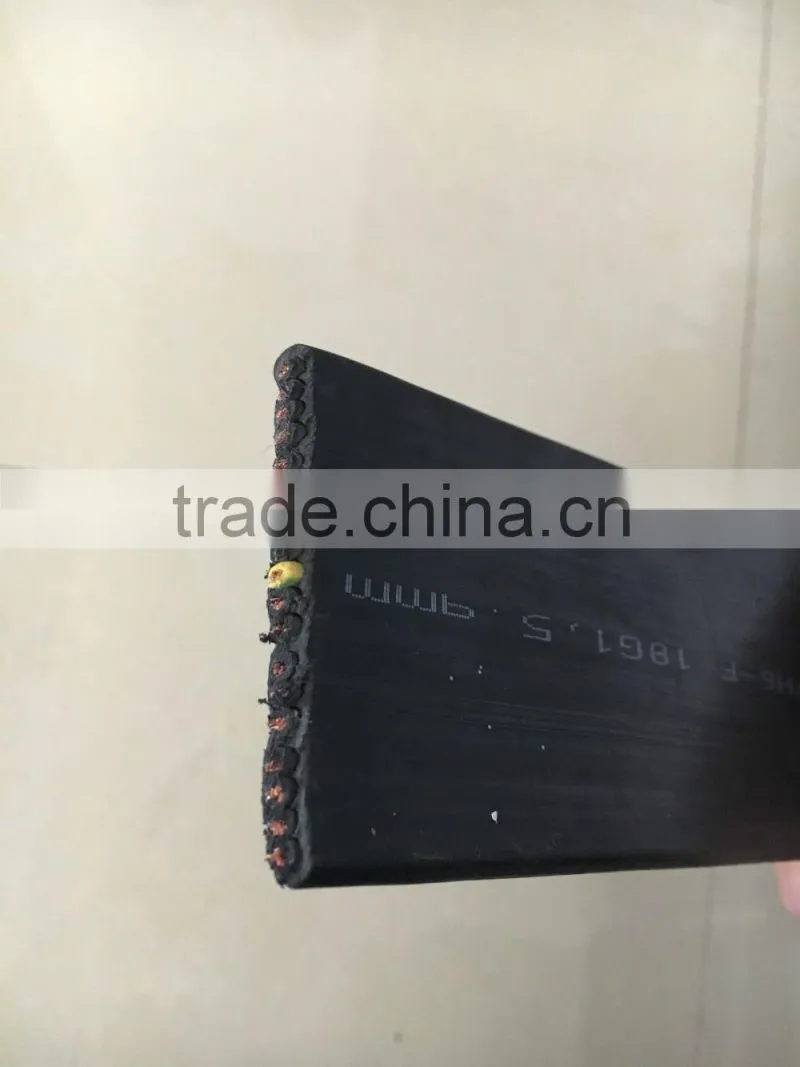

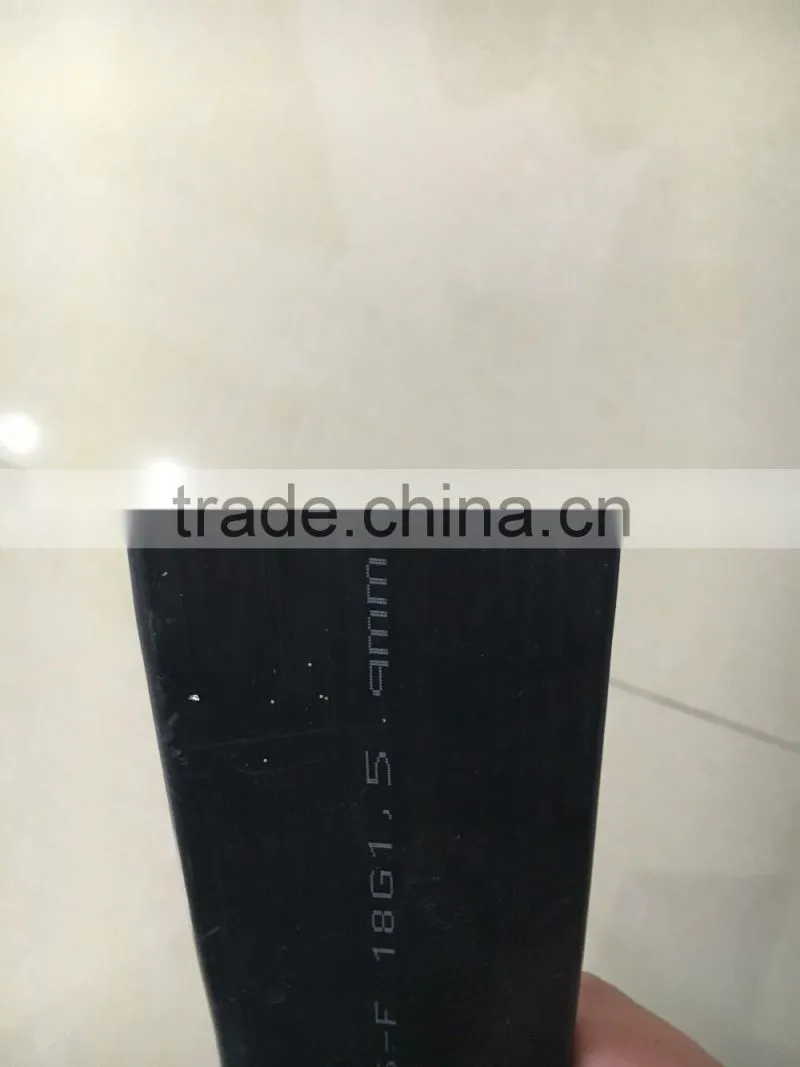

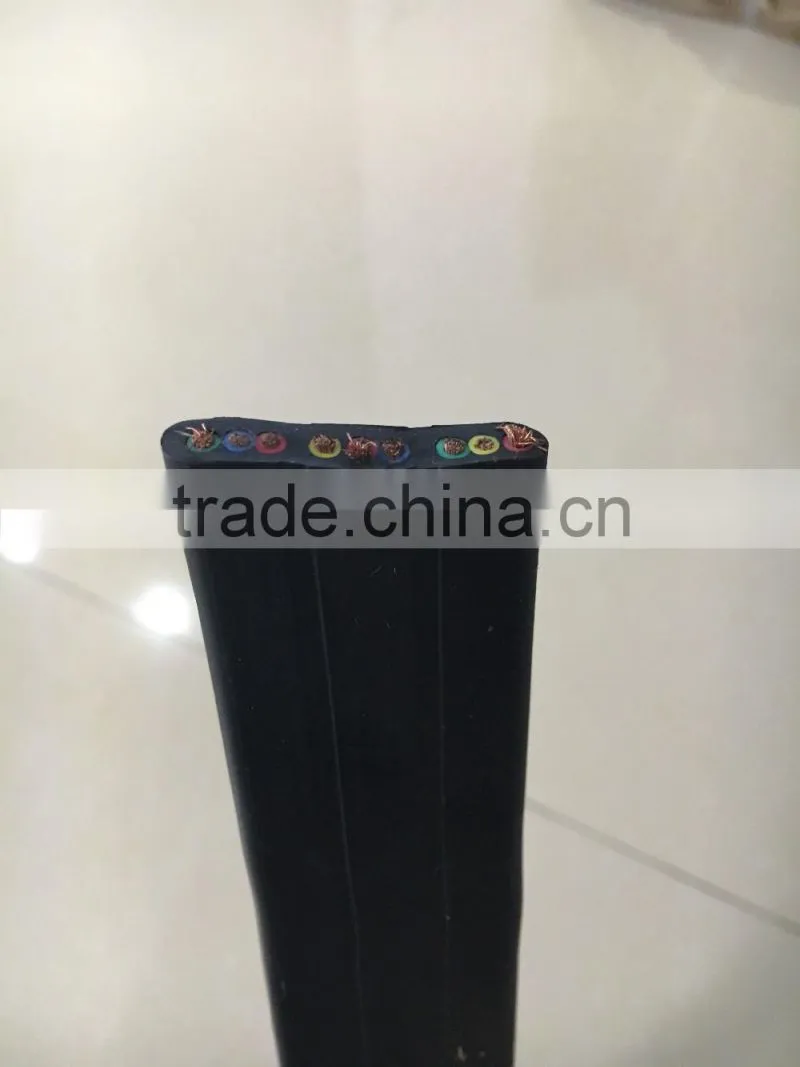

Copper conductor Submersible Pump Cable Flat Rubber Cable
1.Application:
This products are suitable for household electrical appliances, electric power pool and various portable electric equipment under the circumstance that the rated voltage is up to 450/750V.
2.Standard:
This product can be produced according to the Chinese standard GB8736.2-1998, and international standards such as IEC, BS, ASTM and DIN.
3.Operating characteristics:
A. The rate voltage at 300/500V (YZ model ), 450/750V (YC model ).
B. The rated temperature of conductor is less than 65°C.
C. “W”model, this model have climate resistance and oil resistance characteristics, suitable for outdoor and oil occasion used.
D. The -ZR model of cable has the flame retardant performance.
Rubber Cable Type, Description & Application:
Type |
Description |
Application |
|
YQ,YQW |
Light type soft rubber sheath cable |
For lighe type mobile electric devices and tools
|
|
YZ,YZW |
General type soft rubber sheathe cable |
For lighe type mobile electric devices and tools
|
|
YC,YCW |
Heavy type soft rubber sheath cable |
For various mobile electric devices, it could bear strong mechanical force from outside.
|
Rubber Cable Specification Range:
|
Type |
Rated Voltage |
Core Number |
Nominal Cross-section Area |
YQ, YQW |
300/300 |
2.3 |
0.3~0.5 |
YZ, YZW |
300/500 |
2.3.4.5.3+1 |
1.5~6 |
|
YC |
450/750 |
1 2 3.4 5 |
1.5~240 1.5~95 1.5~150 1.5~25 |
| 3+1 Core Rubber-Sheathed Flexible Cable(300/500V) | |||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||

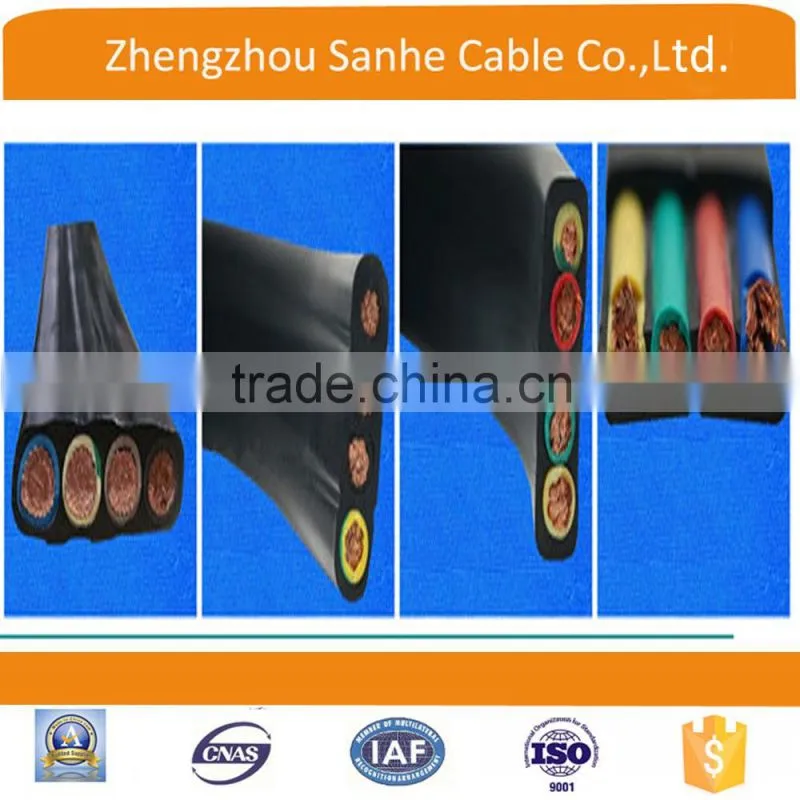

4. Partial products
Notes: The product will be apply to the drive devices, household electric instruments, all kinds of portable electrical equipments and electromotive tools at A.C rated voltage Uo/U up to 450/750V.
If you have such inquiry, you can contact us, we will do our best to support you !
