Copper Conductor Submersible Pump Cable Flat Rubber Cable

Copper Conductor Submersible Pump Cable Flat Rubber Cable photo-1
US$ 1 - 100 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Sanhe
Model Number:
YJLV
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name Sanhe
Model Number YJLV
Insulation Material Rubber
Type Other, Low Voltage, stranded
Application Construction
Conductor Material Copper
Jacket Other, pvc



Copper conductor Submersible Pump Cable Flat Rubber Cable





1.Application:



This products are suitable for household electrical appliances, electric power pool and various portable electric equipment under the circumstance that the rated voltage is up to 450/750V.







2.Standard:



This product can be produced according to the Chinese standard GB8736.2-1998, and international standards such as IEC, BS, ASTM and DIN.







3.Operating characteristics:



A. The rate voltage at 300/500V (YZ model ), 450/750V (YC model ).



B. The rated temperature of conductor is less than 65°C.



C. “W”model, this model have climate resistance and oil resistance characteristics, suitable for outdoor and oil occasion used.



D. The -ZR model of cable has the flame retardant performance.



Rubber Cable Type, Description & Application:

Type

Description

Application



YQ,YQW

Light type soft rubber sheath cable



For lighe type mobile electric devices and tools





YZ,YZW

General type soft rubber sheathe cable



For lighe type mobile electric devices and tools





YC,YCW

Heavy type soft rubber sheath cable



For various mobile electric devices, it could bear

strong mechanical force from outside.





Rubber Cable Specification Range:



Type



Rated Voltage



Core Number

Nominal Cross-section Area

YQ, YQW

300/300

2.3

0.3~0.5

YZ, YZW

300/500

2.3.4.5.3+1

1.5~6



YC



450/750

1

2

3.4

5

1.5~240

1.5~95

1.5~150

1.5~25



3+1 Core Rubber-Sheathed Flexible Cable(300/500V)


Cores ×Nominal section (mm2)

 conductive core (mm)

 Average outer diameter(mm2)

 20°C conductor resistance

Reference weight (kg/km)

 number diameter of core

 Minimum

Maximum l

 Copper core

tin-welled Copper core

YZ

YZW

3×1.5+1×1.0

30/0.25+32/0.20

9.4

12.0

13.3

13.7

170.1

181.9

3×2.5+1×1.5

49/0.25+30/0.25

11.0

14.0

7.98

8.21

246.8

262.9

3×4+1×2.5

56/0.30+49/0.25

13.0

16.0

4.95

5.09

359.1

380.52

3×6+1×4

84/0.30+56/0.30

14.5

19.5

3.30

3.39

542.1

572.5

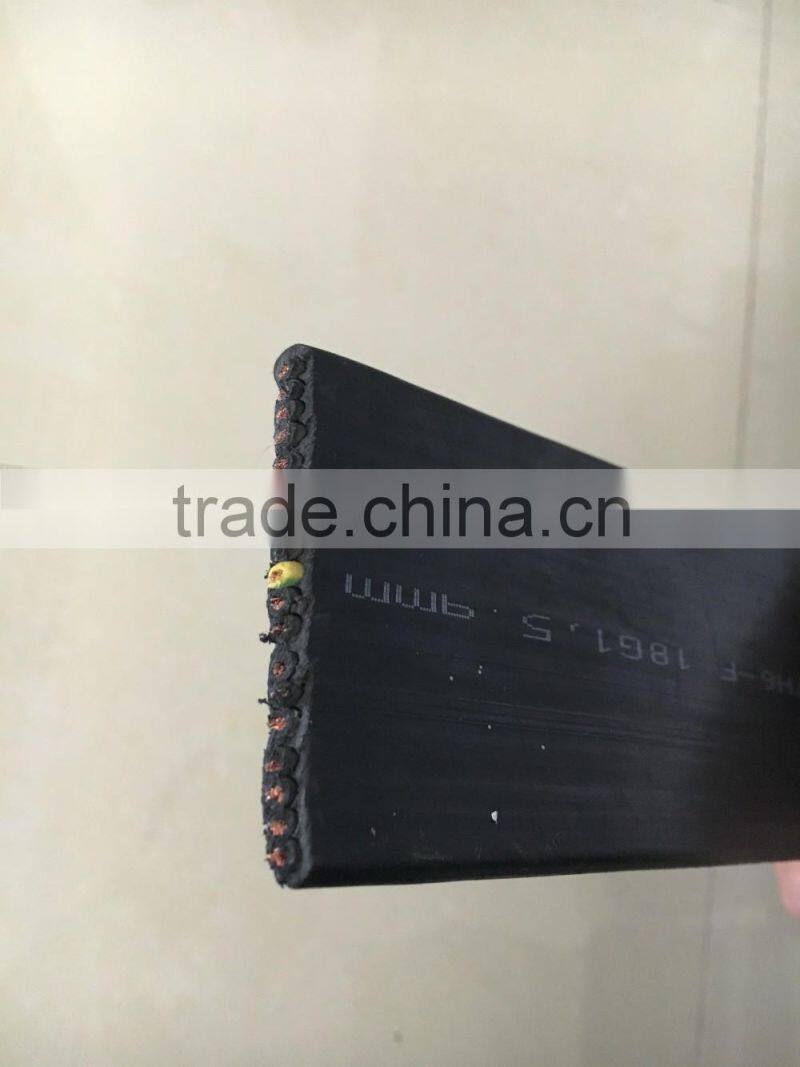

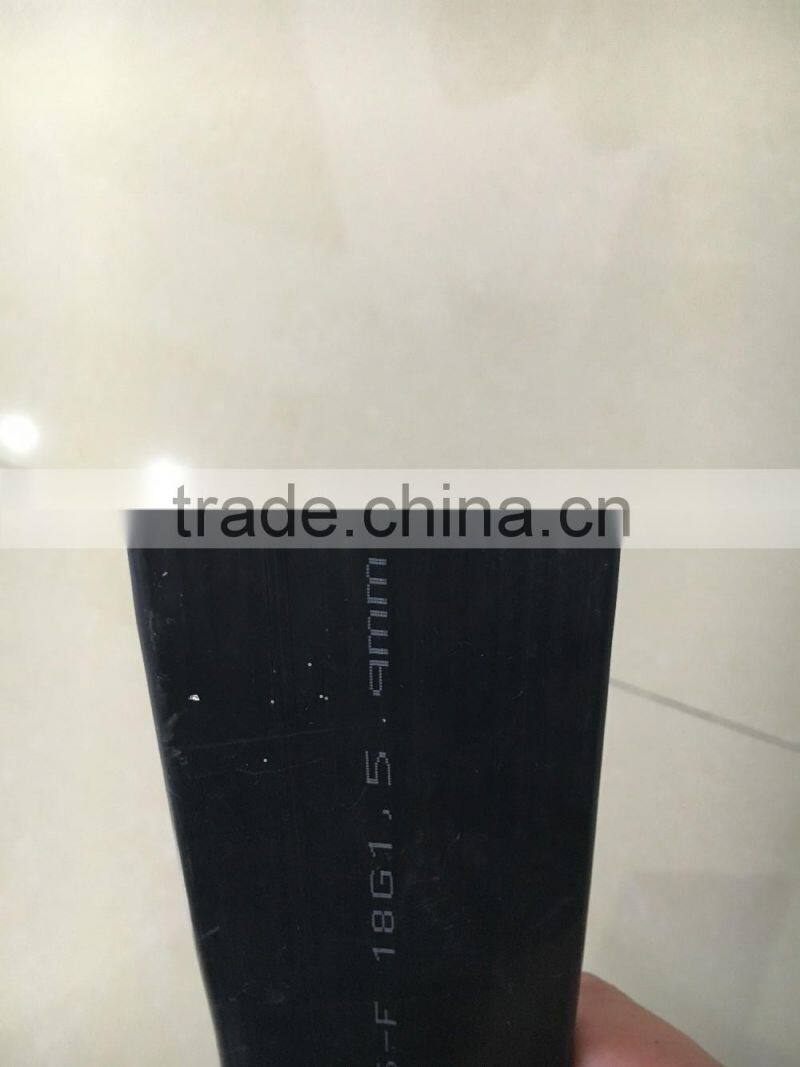

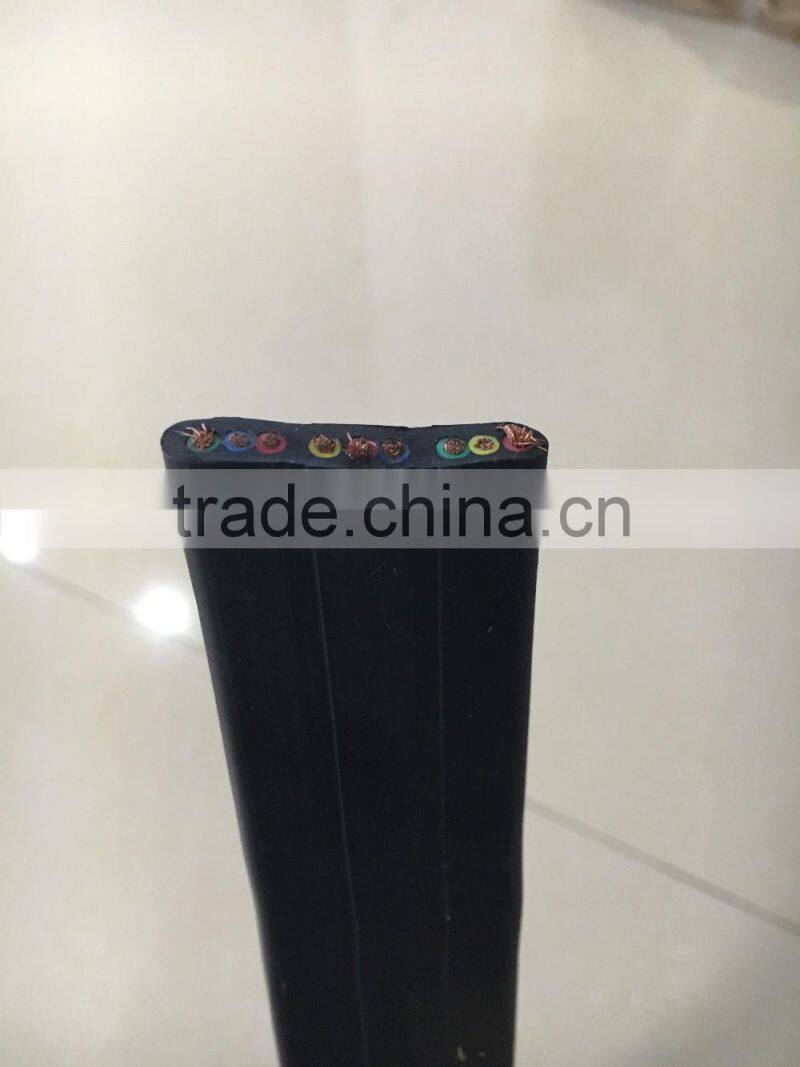

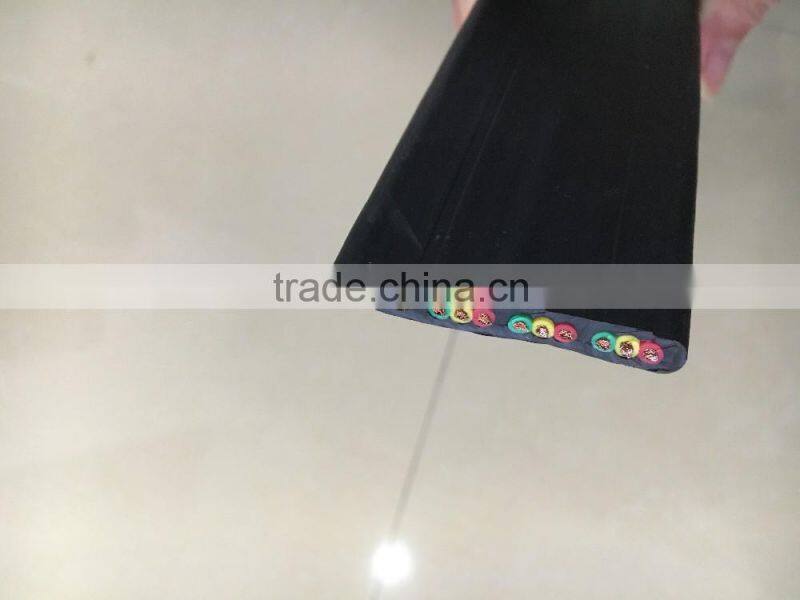

4. Partial products



Copper conductor Submersible Pump Cable Flat Rubber CableCopper conductor Submersible Pump Cable Flat Rubber CableCopper conductor Submersible Pump Cable Flat Rubber CableCopper conductor Submersible Pump Cable Flat Rubber Cable



 If you have such inquiry, you can contact us, we will do our best to support you  !
