Specifications
1.pvc insulated LT power cable2.Iso -9001 quality guarantee
3.Manufacture direct sales
4.Small quantity accepted
pvc insulated LT power cable
Solid / Multistrand Copper and Aluminium conductor
Cu.AL/XLPE/SWA/PVC, Cu.AL/XLPE/PVC
AL.Cu/XLPE/AWA/PVC,AL.Cu/PVC/PVC
Description:
1. The long-term permissible operating temperature of the cable conductor shall not be higher than 70°C
2. The max temperature of the conductor of power cable should less then 160 °C when short circuit. (less then 5 second)
3. The pvc insulated power cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0 °C
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance
5. Light weight, perfect bending properties, installed and maintained easily and conveniently
Specification:
1. Conductors: copper or aluminum.
2. Both armored and non-armored type power cables are available.
3. Voltage rating: 0.6/1kV 3.6/6kV 6/10kV 8.7/15kV 26/35kV.
4. PVC or PE sheathed.

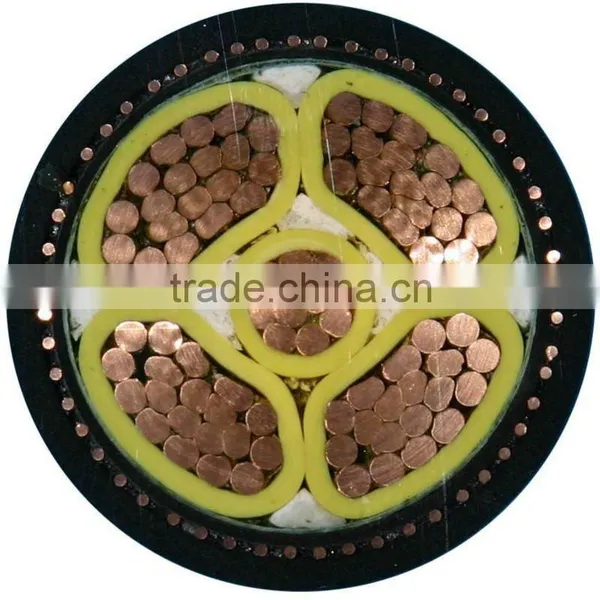

5. Number of cable cores: one core (Single core),two cores(Double cores),three cores,
Four cores (Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),
Five cores (Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).
6. Standards: IEC 60502.IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc. Or other special characteristics as customers request.
Operating Characteristics:
Rated power-frequency voltage u0/u:0.6/1 KV
Max permissible continuous operating temperature of conductor 70
Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): cross-section of conductor 300 mm2
The ambient temperature under installations should not be below 0
The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter.
Contact us directly if you find it difficult to look for the exact size you want,we'll do our best to facilitate you!
°C
