Specifications
1.pvc insulated fr power cable2.Iso -9001 quality guarantee
3.Manufacture direct sales
4.Small quantity accepted
pvc insulated flame retardant power cable
Product Description
1. Conductor working tempreture:140 centigrade
2. Short Circuit Tempreture: 180 centigrade
3. IEC 60332/BS4066
1.Usage:
The feature of the flame retardant power cable is that, when there is fire occur and cables may be demaged, the cable can provent the fire grow bigger and can protect other equipment to avoid bigger loss.
2. Physical Feature:
1. Highest Conductor Working Tempreture: 140 centigrade
2. Short Circuit Tempreture: 180 centigrade (lasting 5 seconds)
3. Bending Ratuis: Single Core not less than 15 times of outer Dia. Multi-core not less than 10 times of outer Dia.
4. Flame-Retardant Feature: IEC 332-3
5. Rated Voltage: 0.6/1KV
6. Flame Retardant Feture: GB12666.5/IEC 332-3

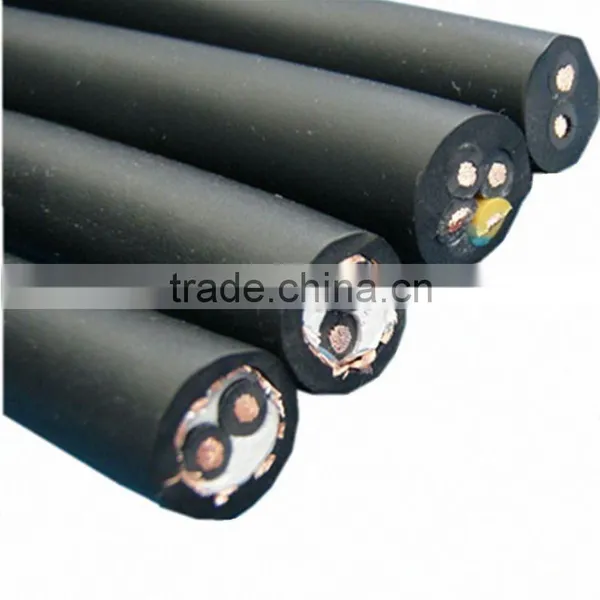

3. Reference photos and specifications:
Structure:
Section Aera: 1.5mm2-630mm2
No.of cores: 1-5 cores, 3+1 cores, 4+1 cores, 3+2 cores
Conductor: Annealled Copper As Per Relative Internation standard.
Insulation: PVC
Armour: Steel Wire Armour or Steel Tape Armour
Sheath: PVC
You can contact us directly if you find it difficult to look for the exact sizes you want,we'll do our best to facilitate you!
