2.4ghz 500mw High Power Outdoor CPE for Max 5km Transmission

US$ 20 - 40 MOQ: 500 Units

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

APT-300CPE2.4

Shenzhen APT Communication Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number APT-300CPE2.4

Product Description

Currently available solutions:

1,AR9341 2.4ghz 11n 300mbps

2,AR9344 5.8ghz 11a/n 300mbps

3,AR9344+AR9382 2.4&5.8ghz 11a/n dual band 600mbps

4,QCA9531+QCA9887 2.4&5.8ghz 11ac dual band 750mbps

5,QCA9563+QCA9882+QCA8337 2.4&5.8ghz 11ac dual band 1200mbps

Also welcome to OEM Qualcomm Atheros other solutions wifi ap/cpe/router

Feature:

APT-300CPE2.4 is 300Mbps high power 500mw outdoor wireless CPE/AP with omni antennas buitl-in.It Complies with IEEE802.11b/g/n standard,adopt AR9341 chipset,8MB flash,64MB DDR2 RAM.
14dBi high gain antenna,500mW high power,more than 3000 meters wifi range,good choice for outdoor wifi signal coverage.

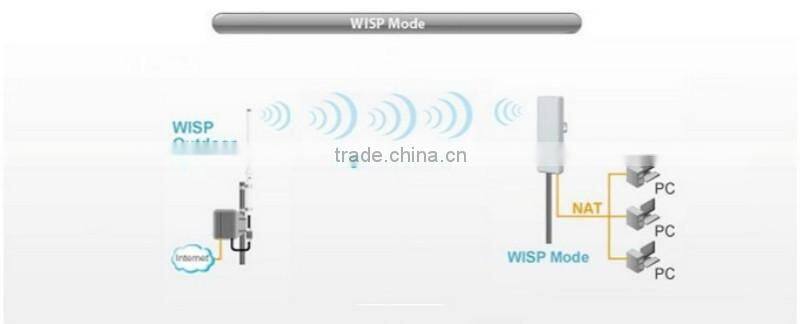

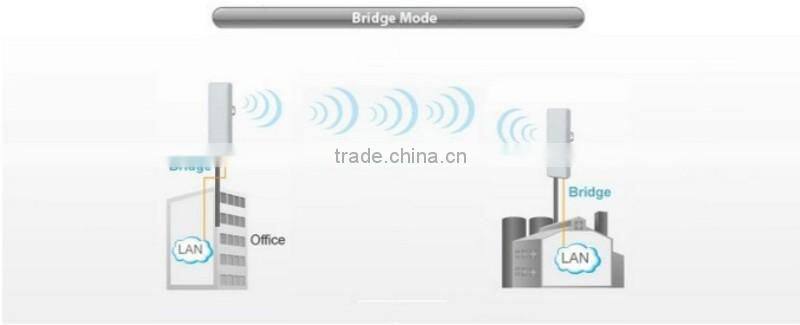

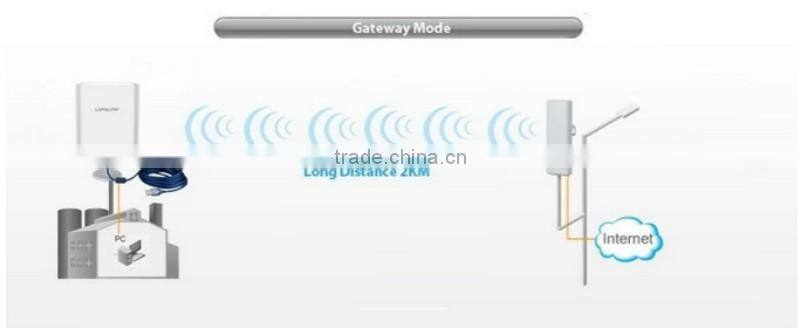

Gateway,AP and WiFi Repeater operation modes,it can transmit wifi signal in a wide area for outdoor users,or can bridge the exist wifi signal to extend the range.

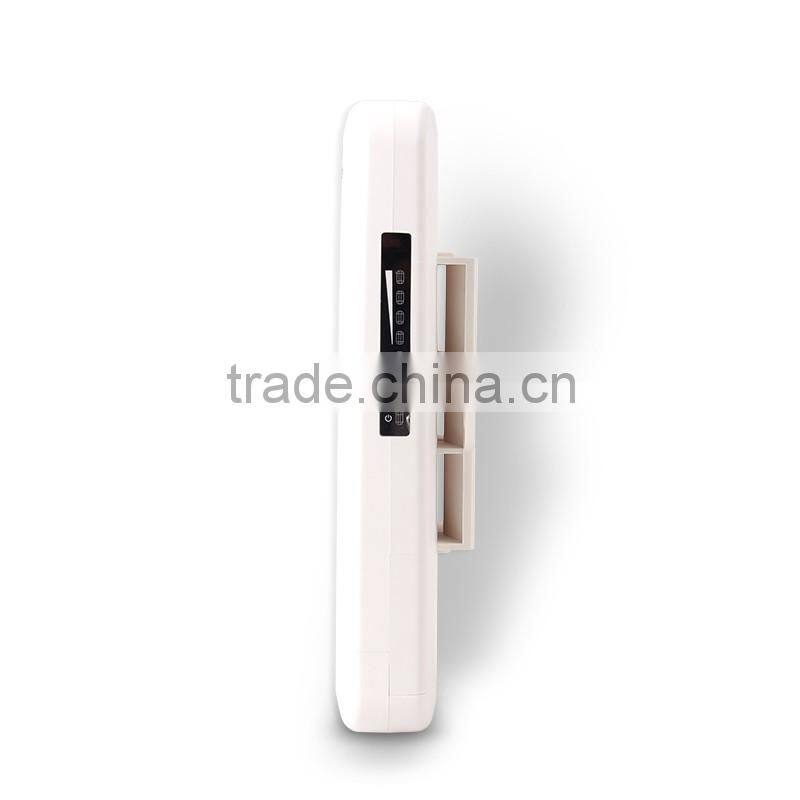

APT-300CPE2.4 with ABS waterproof,dustproof and sunscreen shell,temperature adaptive and board protective charactors,suit for outdoor wifi coverage projects.Meantime,it supports Power over Ethernet,passive PoE/IEEE 802.3af PoE,so it's easy to setup even no power socket nearby.With LED light indicates signal strength, which is easy to find a suitable place for outdoor CPE.

APT-300CPE2.4 supports multi 4 SSID,each SSID comply with IEEE802.1Q VLAN,when works with our AC controller,easy to be configured and setup centrally,and it supports Portal captive,which is easy to add promotion ads for users.

Spec:

hardware
hardware
Chipset	AR9341
Wireless	802.11B/G/N, 2T2R 300M MIMO Technology
Memory	64MB DDR2 RAM
Flash	8MB(16MB max)
Interface	2 10/100 Mbps RJ45 Port, support 24v/48V PoE
	1 Reset Button
	1 DC Jack, 12V Power Supply
Antenna	14dbi Antenna
LED Light	POWER WIFI WAN LAN S1(GPIO9) S2(GPIO14) S3(GPIO11) S4(GPIO12)
Size	L:257mm,W:87mm,H:38mm
Power	DC12V1A/POE 24V(48v optional);100V/240V
RF Data
RF Data	802.11b/g/n
	2.4GHz
	Korea,Japan,ETSI,FCC
Modulation	OFDM = BPSK,QPSK, 16-QAM, 64-QAM
	DSSS = DBPSK, DQPSK, CCK
Data Rate	300 Mbps
Firmware
Operation Mode	Gateway/AP/WiFi Repeater
Protocol/Standard	IEEE 802.3(Ethernet)
	IEEE 802.3u(Fast Ethernet)
	IEEE 802.11N(2.4G WLAN)
Wireless	Auto-Channel selection
	Distance Control (802.1x Ack timeout)
	Multiple SSID (4 SSID)
	BSSID
Security	WEP Encryption-64/128/152 bit
	WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
	WPA/WPA2 Enterprise (WPA-EAP using TKIP)
	Hide SSID
System Setting	Web-based configuration (HTTP/Telnet)
Firmware upgrade	Upgrade firmware via web browser or TFTP
Administration	Admin Password can be configured
System monitoring	Status in hand,useful statistic and Event log
Log	Supports local logs,logs host,logs file export
Reset	Reset or factory defaults
Backup	Restore settings & configuration of the device to local file
Physical Property
Temperature	Working:0°C~55°C
Humidity	Storage:-20°C to 70°C
Humidity	5%~95% (typical)

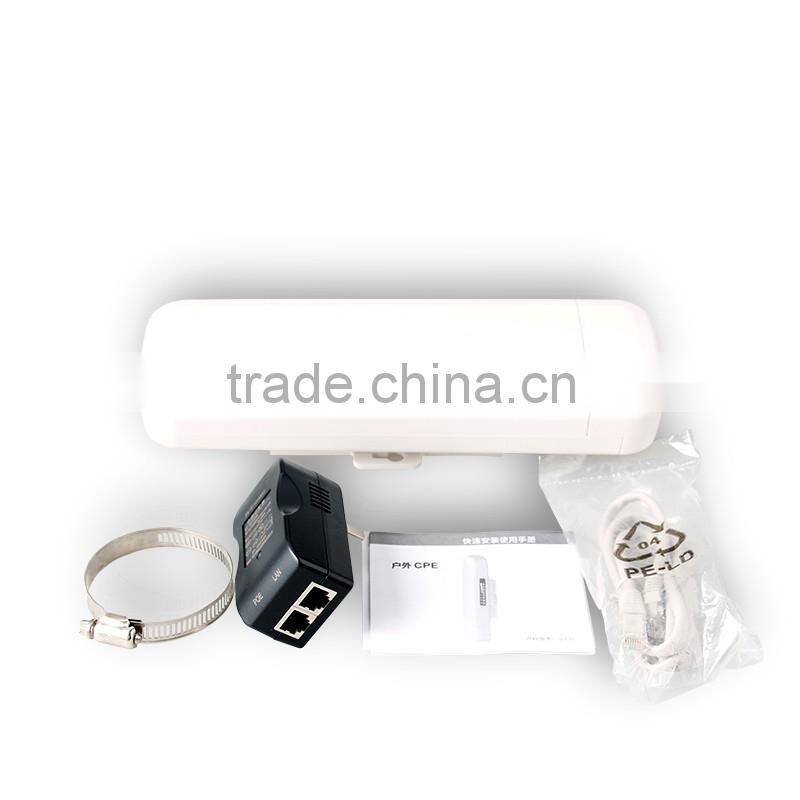

Package
CPE unit*1
PoE Adapter*1
User Manual*1
LAN Cable*1
Stainless steel ring*2
