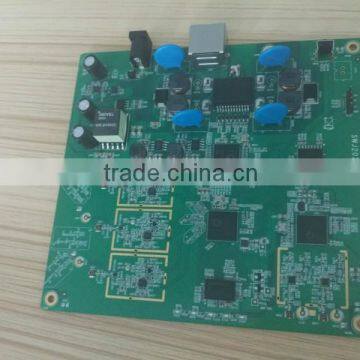

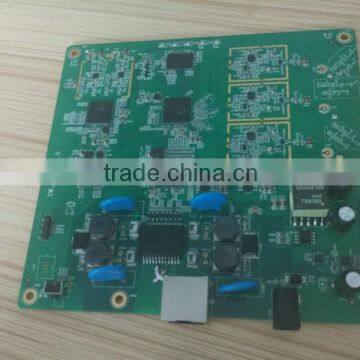

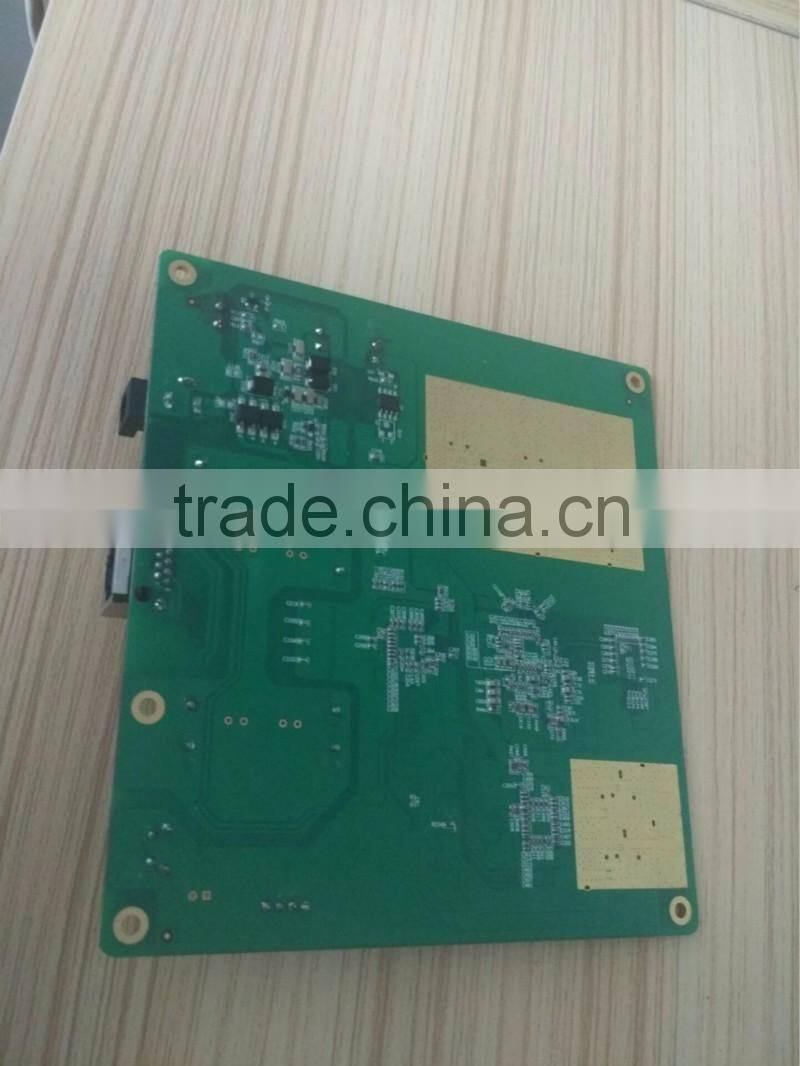

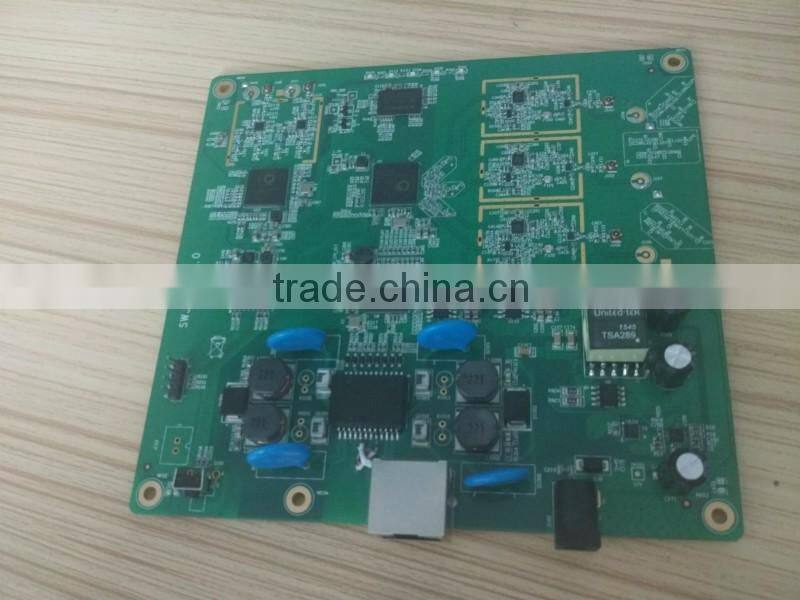

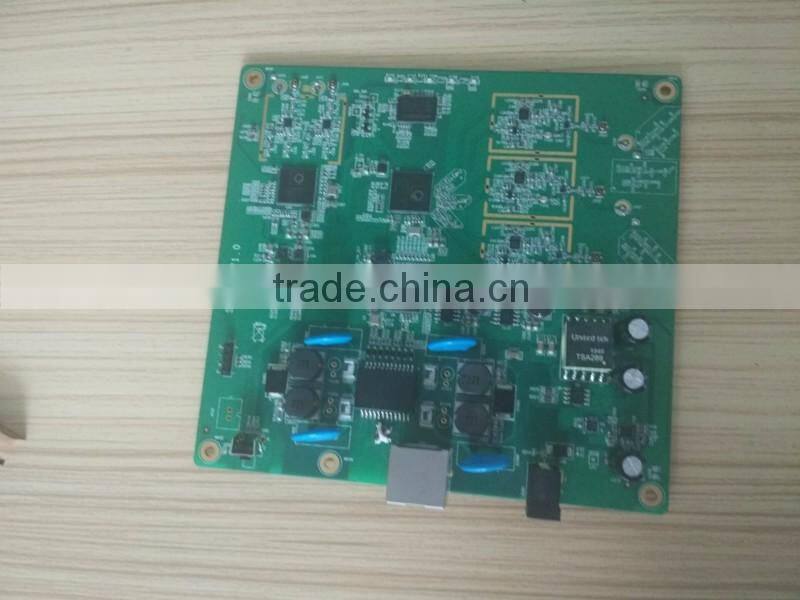

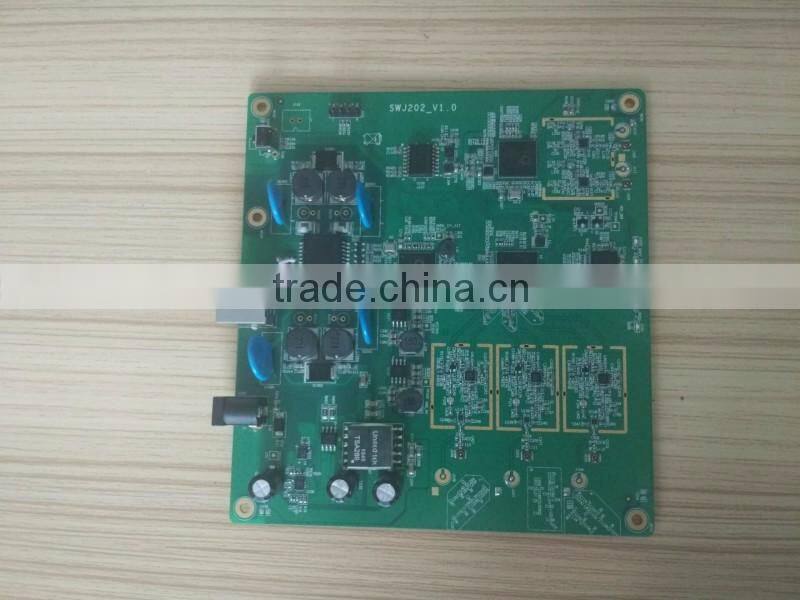

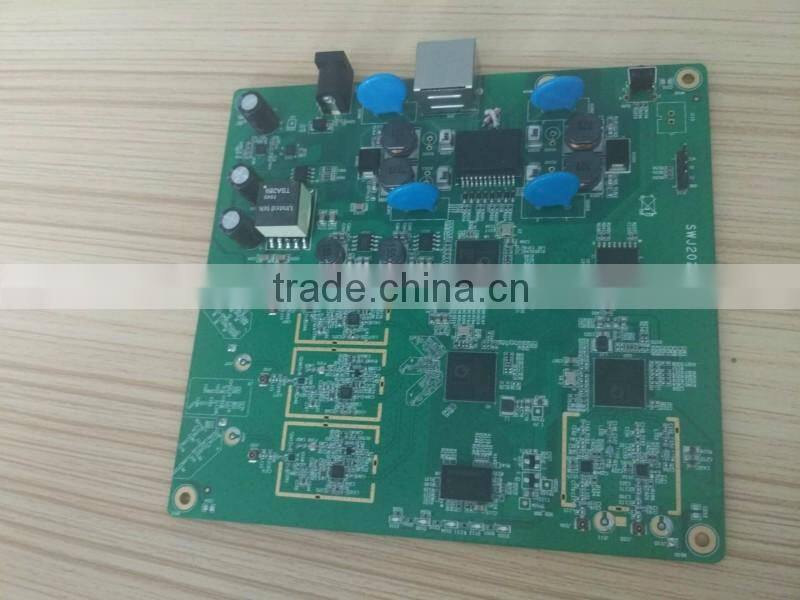

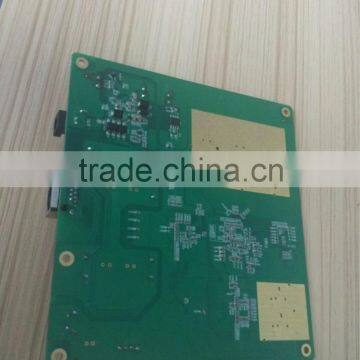

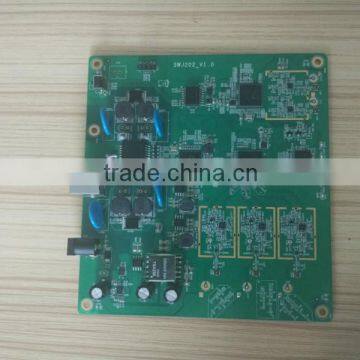

QCA9563+QCA9882+QCA8337 Solution 11ac 1200mbps Gigabit WiFi Access Point/CPE Board

US$ 45 - 60 MOQ: 1000 Units

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

APT-WB1200

Shenzhen APT Communication Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number APT-WB1200

Product Description

This wifi board can be done as enterprise-class indoor wifi ap,outdoor CPE.

Welcome to OEM Qualcomm Atheros solution wifi router/ap/cpe

Feature:

APT-WB1200 is 11n/a dual band 2*2 1200Mbps high power 500mw indoor/outdoor wireless CPE/AP Board.It Complies with IEEE802.11ac standard,with QCA9563+QCA9882+QCA8337 chipset,16MB flash,128MB DDR2 RAM.
500mW high power,more than 3000meters wifi range,good choice for outdoor wifi signal coverage.
Gateway,AP and WiFi Repeater operation modes,it can transmit wifi signal in a wide area for outdoor users,or can bridge the exist wifi signal to extend the range.

APT-WB1200 supports Power over Ethernet,passive PoE/IEEE 802.3af PoE,so it's easy to setup even no power socket nearby.With LED light indicates signal strength, which is easy to find a suitable place for indoor/outdoor CPE/AP

Spec:

hardware
hardware
Chipset	QCA9563+QCA9882+QCA8337
Wireless	802.11AC, 2T2R 1200M MIMO Technology
Memory	128MB DDR2 RAM
Flash	16MB
Interface	1 10/100/1000Mbps RJ45 Port, support 48V PoE
	1 Reset Button
	1 DC Jack, 12V Power Supply
Antenna	8/12/14/16dbi Antennas
LED Light	POWER WIFI WAN LAN S1(GPIO9) S2(GPIO14) S3(GPIO11) S4(GPIO12)
Size	L:257mm,W:87mm,H:38mm
Power	DC12V1A/POE 48V;100V/240V AC
RF Data
RF Data	802.11ac
	5.8GHz,2.4Ghz
	Korea,Japan,ETSI,FCC
Modulation	OFDM = BPSK,QPSK, 16-QAM, 64-QAM
	DSSS = DBPSK, DQPSK, CCK
Wifi Rate	1200Mbps
Firmware
Operation Mode	Gateway/AP/WiFi Repeater
Protocol/Standard	IEEE 802.3(Ethernet)
	IEEE 802.3u(Fast Ethernet)
	IEEE 802.3ab(Gigabit Ethernet)
	IEEE 802.11ac(2.4G&5.8G WLAN)
Wireless	Auto-Channel selection
	Distance Control (802.1x Ack timeout)
	Multiple SSID (4 SSID)
	BSSID
Security	WEP Encryption-64/128/152 bit
	WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
	WPA/WPA2 Enterprise (WPA-EAP using TKIP)
	Hide SSID
System Setting	Web-based configuration (HTTP/Telnet)
Firmware upgrade	Upgrade firmware via web browser or TFTP
Administration	Admin Password can be configured
System monitoring	Status in hand,useful statistic and Event log
Log	Supports local logs,logs host,logs file export
Reset	Reset or factory defaults
Backup	Restore settings & configuration of the device to local file
Physical Property
Temperature	Working:0°C~55°C
Humidity	Storage:-20°C to 70°C
Humidity	5%~95% (typical)
Package
wifi AP/CPE board
