The photocontroller JL-216B23 is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.

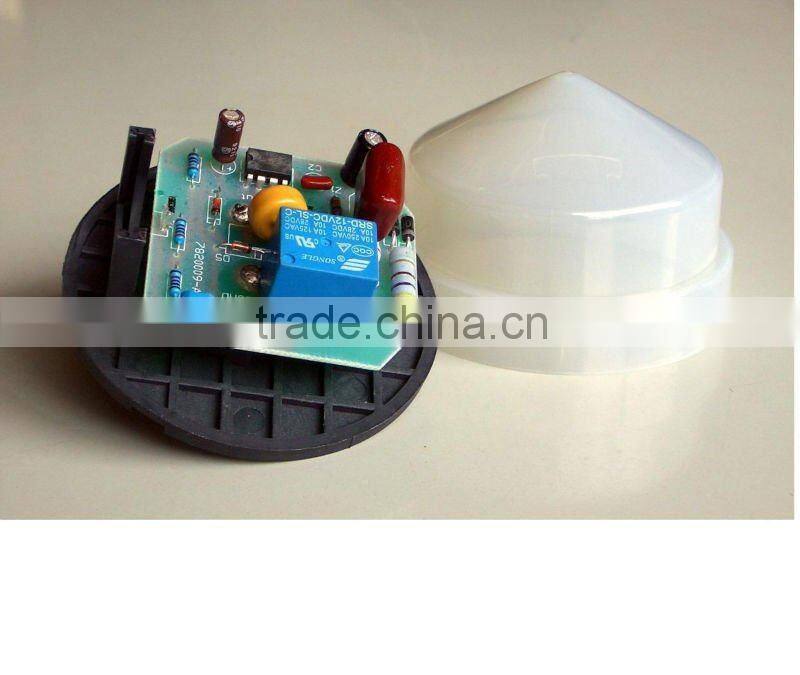

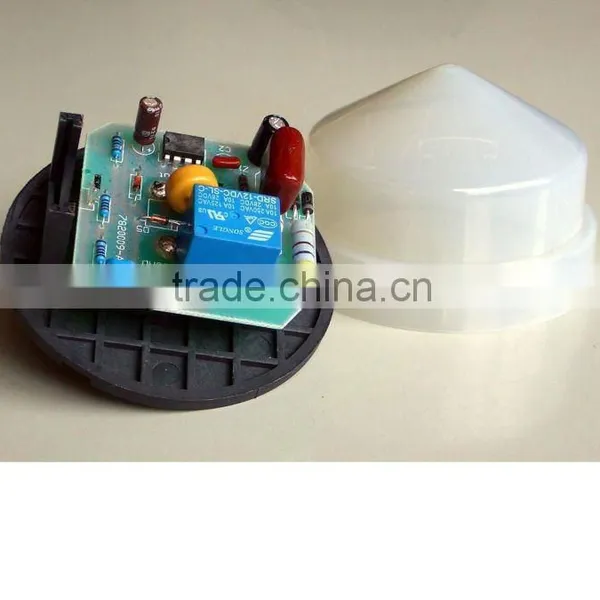

This product is designed with electronic circuits with sensor of phototransistor and a surge arrester (MOV) is provided for surge protection up to 460Joules/10000A.
Its Omni-direction design provides an easy-to-install feature.
Further, its inverse On/Off levels could save more power during morning time.
This product provides twist lock terminals meeting the requirements of ANSI C136.10-1996 and the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting UL773, 4th Edition, and BS5972:1980.
Rated Voltage |
220~240VAC |
Applicable Voltage Range |
200~260VAC |
Rated Frequency |
50/60Hz |
Rated Loading |
1000W Tungsten, 1800VA Ballast |
Power Consumption |
Approx. 4W |
On/Off Level |
100Lx On; 50Lx Off |
Ambient Temp. |
-40°C ~ +70°C |
Related Humidity |
100% |
Overall Size |
84(Dia.) x 66mm |
Weight Approx. |
90 grs |
