photoelectric switch1 Installation is simple
2 This product is Based on the nature of light intensity changes

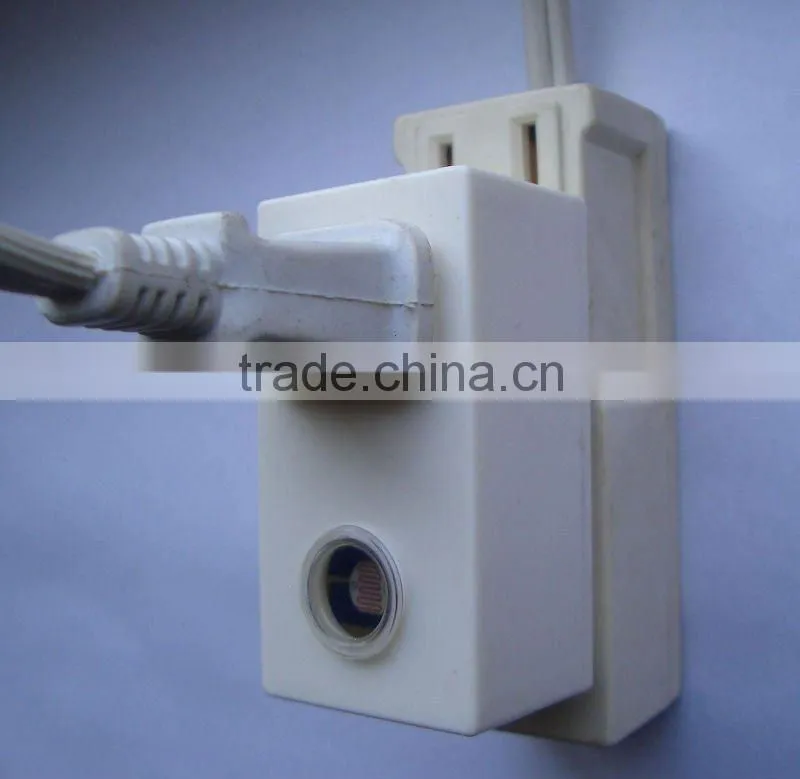

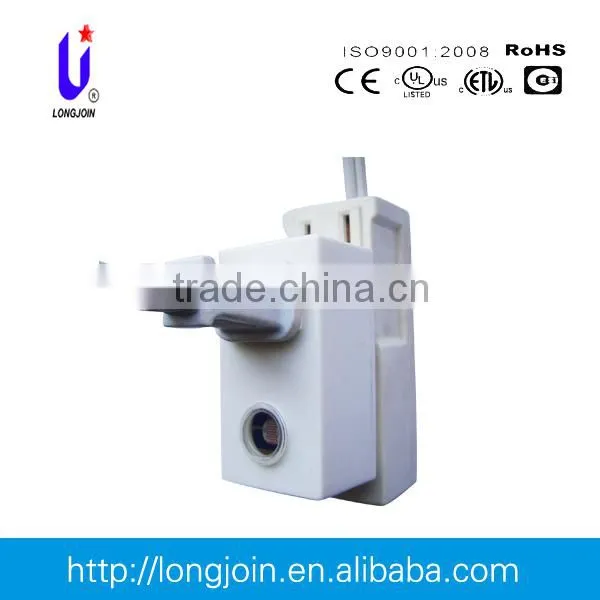

The photoelectric switch JL-601 is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.Because it is double foot socket, So extensibility is very strong, And feet to have the cent of size, Security is also have ascension.
This product is Based on the nature of light intensity changes, Realize the dayside extinguish luminite control functions.
Model |
JL-601A |
JL-601B |
Rated Voltage |
100-120VAC, 50/60Hz |
200-240VAC, 50/60Hz |
Rated Loading |
100W lamp |
|
Power Consumption |
Max1.5W |
|
On/Off Levels |
30-50Lx (identical degree of illumination) |
|
Ambient Temperature |
-20°C ~ +70°C |
|
Related Humidity |
99% |
|
Body Meas. |
60(long) x 32(wide) x 26(high)mm(Did not contain pins height) |
|
Foot length |
Standard double pins(Size feet) |
|
Weight |
31.5g |
|
photoelectric switch
