Home > Products > swinging screen > Xianchen Hot Selling High Quality Swing Vibrating Sieve

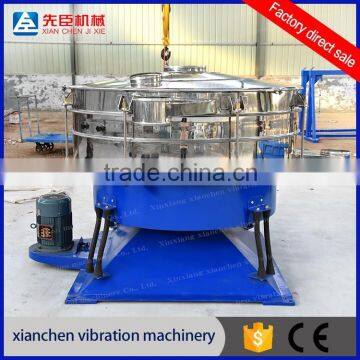

Xianchen Hot Selling High Quality Swing Vibrating Sieve
- 200 Set / Sets per Month
- Shanghai Qingdao or Dalian
- T/T L/C D/P D/A Credit Card PayPal
- Wholesale High Quality Made in China Swing VibratingScreen
- advanced technology anti-blocking low cost dust control 304 stainless steel swing vibrating sieve
- muiltiple deck mineral tumbler swing gyratory sifter separator sieve machine
- Powder vibration machinery swing screen from Xianchen Machinevibration machinery swing screen from Xianchen Machine
- Powder vibration machinery swing screen from Xianchen Machine
- Vibrating swinging screen for calcite calcium carbonate
Product Details
Place of Origin: | Hainan, China | Brand Name: | Xianchen | Model Number: | XC800-1S |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Packaging Details: metal powder swing screen :Standard container, nude packs or in bulk
Delivery Detail: about 20 days after receive your official order and the deposit
Product Description
Xianchen Hot Selling High Quality Swing Vibrating Sieve
1. Working principle- Swing Screen
Basic rotary motion is similar to hand screening .The eccentricity is adjustable from 25 to 40mm, low-speed V-belt drive is adjustable from 120 to 360rpm.Each product' dwell time can be adjusted in a radial and tangential angle ,towards the drive axis. Therefore, establishing the horizontal and throwing three-dimensional rolling movement, materials are evenly dispersed on the entire sieve surface from the center to the outer edge, and thus spread towards the axis by spiral movement. Small particles are then finished in the whole sieving process. The horizontal and vertical acceleration are increased with the movement of the particles. Then the particles which are close to mesh size will be successfully separated; The larger particles are transported to the exit, the flow can be controlled by a regulated oriented device at the exit, the oriented device is another factor which controls the dwell time of the materials.
2. Structure-Swing Screen
3. Details-Swing Screen
4. Advantages-Swing Screen
1.Low frequency, light load, the power system equipment cause little damage to the swing screen and the material
2. Mesh cloth not blocked, closed dustproof, safe operation.
3.Use silicone balls, rubber balls, ultrasonic and drum brush for clearing mesh cloth.
4. 5 times output per unit area than normal vibrating screen.
5. Basic rotary motion is similar to artificial sieving, eccentricity ratio is adjustable from 25 to 40mm, low speed V-belt drive is adjustable from 120 to 360rpm.
4. Technical parameter-Swing Screen
Model | Layer | Screen specifications | Screen box | motor | A | B | C | D | E | F | G | H | height | |
each floor | Travel | power | Speed | |||||||||||
(mm) | (kw) | (rpm) | (mm) | (kg) | ||||||||||
XC1000 | 1S | 730 | 20-80 | 1.5 | 960 | 900 | 1550 | 1270 | 650 | 150 | 1000 | 200 | 140 | 490 |
2S | 1410 | 535 | ||||||||||||
3S | 1550 | 580 | ||||||||||||
XC1200 | 1S | 1060 | 20-80 | 2.2 | 1000 | 1800 | 1320 | 700 | 150 | 1200 | 200 | 140 | 700 | |
2S | 1460 | 770 | ||||||||||||
3S | 1600 | 840 | ||||||||||||
XC1600 | 1S | 2000 | 30-90 | 3 | 1450 | 2250 | 1500 | 830 | 200 | 1600 | 300 | 160 | 980 | |
2S | 1660 | 1060 | ||||||||||||
3S | 1820 | 1140 | ||||||||||||
XC2000 | 1S | 3000 | 40-90 | 4 | 1600 | 2700 | 1630 | 950 | 250 | 2000 | 300 | 160 | 950 | |
2S | 1790 | 1140 | ||||||||||||
3S | 1950 | 1230 | ||||||||||||
XC2600 | 1S | 5150 | 40-100 | 5.5 | 1950 | 3300 | 1870 | 1080 | 250 | 2600 | 400 | 180 | 1900 | |
2S | 2050 | 2000 | ||||||||||||
3S | 2230 | 2100 |
5. Application-Swing Screen
- Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
- Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce.
- Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
- Medicinal industry: all kinds of medicine.
- Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.
Xinxiang Xianchen Vibration Machinery Co,. Ltd ,which is established in the year of 2009, located in China biggest machinery manufacture base Henan province, is a professional vibration machinery manufactures which specializes in the production of sieving equipments, conveying equipments, crushing equipments and feeding equipments as well as relevant parts. we committed to solve all kinds of sieving problem.
Our tenet: "market oriented, technology based, quality of survival, innovation and development ".We have passed ISO9001:2008 certification. Under the guide of international quality management system, our products have won not only good reputation in china but also applauses by foreign clients like United States, Germany, Turkey, Indonesia and so on.
6. Exhibition Visitors
7. Certificate
Before Sales:
1> Accept customer consultation, according to the customer demand; determine the scale of factory management, providing solutions.
2> For customer training technical personnel;
3> According to customer request, design and manufacture products;
Medium-sales:
1> Acceptance of the product;
2> Assist client protocol construction scheme;
After-sales:
1> On-site training personnel;
2> Appoint special after-sale service staff, arrived at the scene guide clients installation and commissioning;
3> Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.
If you are familiar with sieve machine, please shoose the style and decks directly.
If not, please provide the following information of yur material, so we can recommend the suitable sieve machine for you.
1. What material do you want screening?
2. What capacity do you need?
3. How about the moisture content?
4. How about the partical size distribution?
5. How many decks do you need ?
Xianchen sincerely treat every customer, hope to make friends with people from all over the world, and very looking forward to establishing a long-term win-win partnership with you!
Company Profile
Xinxiang Xianchen Vibration Machinery Co,. Ltd ,which is established in the year of 2009, located in China biggest machinery manufacture base Henan province, is a professional vibration machinery manufactures which specializes in the production of sieving equipments, conveying equipments, crushing equipments and feeding equipments as well as relevant parts. we committed to solve all kinds of sieving problem.
Xianchen has professional engineers and experienced employees to provide the manufacture, design, customized solution and after service for worldwide customers.
Our tenet: "market oriented, technology based, quality of survival, innovation and development ".We have passed ISO9001:2008 certification. Under the guide of international quality management system, our products have won not only good reputation in china but also applauses by foreign clients like United States, Germany, Turkey, Indonesia and so on.
xianchen sincerely treat every customer, hope to make friends with people from all over the world, and very looking forward to establishing a long-term win-win partnership with you.
