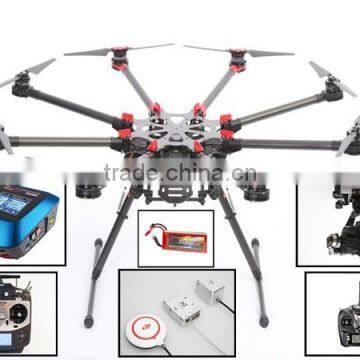

DJI S1000 COMBO D

Specifications

  It comes with:
DJI S1000 Premium Complete Kits + A2 +

5D(Mark III) Gimbal +

FUTAB 8FG Radio Control for the S1000 +

JR XG8 Radio Control +

6S 16800MAH 15C 2PCS Battery +

Sky RC T6200 Charger with 30A Power Supply

DJI’s Heavy Lift Octocopter, The Spreading Wings S1000, is here! Order today along with the A2, Zenmuse Z-15 5D, FUTAB 8FG Radio Control for the S1000, JR XG8 Radio Control, 6S 16800MAH 15C 2PCS Battery and Sky RC T6200 Charger with 30A Power Supply. DJI’s flagship multirotor flight controller and save on these special combo deals. Featuring a unique folding design for increased portability, the S1000 was designed for professional Aerial Photographers. The Premium version offers higher quality CNC machined components versus the standard edition.

professional aerial photography and cinematography. It is user friendly, safe, stabilized and easy to fly while its integrated design makes assembly and configuration simple and fast. Retractable landing gear, vibration dampers, small frame arm incline and minimalized gimbal mount allows for a clear 360 degree view from the camera. An integrated power hub with patented coaxial connectors, built-in high-speed ESCs and motors with high efficiency propellers ensure dynamic stability and maximized power efficiency. Used with a professional DJI multi-rotor autopilot system, the S1000 can hover and fly reliably making it ideal for photography and cinematography. CFrame

Diagonal Wheelbase  1045mm

Frame Arm Length  386mm

Frame Arm Weight (Including Motor, ESC, Propeller )  325g

Center Frame Diameter  337.5mm

Center Frame Weight (With Landing Gear Mounting Base, Servos)  1330g

Landing Gear Size  460mm (Length) ×511mm (Width) ×305mm (Height), (Top width: 155 mm)

Motor

Stator Size  41×14mm

KV  400rpm/V

Max Power  500W

Weight (With Cooling Fan)  158g

ESC

Working Current   40A

Working Voltage  6S LiPo

Signal Frequency  30Hz ~ 450Hz

Drive PWM Frequency  8KHz

Weight(With Radiators)  35g

Foldable Propeller (1552/1552R)

Material High strength performance engineered plastics

Size 15×5.2inch

Weight 13g

Flight Parameters

Takeoff Weight  6.0Kg ~ 11.0Kg

Total Weight  4.2Kg

Power Battery  LiPo (6S,10000mAh~20000mAh,15C(Min))

Max Power Consumption  4000W

Hover Power Consumption  1500W (9.5Kg Takeoff Weight)

Hover Time  15min (15000mAh & 9.5Kg Takeoff Weight)

Working Environment Temperature  -10 °C ~ +40 °C
