DJI IOSD MARK II ON SCREEN DISPLAY

DJI IOSD MARK II ON SCREEN DISPLAY thumbnail-1
DJI IOSD MARK II ON SCREEN DISPLAY thumbnail-2
DJI IOSD MARK II ON SCREEN DISPLAY thumbnail-3
DJI IOSD MARK II ON SCREEN DISPLAY photo-1
DJI IOSD MARK II ON SCREEN DISPLAY photo-2
DJI IOSD MARK II ON SCREEN DISPLAY photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Helicopter
Power:
Battery
Radio Control Style:
RC Hobby
Contact Supplier Request Quote Chat Now
Magicsky Middle East Fze
Payment & Shipping
Payment Methods:
Port of Shipment:
JABEL ALI DUBAI UAE
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Helicopter
Power Battery
Radio Control Style RC Hobby
Place of Origin United Arab Emirates
Brand Name DJI
Model Number DJI IOSD MARK II ON SCREEN DISPLAY

Specifications

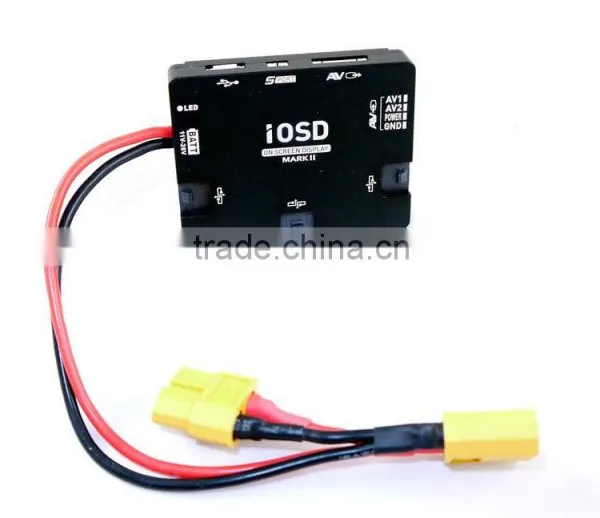

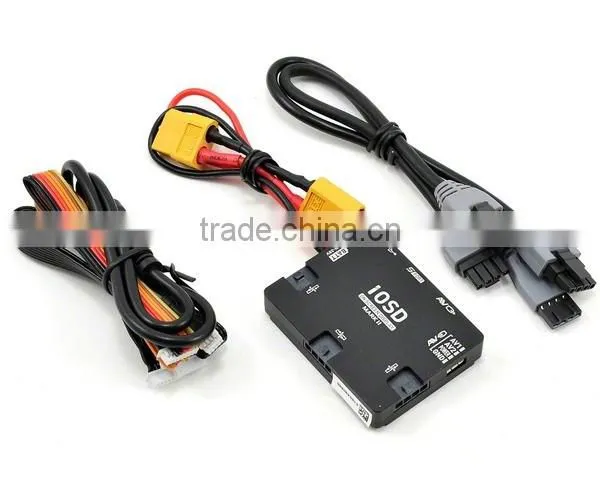

The iOSD is a video superposition system that designed for FPV flight by DJI.

DJI iOSD can collect video and iOSD information in real time, which will help you to obtain the aircraft status information during a FPV flight. It can display Power Voltage, Channel, Distance Aircraft to Home, Height, Control Mode, Fail-safe Mode, Pitch Attitude, Roll Attitude, Attitude Line, Flight Velocity, GPS Satellite, Video Input, Vertical Velocity etc. The iOSD and video information are superposed on the receiver, making iOSD data clearly visible and bringing you a more joyful flight experience.



Specifications:

Performance Parameter

Video Input Model PAL/NTSC

Video Output Model PAL/NTSC



Physical Parameter

Temperature -20℃~60℃

Size 52mm X 41mm X 11mm

Weight 56g



Hardware Supported

Voltage 3S~6S

Current(Typical Value) 60mA25.2V 103mA12.6V

Rated Power 1.25W

Controller Supported A2 WKM Naza-M Naza-M V2



Software Supported

Build-In Function

1.iOSD Information Transmission

2.Video Transmission, Two Video Signal Channels Input & Switch

3.Channel Switch Supported for the Wireless Video Transmitter Module specified by DJI

4.DJI Z15 Supported
