All day heating 30deg.C for 25~240cube meter water 12kw/19kw/35kw/70kw COP4.62 thermostat swimming pool heat pump split top fan

For newest DC Inverter Heat Pump ,pls enter the following Center:

SUNCHI Energy Company Brief

Jiangsu sunchi new energy Co.,Ltd., established in 2005, located in changzhou city , jiangsu province, Sunchi is an professional manufacturer focus on researching, production, service of air source heat pump , ground water source heat pump and solar air conditioner.

Sunchi has got the CE,CB,EN14511 certificate from TUV Lab, and also passed the Australia and New Zealand JAS-ANZ certificate, got ISO9001. ISO18001, ISO14001 and CCC certificate. Now applying European ErP Certificate from TUV lab. Currently the products has been exported to Western Europe, North Europe, South Africa, Middle-East, South American and Australia market.

Sunchi builded new 75,000 Watts multi-function Enthalpy Difference Laboratory In 2012 year, this lab using to strictly control qulity.

Sunchi company offer OEM , ODM co-operation for worldwild business partner , welcome join ours team.

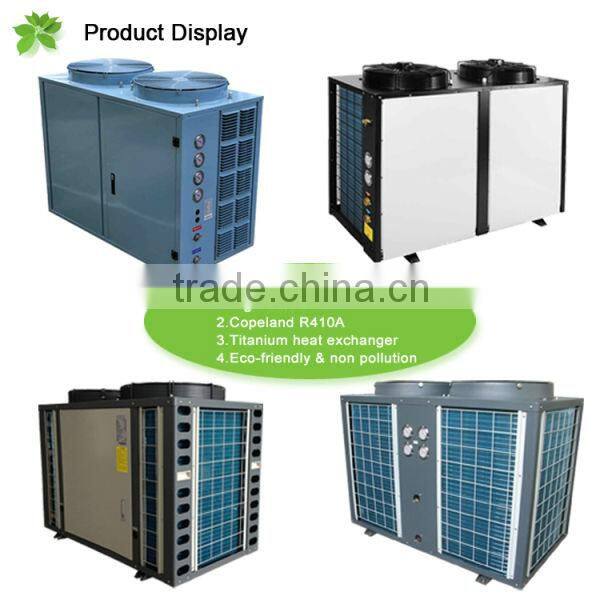

SUNCHI Product Introduction

SUNCHI Energy--- swimming pool titanium heat pump water heater

1>Full heating capacity rang : home small pool using 3kw /5kw /7kw /9kw

2>Commercial pool heating : 12kw /19kw /35kw /45kw /70kw /105kw

3>Supper COP 4.68, first class save energy

4>World famous scroll SANYO brand compressors, working stable and long using life

5>Digital LED display

6>Unit with heating + cooling function

7>Outlet temp. range 20℃-35℃ for swimming pool, 40℃-45℃ for SPA (Thermostat)

8>Strong anti-corrosion titanium tube heat exchanger

9>Intelligent Defrosting , electric expension valve deverse running

10>Monobloc type, flexible installation

11>High efficient and ECO friendly refrigerant , no pollution R410A

12>Multi self-protection functions: high & low pressure , high temperature, water flow and antifreeze,      overload ,over current and phase displace protection .

13>Combine with exist solar thermal heater as back up , green and save electricity

           3kw suit for : 6.85 cube meter pool , 5kw suit for : 11.5 cube meter pool

           7kw suit for : 15.98 cube meter pool , 9kw suit for : 20.56 cube meter pool

          12kw suit for : 27.43cube meter pool ,19kw suit for : 43.42cube meter pool

          24kw suit for : 54.82 cube meter pool , 35kw suit for : 79.85 cube meter pool

          45kw suit for : 102.82 cube meter pool , 70kw suit for : 159.95 cube meter pool

        105kw suit for : 239.92 cube meter pool

SUNCHI ENERGY sure all yours order 100% tested in the test room & online running test, and all products will be double checked by leakage detector before package.

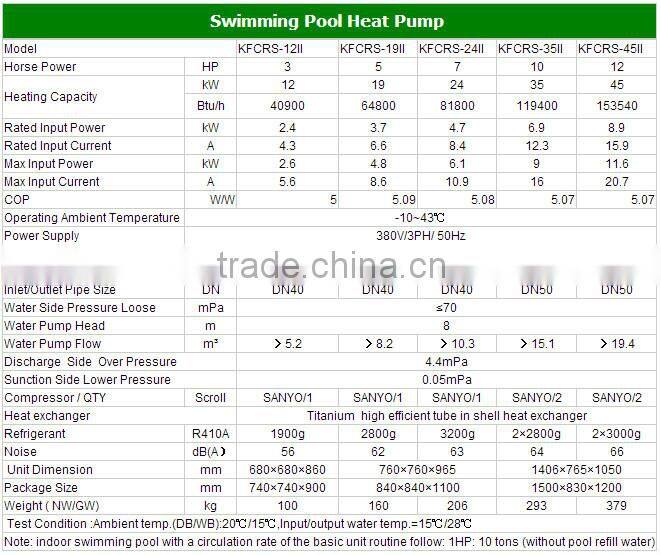

Parameter

SUNCHI Produce Line

1> Complying with ISO standard. Quality Ensured.
2> Using world famous Compressor,i.e. COPLAND, PANASONIC, MITSUBISHI,HITACHI, SANYO
3> Complete Inspection covering water system and electricity, ensuring stable hot water production.
4> Equipped with high efficiency tube in shell heat exchanger, finned heat exchanger or plate heat exchanger. All structure pipe and compressor with insulation to prevent heat loss.
5> Evaporator using surface modification of hydrophilic aluminous foil.
6> Electric Expansion valve with accurate flow control and gas distribution.
7> LCD display control panel. Intellectual control over water pump, water supplement, water discharge and defrosting system.

Package and Shipment

1> SUNCHI can sure shipment within 20  working days .

2>All spare parts together loading into package ,one time finished shipment to buyer

3>Take video for buyer before package to 100% sure buyer get product same as order , no any different

Services

1>SUNCHI can supply OEM/ODM service for customers.
2>Produce heat pump according to ISO items , design following customer's special demands,test as Europe EN14511 standard.
3>Supply ours business partner 1%~2% free spare parts according to order quantity.
4>General testing and operational test carried out for every unit before delivery.
5>18 month whole unit warranty period. Using life free technical support.
6>24 hours technical services online
7>Video teach how to install ,how to maintance

More information about SUNCHI heat pump, please visit our website: or contact us directly.

Wechat ID:  sunchienergy  ,   Skype ID:  sales02sc

We welcome you visit our factory to know us better.
