Help CenterOil Purifier Machine Specially for Turbine Oil Recycling
Related Products
-
High Vacuum Turbine Lube Oil Cleaning SystemUS$ 3,000 - 50,000MOQ: 1 Set -
Good Quality of Oil Purification Machine Specially for Turbine OilUS$ 3,000 - 80,000MOQ: 1 Set
-
Model TY Turbine Oil Purifier MachineUS$ 1,000 - 30,000MOQ: 1 Set
-
Model TY Turbine Oil Filtering MachineUS$ 3,000 - 50,000MOQ: 1 Set
-
Model TY Turbine Oil Filtering EquipmentUS$ 3,000 - 50,000MOQ: 1 Set
Specifications
The purifier can remove water, impurities, saponificated materials,acid, flue and so on from tubrine oilvacuum on line treat
Detailed Product Description

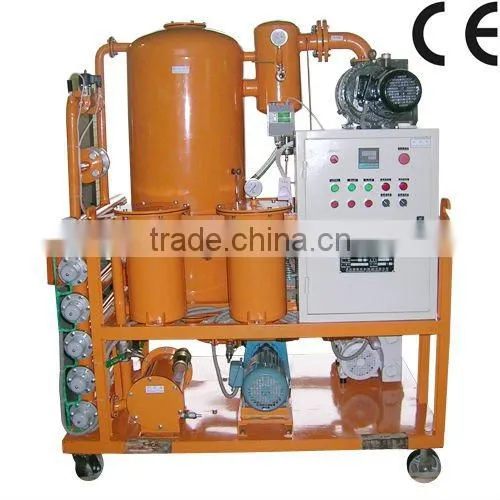

TY-II series oil purifier specially for turbine oil use the technologies, such as, contrifugation, expansion, condension, molecular adsorption, vacuum dry, mechanical filter, fuzzy control and so on.
Main Features:
1. Use patented technology to produce.such as high-efficitive separating tower, fuzzy control technology, dewatering and degassing very effectively.
2. It can purify the losing-efficient insulation oil and make the oil reach the new oil standard without power cut, changing the oil or using filtering papers.
3. Have the function of filling oil under vacuum condition.
4. Solve the problem of removing the acetylene
5. The purifier has large route, strong capability of holding dirt and can be used for a long time.
6. This machine is small, light weight and convenient.
7. The ultrasonic cleaning function can be selected
8.Have the multi-functions ofcontrifugal separation, molecular filter,condension de-watering and vacuum dry.
9.Have the functions of automatic burning protection and eliminating foam.
10.Operate steadly and the noise is specially low.
Advantages:
The machines can remove the water, impurities, saponificated materials,acid, flue,colority to make the emulsified turbine oil demulsified and transparent and reach the qualified standard. These machines are used in hydraulic power,thermal power plants and turbogenerators to purify the oils on line.
product name |
model | Main technical parameters | oil pipe (mm) |
voltage (V) |
total power (kw) |
LXWXH (cm) |
weight (kg) |
||||||
flow (L/h) |
working pressure (MPa) |
working vacuum(MPa) | particle count(NAS1638) | water content (μ/) |
acid number(mgKOH/g) | appearance | |||||||
| Oil Purifier Specially for Turbine Oil | TY-1000 | 1000 | ≤0.5 | 0.097 | 5/6 | ≤50 | 0.03 | Transparent | 25 |
220/380/ 415/3
|
16.19 | 160x105x160 | 700 |
| TY-2000 | 2000 | ≤0.5 | 0.097 | 5/6 | ≤50 | 0.03 | Transparent | 32 | 19.94 | 160x110x165 | 780 | ||
| TY-4000 | 4000 | ≤0.5 | 0.097 | 5/6 | ≤50 | 0.03 | Transparent | 38 | 26.29 | 180x120x178 | 960 | ||
| TY-6000 | 6000 | ≤0.5 | 0.097 | 5/6 | ≤50 | 0.03 | Transparent | 38 | 39.09 | 190x130x188 | 1000 | ||
| TY-8000 | 8000 | ≤0.5 | 0.097 | 5/6 | ≤50 | 0.03 | Transparent | 50 | 53.29 | 190x130x180 | 1100 | ||
| TY-10000 | 10000 | ≤0.5 | 0.097 | 5/6 | ≤50 | 0.03 | Transparent | 50 | 54.09 | 200x143x193 | 1200 | ||
| TY-12000 | 12000 | ≤0.5 | 0.097 | 5/6 | ≤50 | 0.03 | Transparent | 50 | 56.59 | 200x143x193 | 1300 | ||
| TY-16000 | 16000 | ≤0.5 | 0.097 | 5/6 | ≤50 | 0.03 | Transparent | 64 | 70.0 | 210x145x200 | 1550 | ||
