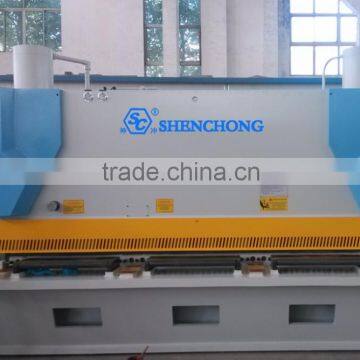

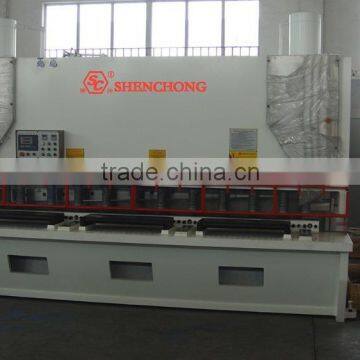

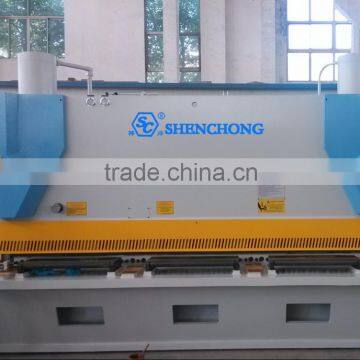

QC11Y-20x3200 Heavy duty sheet metal inox machine, large hydraulic guillotine shearing machine
USD $10,000 - $60,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
Omax Maxiem Pump Minor Maint 302700 Retainer Man 301873 301353 Ring Seal 303274 Major Maintenance Kit
-
Dual Port Swivels Seal Replacement Kit 308616 Package for Omax 308620-1 2 3
-
60KPSI SL-IV SL-V WK000216 05007786 Bushing Retainer Flange for KMT Water Jet Cutting
-
Waterjet Spare Parts 90K WK000190 189 20468617 20475871 Pneumatic Dump Valve
-
1-14493 UHP 90 degree 1/4 in. 94k Waterjet Repair Kit 015093-1 Swivel Rebuild Kit for Water Jet Cutt
-
Hydraulic Waste Car Body Shell Gantry Shear Machine for Scrap Recycling Center
Product Details
| Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | shenchong |
| Model Number: | QC11Y-20x3200 | Voltage: | 220V,380V | Rated Power: | customize |
| Certification: | CE, SGS, ISO | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Details of QC11Y-20x3200 inox machine, large hydraulic guillotine shearing machine
Welded steel plate construction, eliminate internal stress by heat treatment, with high strength and good rigidity.
Advanced integrated hydraulic system with an excellent reliability.
The rolling guide with 3-point support and improves the shearing quality.
Rapidly, accurately and conveniently adjusting the blade clearance with the handwheel.
The rectangular blades featuring long lifetime with 4 cutting edges
The adjustable rake angle can minmize plate deformation.
As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed
A light alignment device makes shearing much easier and more efficient
Technical data of inox machine, large hydraulic guillotine shearing machine
| Modeks | Mild Steel (450MPa) | Cutting Length (mm) | Back Gauge Range(mm) | Depth Of Thoat(mm) | Rake Angle Adjustment | Strokes Per Minute | Main Motor(KW) | L×W×H (mm) | Weight(T) |
| 6×2500 | 6 | 2500 | 750 | 80 | 0.5°1.5° | 14 | 7.5 | 3100×1725×1960 | 5.3 |
| 6×3200 | 6 | 3200 | 750 | 80 | 0.5°1.5° | 12 | 7.5 | 3650×1750×1980 | 6.5 |
| 6×4000 | 6 | 4000 | 750 | 80 | 0.5°1.5° | 10 | 7.5 | 4650×1780×2075 | 7.5 |
| 6×5000 | 6 | 5000 | 750 | 80 | 0.5°1.5° | 8 | 7.5 | 5650×1830×2250 | 10.5 |
| 6×6000 | 6 | 6000 | 750 | 80 | 0.5°1.5° | 8 | 7.5 | 6650×1890×2380 | 15.2 |
| 8×2500 | 8 | 2500 | 750 | 80 | 0.5°1.5° | 14 | 7.5 | 3100×1725×1960 | 6 |
| 8×3200 | 8 | 3200 | 750 | 80 | 0.5°1.5° | 12 | 7.5 | 3850×1750×1980 | 6.8 |
| 8×4000 | 8 | 4000 | 750 | 80 | 0.5°1.5° | 10 | 7.5 | 4650×1850×2075 | 8.5 |
| 8×5000 | 8 | 5000 | 750 | 80 | 0.5°2° | 7 | 15 | 5805×2000×2500 | 12.5 |
| 8×6000 | 8 | 6000 | 750 | 100 | 0.5°2° | 7 | 15 | 6805×2115×2715 | 19.8 |
| 10×2500 | 10 | 2500 | 750 | 120 | 0.5°2.5° | 10 | 15 | 3195×1800×2210 | 8.2 |
| 10×3200 | 10 | 3200 | 750 | 120 | 0.5°2.5° | 8 | 15 | 3895×1800×2240 | 9.15 |
| 10×4000 | 10 | 4000 | 750 | 120 | 0.5°2.5° | 6 | 15 | 4695×1930×2275 | 11 |
| 10×5000 | 10 | 5000 | 750 | 120 | 0.5°2.5° | 5 | 15 | 5905×2115×2715 | 16 |
| 10×6000 | 10 | 6000 | 750 | 120 | 0.5°2.5° | 5 | 15 | 6905×2215×2800 | 22 |
| 12×2500 | 12 | 2500 | 750 | 120 | 0.5°2.5° | 10 | 15 | 3195×1800×2210 | 8.7 |
| 12×3200 | 12 | 3200 | 750 | 120 | 0.5°2.5° | 8 | 15 | 3895×1800×2240 | 9.8 |
| 12×4000 | 12 | 4000 | 750 | 120 | 0.5°2.5° | 6 | 15 | 4710×1950×2485 | 13.4 |
| 12×5000 | 12 | 5000 | 750 | 120 | 0.5°2.5° | 5 | 18.5 | 5905×2115×2800 | 20 |
| 12×6000 | 12 | 6000 | 750 | 120 | 0.5°2.5° | 4 | 18.5 | 7000×2300×3100 | 29 |
| 16×2500 | 16 | 2500 | 750 | 120 | 0.5°2.5° | 8 | 15 | 3215×1880×2340 | 9 |
| 16×3200 | 16 | 3200 | 750 | 120 | 0.5°2.5° | 7 | 15 | 3915×1880×2445 | 11 |
| 16×4000 | 16 | 4000 | 750 | 120 | 0.5°1.5° | 6 | 15 | 4715×1950×2590 | 15 |
| 16×5000 | 16 | 5000 | 750 | 120 | 0.5°3° | 5 | 22 | 6000×2300×3000 | 23 |
| 16×6000 | 16 | 6000 | 750 | 120 | 0.5°3° | 4 | 37 | 7000×2300×3100 | 36 |
| 20×2500 | 20 | 2500 | 750 | 120 | 0.5°3° | 6 | 22 | 3215×1890×2465 | 11 |
| 20×3200 | 20 | 3200 | 750 | 120 | 0.5°3° | 5 | 30 | 4120×1890×2780 | 18 |
| 20×4000 | 20 | 4000 | 750 | 120 | 0.5°3° | 4 | 30 | 4925×2150×2900 | 21 |
| 20×5000 | 20 | 5000 | 750 | 120 | 0.5°3° | 4 | 37 | 6000×2300×3050 | 29 |
| 25×2500 | 25 | 2500 | 750 | 120 | 0.5°3.5° | 5 | 30 | 3435×2000×2710 | 15.3 |
| 25×3200 | 25 | 3200 | 750 | 120 | 0.5°3.5° | 5 | 30 | 4120×2200×3000 | 21 |
| 25×4000 | 25 | 4000 | 750 | 120 | 0.5°3.5° | 3 | 30 | 4950×2200×3150 | 26 |
| 30×2500 | 30 | 2500 | 750 | 120 | 1°3.5° | 4 | 30 | 3435×2020×2770 | 17 |
| 30×3200 | 30 | 3200 | 750 | 120 | 1°3.5° | 3 | 37 | 4200×2300×3200 | 23 |
Certifications:
Workshop:
Customers in our factory:
Working procedure:
Loading photos:
