Specifications
Hihg speed laminating machine1.specification:as follows
2.high quality and output
3.new technique
4.good service

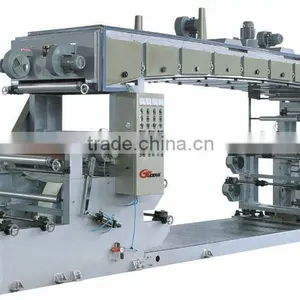

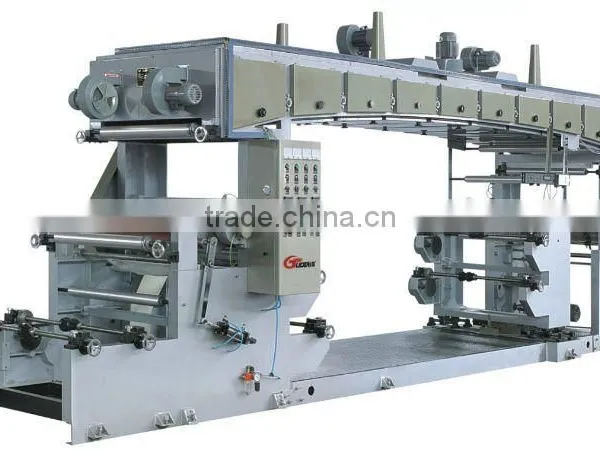

BGF Series Dry Laminating Machine
character
Machines in this series are suitable for composition of all kinds of materials in packing industry such as plastic-plastic, paper-plastic and aluminum-plastic compositions.
1. Double frequency conversing synchronic timing is adopted for entry port of main machine, making more stable operation.
2. Two means of glue applying, cobwebbing roll sizing and rubber roll gluing.
3. Oil warming system for composite reel, constant temperature control
4. Double reeling and double unreeling, tension magnetic powder for reeling and unreeling, photoelectric error correction for unreeling.
5. 4sect heating in drying tunnel, possible to control temp erature by segments, initiative guiding roll in box
BGF Series Dry Laminating Machine
Model |
BGF-600 |
BGF-800 |
BFG-1000 |
Width of laminating |
600mm |
800mm |
1000mm |
Laminating stratification |
2layer |
2layer |
2layer |
Diameter of Roll material |
10-70m/min |
10-70m/min |
10-70m/min |
Oven temperate |
600mm |
600mm |
600mm |
Total Power |
110°C |
110°C |
110°C |
Total Power |
36kw |
44kw |
44kw |
Weight |
4000kg |
5400kg |
5400kg |
overall Dimension |
7500×1700×2700mm |
7500×2100×2700mm |
7500×2100×2700mm |
BGF Series Dry Laminating Machine
