Specifications
Hihg speed laminating machine1.specification:as follows
2.high quality and output
3.new technique
4.good service

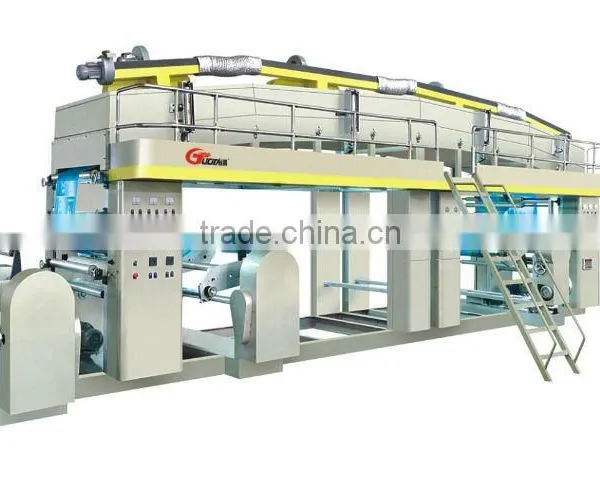

QDF Series of Photoelectric Errorcorrection High-speed Laminating Machines
character:
Use
Machine in this series are suitable for reel-shape materials such as BOPP, PET, CPP, aluminum foil and paper,2-layer repetitious laminating, high strength production, producing high-quality compound materials with high freshness preserving, and boiling & steaming resistance
Characteristics
1. double frequency conversing synchronic timing is adopted for entry port of main machine, making more stable operation
2. two means of glue applying, cobwebbing roll size and robber roll gluing
3. top air style oven open, initiative guiding roll in oven
4. 4-sect heating in drying tunnel, possible to control temperature by segments
5. photoelectric error correction for unreeling, with automatic tension
6. reeling and unreeling by tumbling dual-station mechanism, realizing auto material change without machine halt
7. oil warming system for composite reel, constant temperature control
QDF Series of Photoelectric Errorcorrection High-speed Laminating Machines
Model | QDF-600 | QDF-800 | QDF-1000 |
Width of laminating | 600mm | 800mm | 1000mm |
Laminating stratification | 2layers | 2layers | 2layers |
Laminating speed | 10-120m/min | 10-120m/min | 10-120m/min |
Diameter of roll material | Φ800mm | Φ800mm | Φ800mm |
Oven temperate | 120°C | 120°C | 120°C |
Total power | 44kw | 48kw | 52kw |
Weight | 7500kg | 8200kg | 8900kg |
Overall dimension | 9600×2400×3300mm | 9600×2650×3300mm | 9600×2850×3300mm |
QDF Series of Photoelectric Errorcorrection High-speed Laminating Machines
