Specifications
Full Automatic Plastic Hand Bag Making MachinePaper Bag Making Machine;Bag Making Machine;
Non-woven Bag Making Machine

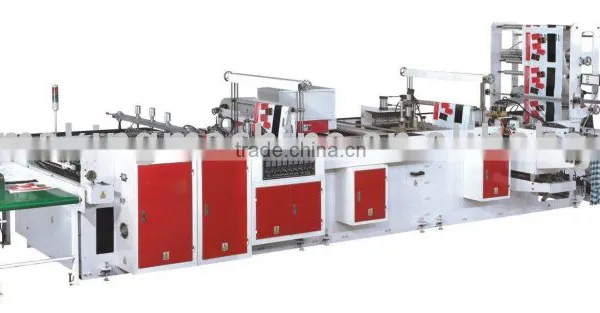

Full Automatic Plastic Hand Bag Making Machine
Paper Bag Making Machine;Bag Making Machine;
Non-woven Bag Making Machine
Application:
This machine has four functions (soft hand bag,Patch bag,rope bag,pre-folded punching bag).It is coupled with machinery,light,electronic,pneumatic integration. Super technology and high-science development contribute to plastic industry a lot.
Performance and Characteristics:
1.Suitable for side-seal high & low pressure plastic hand bag (BOPP).
2.Exclusive design of large liquid-crystal screen, special servo motor for feeding, PLC integrated control system.
3.Fully-automatic high-speed achievement from roll to hot-melting for soft hand ropes and stick pieces, strong support force
4.Invention and design of printing magic eye, high-tech computer control and easy operation.
5.Design of pre-heated knife with special lines, heating on both sides, strong fusion, invariable bag shape and easy adjustment.
6.The best seal knife is adopted, invariable after high-temperature heat, reasonable structure design, fast turn-over, clean and simple.
7.Design if thermal punching, easy-cut, automatic waste fall-off
8.Folding equipment for sheet film is optional.
9.Plastic hard handle devices.
Technical Variables:
| Type | GT-800 | |
| Length of bag-making | 250-750mm | |
| Width of bag-making | 250-600mm | |
| Pre-folded edge | 50-75mm | |
| Bottom-inserted edge | 20-70mm | |
| Thickness of film | 0.04-0.1mm | |
| Speed of bag-making | Soft hand bag | 60bags/min |
| Patch bag | 60bags/min | |
| Rope bag | 70bags/min | |
| Pre-folded punching bag | 75bags/min | |
| Total power | 11KW | |
| Machine dimension | 8200*3100*1870mm | |
| Machine weight | 3500kg | |
| Air compressor not | 7HP | |
