Specifications
Computer Control High-speed Vest Rolling Bagbag making machine
rolling bag machine
t-shirt Bag Making machine

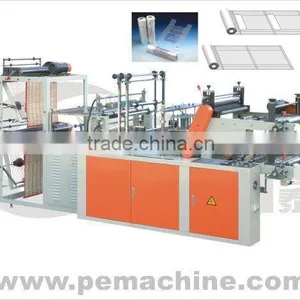

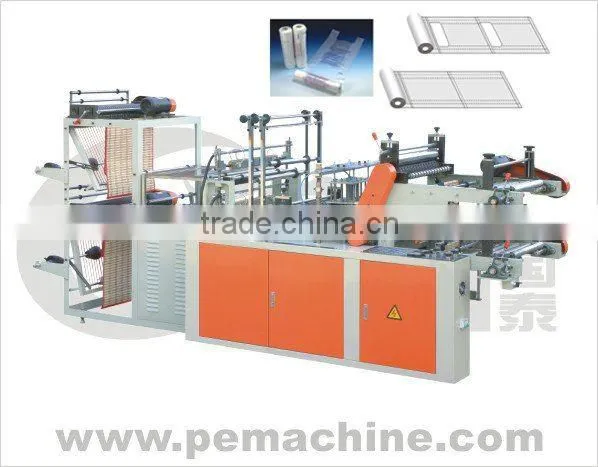

Computer Control High-speed Vest Rolling Bag making Machine
Computer Control High-speed Vest Rolling Bag
bag making machine
rolling bag machine
t-shirt Bag Making machine
Features:
This Full Automatic High Speed Vest Rolling Bag Making Machine is a specially-designed point-cut rolling dual-purpose for vest & flat bags,is controlled by a computer, the step(servo) setting length system reduces the sealing-cutting dimensions errors, and the installation of photoelectric eyes track help make the position of figure of printing bags accurately, the computer numerical control can be selected to adjust the length of bag the machine will automatically stop and sound a warning if there is something wrong with the printing bags.
Use:
The high and low density polyethylene film bags produced by the machine are applied to shopping in the supermarkets, shops and markets.
Computer Control High-speed Vest Rolling Bag making Machine
Main Technical Variables:
| Model | DZB-500 | DZB-600 | DZB-800 |
| Max.Width of bag-making(mm) | 400 | 500 | 700 |
| Max.length of bag-making(mm) | 1200 | 1200 | 1200 |
| Bag-making Thickness | 0.008-0.15 | 0.008-0.15 | 0.008-0.10 |
| Speed of bag-making(pc/min) | 140-200 | 40-120 | 40-120 |
| Power of motor(kw) | 1.1 | 1.1 | 1.5 |
| Electric Heating power | 1.2 | 1.6 | 2.2 |
| Packing Dimensions(L x w x h)mm | 3600X1200X1700 | 3400X1300X1700 | 3600X1500X1700 |
| Machinery weight (kg) | 800 | 900 | 100 |
Computer Control High-speed Vest Rolling Bag making Machine
