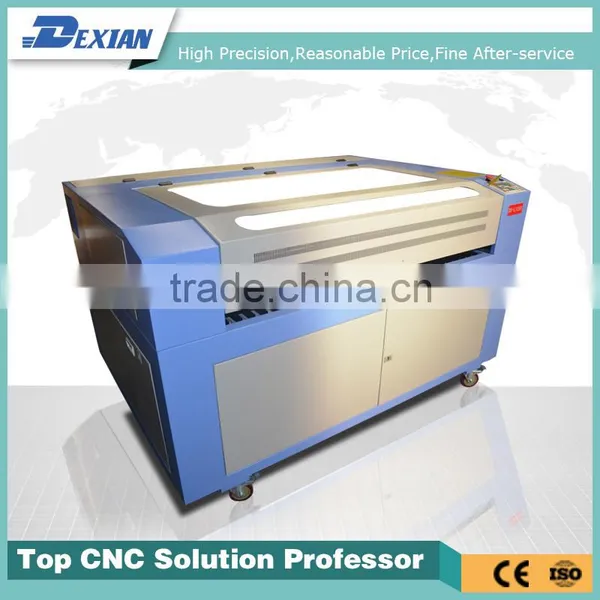

DX 1390 laser cutting machine price
Feature of laser cutting machine:
1. USB Interface, U-Flash Disk Supported, Machine will read files from memory stick, you can work even without a computer.
2. RECI co2 laser tube,the best brand in China,its lifetime is 3 times longer than common laser tube.
3. Aluminum knife table / honeycomb table for option.
4. CorelDraw, AutoCAD Software Included. RUIDA software also help Smooth and Precise Engraving and Cutting.
5. Red Dot Pointer. Which will tell you the laser direction.
6. Raster/Vector Color Mapping. Change your engraving speeds and power by using color settings.
7. Irregular Rotary Attachment, Engrave any oval object. (for option)
Parameter of laser cutting machine:
Name: |
DX- 1390 |
Processing area |
1300mm*900mm (4feet*3feet) |
Laser power |
60W,80W,100W,130W,150W |
Laser type: |
Sealed Co2 glass laser tube |
Cooling mode: |
Water cooling and protection system |
Resetting positioning accuracy: |
±0.01mm |
Compatible Software: |
Laser cut 5.3, CorelDraw AutoCAD Photoshop |
Whole machine size: |
1450mm*1200mm*1000mm |
Engraving speed |
1-6000mm/min |
Cutting speed |
1-1000mm/min |
Cutting thickness |
0-25mm acrylic (others determined by materials) |
Resolution ratio |
≤0.0125mm |
Position system: |
Red dot |
Interface: |
USB |
Minimum shaping character |
letter 0.5mm, Chinese 0.5mm |
Support graphic format |
DST, PLT, BMP, DXF |
Gross power |
1000W |
Driving mode: |
DC0.8A 24V stepper motor |
Cooling mode: |
Circulation water cooling |
Working voltage: |
AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
Operating temperature |
0-45C |
Operating humidity: |
5-95% |
Driving system |
stepper |
Option: |
Up and down working table Rotary attachment for column materials |
Packing: |
wooden box |
Guarantee time: |
1 year, laser tube 8 months |
Operation: |
Video to tell customer how to operate the machine |
Net weight: |
190KGS before package, 240KGS after package |
Free accessories of laser cutting machine:
Software,Manual Book,CD Videos,air pump,key of control panel,air exhaust fan,chiller,cable,etc.
Machine parts of laser cutting machine:
Application of laser cutting machine:
Material |
Cut |
Engrave |
Acrylic | Plexiglass | Pmma| Perspe |
♦ |
♦ |
Organic board | Double color plate |
♦ |
♦ |
Wood | Bamboo | Veneer | MDF |
♦ |
♦ |
Leather |Pig leather |Cow Leather |sheep leather |
♦ |
♦ |
Fabric |Cloth | Textile |
♦ |
♦ |
Wool Felt |
♦ |
♦ |
Paper | Cardboard | Chipboard|Press Board |
♦ |
♦ |
Ceramic | Tile| Marble |
|
♦ |
Plastic |
♦ |
♦ |
Fiber glass |
♦ |
Sample of laser cutting machine:
Warranty and service of laser cutting machine:
Guarantee: 12 months for machine(except laser tube and lens). Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Company information of laser cutting machine:
