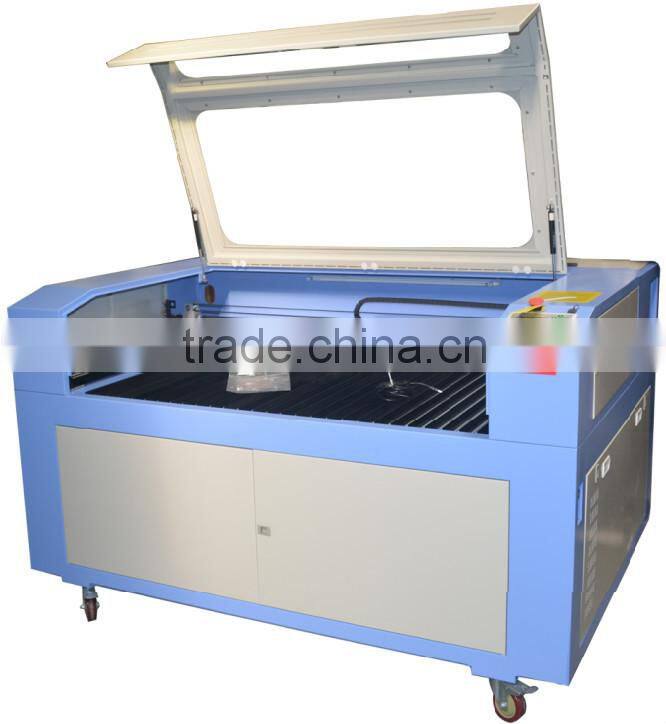

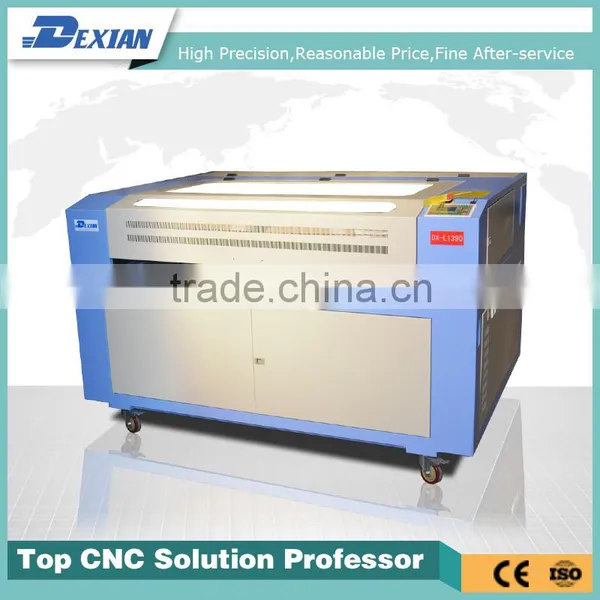

DSP control co2 fabric laser cutting machine 1390 with 100w RECI laser tube
(For more size,we have:1400*1000mm, 1600*1000mm, 1300*1800mm, 1300*2600mm; we also have smaller size like 300*200mm, 400*500mm, 600*400mm, 600*900mm and so on)
Features of machine:

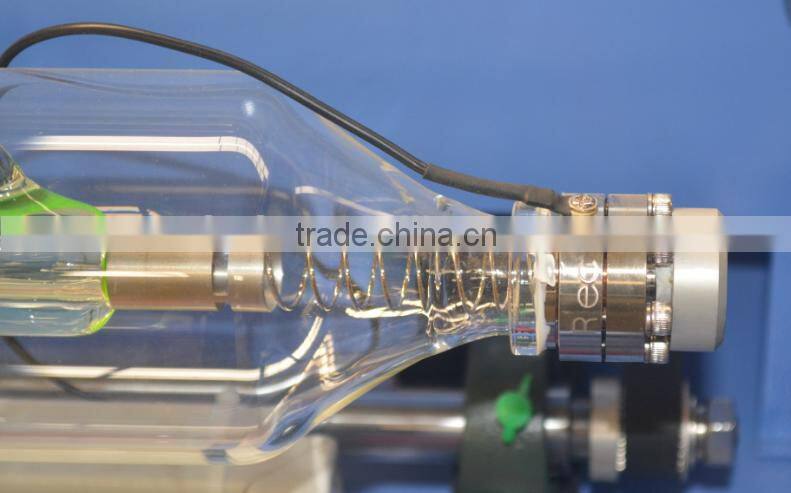

1. For laser tube,we use RECI brand,very popular among customers,its lifetime is 3 times longer than common laser tubes.
2.We use stepper motor,providing enough power,ensuring high speed of machine.

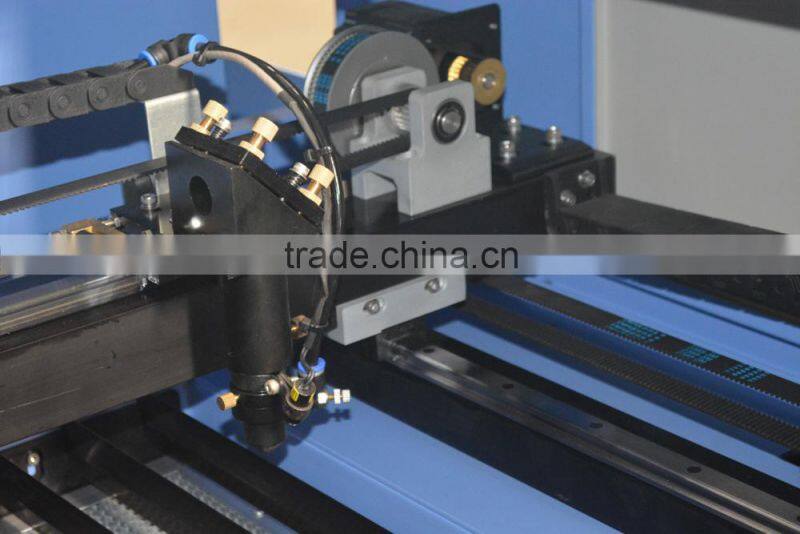

3.We use Taiwan HIWIN linear rail for transmission,to ensure high precision,faster speed,lower noise,and its lifetime is 10 times longer than common rail ways.

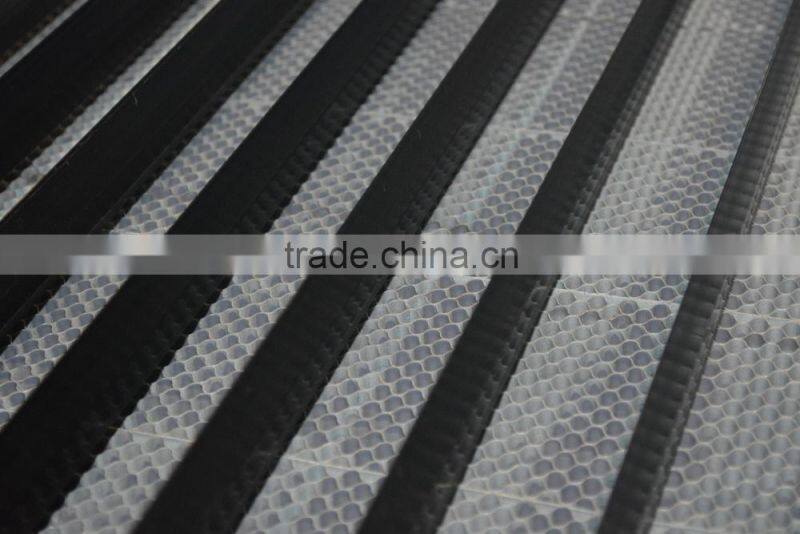

4.we have two kinds of worktable: Aluminum knife table for hard material like wood,acrylic,helping small cutted pieces fall off; and honeycomb worktable for soft material like leather,cloth,to keep the material as flat as possible,ensuring cutting effect.
If you work on both hard and soft material,we can make the table with double use.

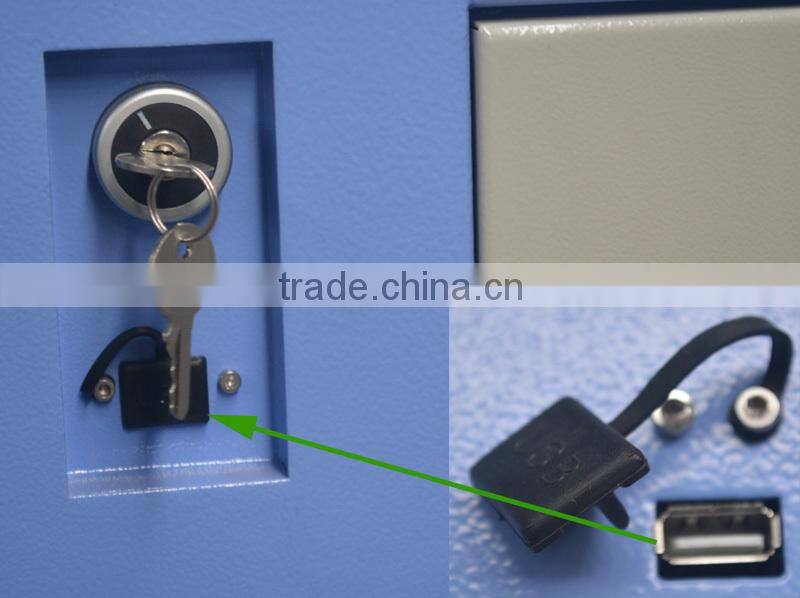

5.The control system is DSP,supporting offline work. There is USB interface on the panel,so it support U disk,very convenient.
6.We use laser cut 5.3 software,very popular in the market.
7.Red dot will help position the laser,protecting operator.
Photos of details:
Application:
Applicable materials:Non-metal materials such as acrylic, double color board, Plexiglas,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries: Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry
Product samples:
Parameter:
Name: |
DX-L1390 |
Processing area |
1300mm*900mm (4feet*3feet) |
Laser power |
100W RECI |
Laser type: |
Sealed Co2 glass laser tube |
Cooling mode: |
Water cooling and protection system |
Resetting positioning accuracy: |
±0.01mm |
Compatible Software: |
Laser cut 5.3, CorelDraw AutoCAD Photoshop |
Whole machine size: |
1450mm*1200mm*1000mm |
Engraving speed |
1-6000mm/min |
Cutting speed |
1-1000mm/min |
Cutting thickness |
0-25mm acrylic (others determined by materials) |
Resolution ratio |
≤0.0125mm |
Position system: |
Red dot |
Interface: |
USB |
Minimum shaping character |
letter 0.5mm, Chinese 0.5mm |
Support graphic format |
DST, PLT, BMP, DXF |
Gross power |
1000W |
Driving mode: |
DC0.8A 24V stepper motor |
Cooling mode: |
Circulation water cooling |
Working voltage: |
AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
Operating temperature |
0-45C |
Operating humidity: |
5-95% |
Driving system |
stepper |
Option: |

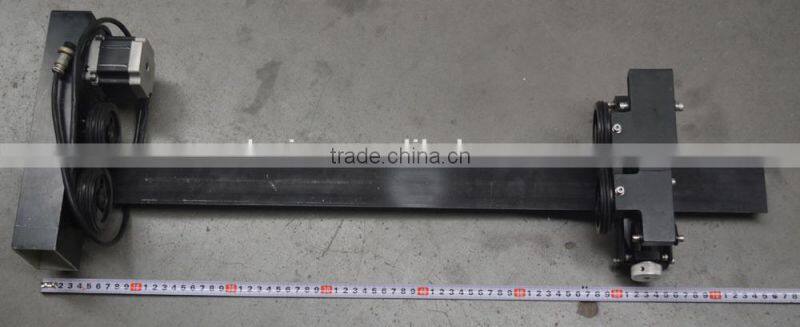

Up and down working table Rotary attachment for column materials |
Packing: |
wooden box |
Guarantee time: |
1 year, laser tube 8 months |
Operation: |
Video to tell customer how to operate the machine |
Net weight: |
190KGS before package, 240KGS after package |
The accessories included:
1) 1*Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1*Exhaust fan with Tube ducts (install inside machine)
3) 1*Industrial water chiller
4) 1*USB Cable (connecting PC and laser)
5) 1*DVD (including software, user manual, guiding videos etc)
6) 2*Power cables
7) 1*Tool box

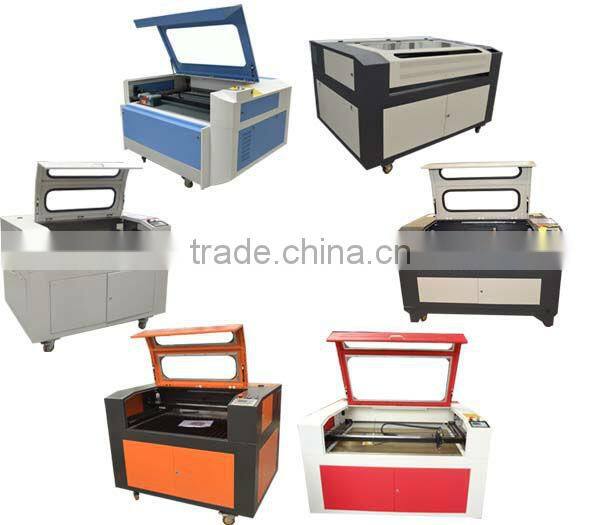

More models:
Our company has obtained CE, FDA and ISO certificates.
We promise to provide high quality product with competitive price!!
Welcome to contact me:
Skype: dx_emily
whatsApp/Mobile: +8618615679772
QQ: 18615679772
Wechat: 18615679772
Trade Manager: cn1001282611
