Advertising Acrylic laser cut 5.3 software DX-L960
CNC laser cutting features:
1,The machine is equipped with a precision water cooled CO2 laser that will engrave almost anything on almost any surface. The machine can also be used for cutting many different materials.
2,With the Cylinder Rotary Attachment, you can engrave any cylindrical object, such as cup, brush pot, musical instrumentand so on.
3,It supports multiple graphic formats, such as PLT / DXF / BMP / JPG / GIF / PGN / TIF and so on.
4,This machine is equipped with DSP Control System for CorelDraw/AutoCAD and other advanced software.
5,This machine is compatible with WIN7, Vista, XP and WIN2000.
Applicable materials:
Non-metal materials, such as acrylic, double colour board, plexiglas, common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden products, garment and leather, embroidery, decoration and upholster industries.
Technical Parameters:
Laser power : | 50 W EFR(optional) |
Laser tube life Span | 2500 working/hours. |
Applicable Materials | Acrylic,Glass,crystal,wood,leather,cloth,rubber,marble,ceramic,etc. |
Working area: | 400*500 mm |
Max moving speed: | 1500mm/s |
Laser energy control | 1-100 set by hand or software |
Worktable: | Up & down working table |
Locating precision: | 0.01 mm |
Min shaping character: | Character: 3*3 mm,; letter: 2*2 mm |
Operating temperature: | 5°C-35°C |
Resolution ratio: | 4500 dpi |
Laser type: | Hermetic CO2 glass tube |
Power supply: | AC220±1050 HZ/AC110±1050 HZ |
Control configuration: | DSP. |
Data transfer interface: | USB (offline). |
USB Ports | 2 |
System environment: | WINDOWS 2000/WINDOWS XP/MAC/Vista |
Cooling way: | Water cooling and protection system |
Graphic format supported: | The file which Corel Draw, Photoshop, AutoCAD can identify (BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG, DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX). |
USER MENU | Full English. |
Package Inclusion | Software, VIDEO USER MENU CD, Air pump gun, Power cables, USB cables, Water tank, Water Pipe, Smoke Vent-pipe, Air Blow Pipe ,exhaust fan, Tools bag |
Memory | 64 MB |
Display screen | LCD(SIZE 70*40 mm) |
Option parts | high-grade cooling system/double-head/cylinder rotary / irregular rotary / up & down table/ knifes table |
Warranty : 2 years.
1) in the first year, we will send the parts to you for free.
2) in the second year, we will charge for the shipping,but the parts are still free.
3) from the third year, we will charge for replacing.
but the warranty of the lens and laser tube is 3 months.
Selection of other models:

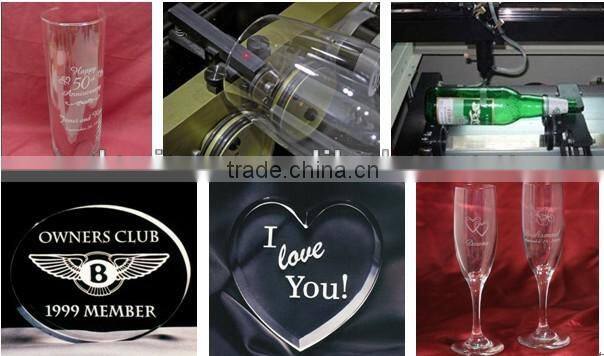

Samples:
We are Professional CNC Router and Laser Machine Manufacturer and sincerely seeking for Global Agent & Distributors.
