hot sales!!!factory price!!!

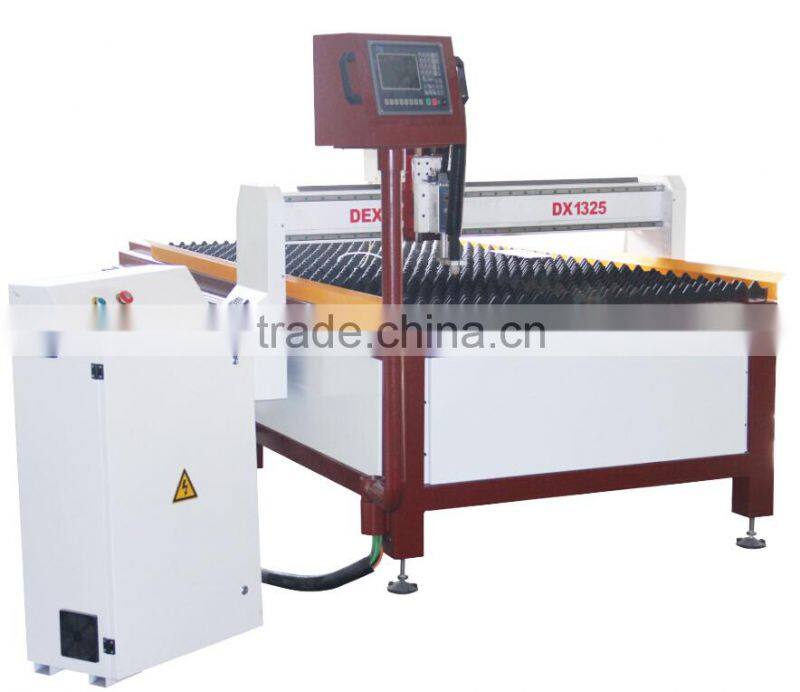

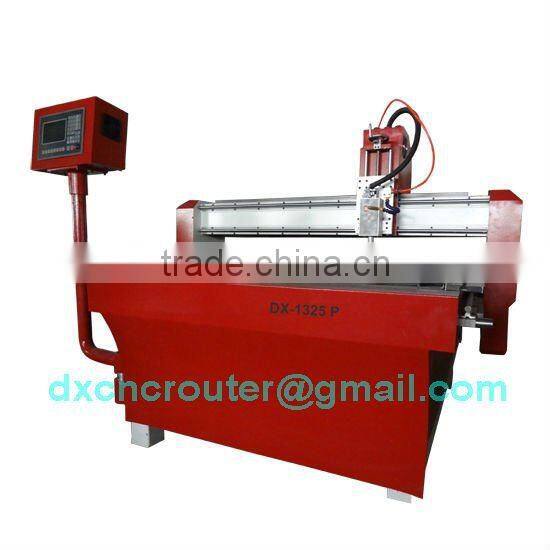

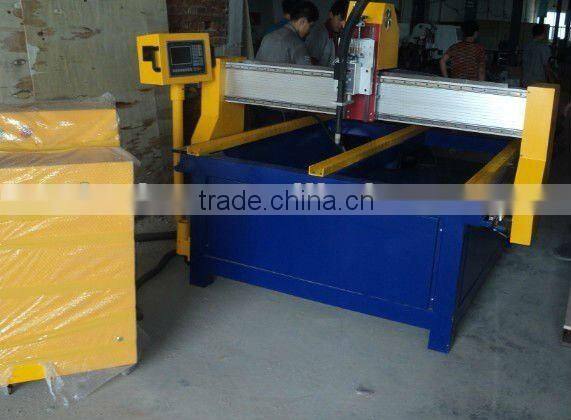

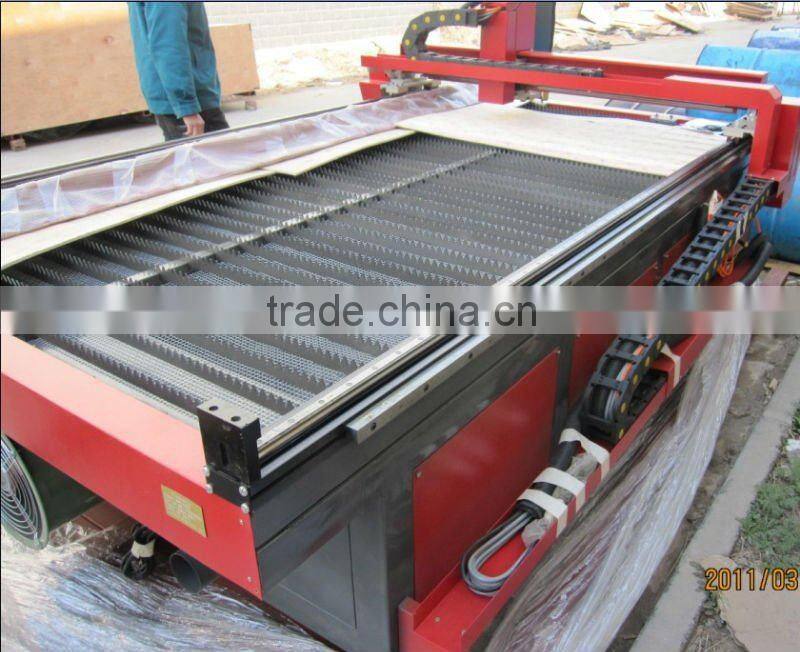

cnc plasma and flame cutting machine DX- 1325 plasma cutting machine with 65A/100A plasma generator and factory price
(Option Model :DX-1212,DX-1224,DX-1325,DX-1530, DX-2030 DX-1836 or other model,OEM and customization are available)
| |
| | |
Description | parameter |
working area | 1300mm * 2500mm |

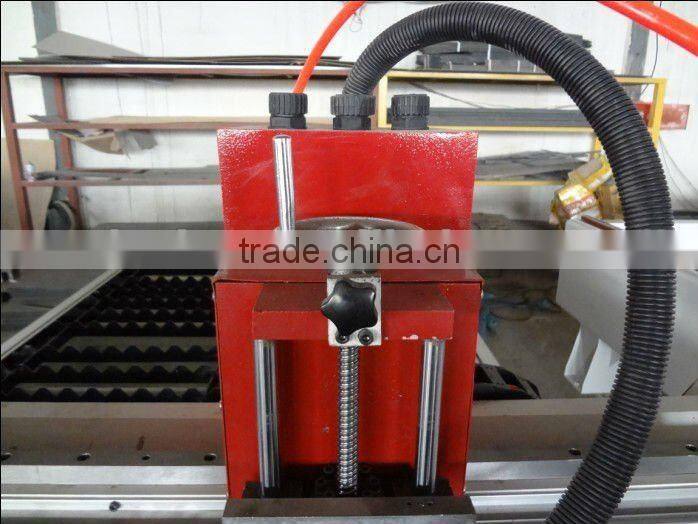

Transmission | X, Y axis, High precision Rack Gears, Z axis, imported Ball Screw |
X, Y, Z Rail | HIWIN Square Rail |
Frame | Square tube Integral structure |
Cutting Thickness | 3-16mm |
Cutting Speed | 0-8000mm/min |
Moving Speed | 0-50000mm/min |
Plasma Generator | 65A OR 100A(optional) |
Motor | Stepper motor |

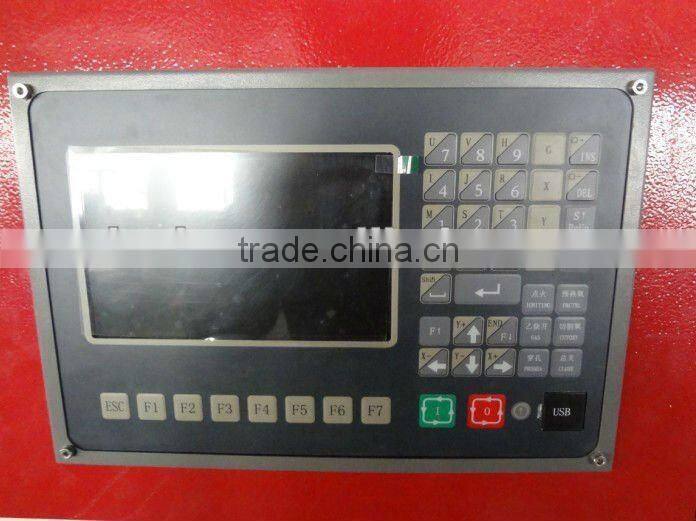

Control system | NC Studio or DSP |
Document transmission form | USB interface |
Working voltage | 3 phase 380V 50HZ/60HZ |
Software | ARTCAM, Type 3 |
File transfer | USB interface |
Arc | Untouched arc striking |
Plasma cutter working materials:
Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium pates and the other nonferrous metals
Plasma cutter features:
1, Light crossbeam design, good rigidity, light weight and tiny moving inertia.
2, Y axis adopts double motors with double drivers. XYZ axis adopt square rail, double four ball slider, moving smoothly, with high accuracy.
3, excellent performance on cutting illuminated letters for advertising and channel letters on metal surface board
4, Working together with other advertising machines, such as CNC Router and so on, improving working efficiency
5, small cutting gap, no residua
6, High cutting speed, high accuracy and low cost
7, Advanced CNC control system, Auto Arc, arcing success rate over 98%
8, Support G code files of ARTCAM, Type 3 software. Also support DXF files of AUTOCAD by transfer software. Control system supports U disk file transfer, easy operation
9, Adopt well know plasma power supply and cutting torch.

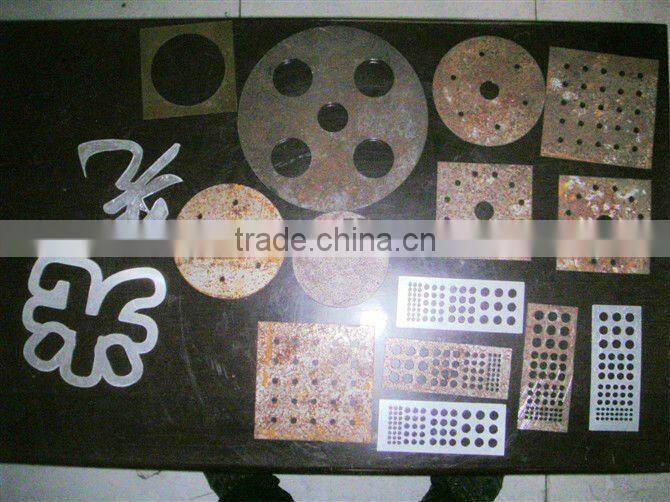

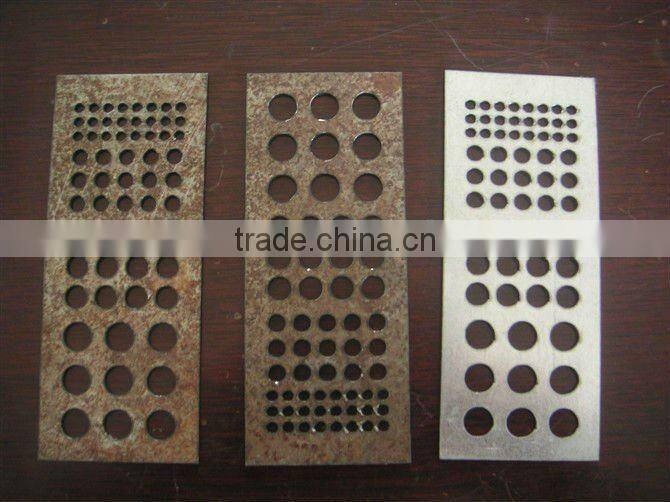

PLASMA CUTTING MACHINE SAMPLES:
| |
| | |
| | |
We are always here to provide the Inexpensive but high-quality products.
Our slogans are:
Dexian (serves) arrived with your need
Dexian (produce) started with your need
Dexian (R&D)changed with your need
