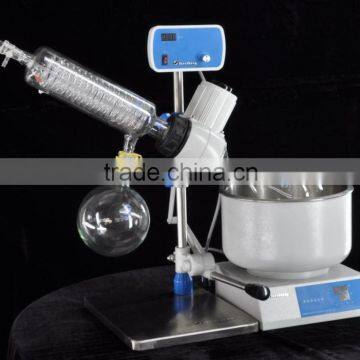

2L Rotary Evaporator - Shensheng - Diagonal Condenser

2L Rotary Evaporator - Shensheng - Diagonal Condenser thumbnail-1
2L Rotary Evaporator - Shensheng - Diagonal Condenser photo-1
US$ 630 - 650 MOQ: 1 Set
Key Specifications
Get Latest Price
Application:
Pharmaceutical Processing
Power Source:
Electric
Process:
Rotary
Contact Supplier Request Quote Chat Now
Shanghai Shensheng Biotech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Pharmaceutical Processing
Power Source Electric
Process Rotary
Place of Origin Shanghai, China
Brand Name Shensheng
Model Number R201

Specifications

Rotary evaporator, 2L
-Borosilicate Glass (G3.3)
-Electronic Stepless, PTFE seal
-<-0.098MPa
-Condensing Area: 0.14sqm

Description:

Rotary evaporator can form film to perform condensation, distillation and menstruum recycle under negative pressure and constant temperature. Rotary evaporator is especially applied in condensing, crystallizing and separating heat-sensitive material and recycling menstruum. Moreover, new functions of reflux extraction are added to new model of our products.



Features:

1. AC Induction Motor with Stepless speed regulation, no dynamo brush, spark-free;

2. G3.3 Pyrex Glass (Borosilicate) with good physical and chemical properties;

3. Efficient Diagonal Condenser (0.14sqm condensing area);

4. Modular design with high compatibility and easy maintenance;

5. Excellent seal system with high resistance to erosion and reachable vacuum pressure of over -0.096MPa;

6. Base structure, bath, shaft and axle made of SUS304 stainless steel with excellent quality and resistance to erosion;

7. Epoxy Painting for Anti-Erosion Structure is optional.



Technical Information:



Model R201B R201C R201D
Rotary Flask (L) 500ml/24# +1000ml/24# 500ml/24# +1000ml/24# 500ml/24# +1000ml/24#
Receiving Flask (L) 1000ml/24# 1000ml/24# 1000ml/24#
Condenser Type & Area (sqm) Diagonal (0.14) Diagonal (0.14) Diagonal (0.14)
Evaporation Efficiency (H2O) > 1.2L/h > 1.2L/h > 1.2L/h
Motor Power (w) 40 w 40 w 40 w
Rotary Speed (rpm) 50 - 180 50 - 180 50 - 180
Display Type Of Rotary Speed Scale Scale Digital
Seal Type PTFE Seal Assemble (Teflon) PTFE Seal Assemble (Teflon) PTFE Seal Assemble (Teflon)
Reachable Vacuum Level (Mpa) 0.098Mpa 0.098Mpa 0.098Mpa
Speed Adjustment Electronic Stepless Electronic Stepless Electronic Stepless
Glassware Material Borosilicate (Pyrex: G3.3) Borosilicate (Pyrex: G3.3) Borosilicate (Pyrex: G3.3)
Bath Type Internal Heating External Heating External Heating
Bath Power (kw) 1.5 kw 1.5 kw 1.5 kw
Temperature Range Of Bath (°C) Room Temperature - 180°C Room Temperature - 180°C Room Temperature - 180°C
Bath Material SUS304 SUS304 SUS304
Dimensions Of Bath (cm) 24x15 24x15 24x15
Dimensions (cm) 88x55x70 88x55x70 88x55x70
Power 220V/5A 220V/5A 220V/5A
Extra Component (Optional) Epoxy Painting Epoxy Painting Epoxy Painting



Parameter of Glassware:



                          Borosilicate  (Pyrex: G3.3)
Chemical Composition (Weight%)           SiO2        80.7
          B2O5        12.8
          Al2O3         2.2
           CaO       <0.6
           K2O
          Na2O		         4.0
Parameters

         Linear

      Expansivity

  a≤32*10^(-7)

     Thermal Shock

 Resistance (°C)

        270
   Softening (°C)        820
    Anneal (°C)        565

Highest Temperature (°C)

  Continuous Use (°C)

        510



For details, please contact us. Based on your needs, we will customize Rotary Evaporator, equipped with vacuum pump, cooling system and control system.
