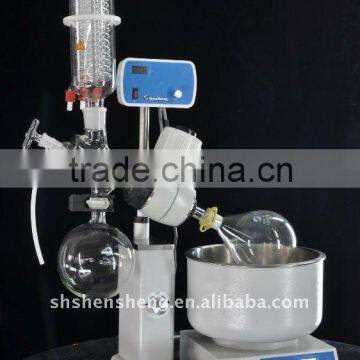

Help CenterRotary Evaporator 2L With Auto Lifting & Vertical Condenser
Related Products
-
Rotary Evaporator 2L With Diagonal CondenserUS$ 620 - 650MOQ: 1 Set -
Rotary Evaporator 2L With Vertical CondenserUS$ 750 - 770MOQ: 1 Set
-
Rotary Evaporator 2L With Motor Lifting and Vertical CondenserUS$ 685 - 695MOQ: 1 Set
-
R509BV 5L Laboratory Rotary Evaporator With Heating Bath and Vacuum ApplicationUS$ 1,850 - 1,950MOQ: 1 Set
-
Rotary Evaporator 10L Borosilicate Condenser Explosion (Flame) ProofUS$ 3,580 - 3,680MOQ: 1 Set
Specifications
Rotary evaporator can perform condensation, distillation and menstruum recycle under negative pressure and constant pressure.Description:
Rotary evaporator can form film to perform condensation, distillation and menstruum recycle under negative pressure and constant temperature. Rotary evaporator is especially applied in condensing, crystallizing and separating heat-sensitive material and recycling menstruum. Moreover, new functions of reflux extraction are added to new model of our products.
Features:
1. Automatic motor lifting system;
2. External-heating bath, no heating ring, easy-maintenance, user-friendly;
3. AC Induction Motor with Stepless speed regulation, no dynamo brush, spark-free;
4. Efficient Dual-reflux Vertical Condenser (0.16sqm condensing area);
5. Glass duct prevents material from reaching metallicity and pollution;
6. PTFE seal assemble (Teflon) with resistance to erosion;
7. Stainless-steel head of motor, resistance to erosion and easy to unload;
8. Connector for Anti-backflow of Condensate;
9. PTFE Bottom Discharge Valve, No Grease pollution;
10. Epoxy Painting for Anti-Erosion Structure is optional.
Technical Information:
Model
R209B
Rotary Flask (ml)
500ml/29# +1000ml/29#
Receiving Flask (ml)
1000ml/35#
Condenser Type & Area (sqm)
Dual-reflux Vertical (0.16)
Evaporation Efficiency (H2O)
> 1.2L/h
Motor Power (w)
40 w
Rotary Speed (rpm)
50 - 180
Display Type Of Rotary Speed
Digital
Seal Type
PTFE Seal Assemble (Teflon)
Reachable Vacuum Level (Mpa)
<-0.098Mpa
Vacuum Meter
Needle
Speed Adjustment
Electronic Stepless
Glassware Material
Borosilicate (Pyrex: G3.3)
Bath Type
External Heating
Bath Power (kw)
1.1 kw
Temperature Range Of Bath (°C)
Room Temperature - 180°C
Lift Type
Automatic Lifting Of Motor
Lift Distance (cm)
11cm
Bath Material
SUS304
Dimensions Of Bath (cm)
24x15
Dimensions (cm)
70x50x70
Power
220V/5A
Extra Component (Optional)
Epoxy Painting
Parameter of Glassware:
Linear Expansivity Thermal Shock Resistance (°C) Highest Temperature (°C) Continuous Use (°C)
Borosilicate (Pyrex: G3.3)
Chemical Composition (Weight%)
SiO2
80.7
B2O5
12.8
Al2O3
2.2
CaO
<0.6
K2O
Na2O 4.0
Parameters
a≤32*10^(-7)
270
Softening (°C)
820
Anneal (°C)
565
510
For details, please contact us. Based on your needs, we will customize Rotary Evaporator, equipped with vacuum pump, cooling system and control system.
