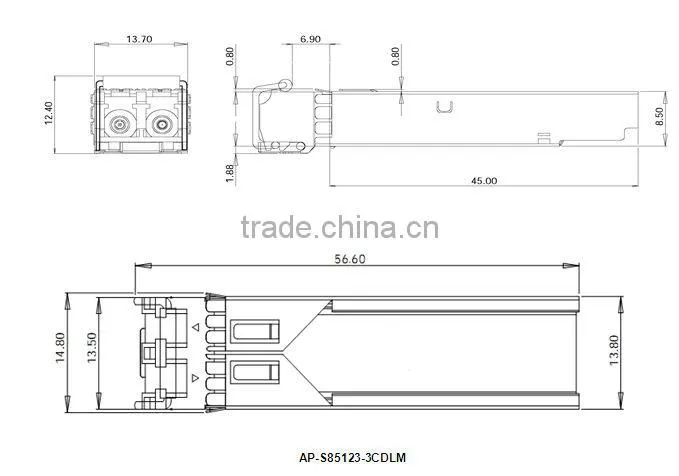

1.25 Gb/s Multi-mode SFP Transceiver
- 10000 Piece / Pieces per Month
- shanghai /shenzhen/ ningbo
- Credit Card
- RF Testing Wire Cable Assembly SMA Male Female connector
- 50 Watt Dummy Load/Termination Low PIM3 -150dBc N male/female
- high power good PIM -150dBc RF Coaxial Fixed Dummy Load/Termination 200W
- good low PIM3 -150dBc RF Coaxial Fixed Dummy Load/Termination 50W
- 800-2500MHz 3x2 3 in 2 out Hybrid Combiner n female type DC-3Ghz
- RF 800-2700MHz 2 in 1 out 2x1 3dB Hybrid Coupler Combiner N Female type
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Eric | Model Number: | SFP Transceiver 850nm |
Product Description
Specifications
1.Hot-pluggable SFP footprint2.850nm VCSEL laser transmitter
3.Single +3.3V power supply
4.850nm VCSEL laser transmitter
1.25 Gb/s Multi-mode SFP Transceiver
Description :
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with 1.25Gb/s 1000Base-SX Ethernet and1.063Gb/s Fiber Channel. They are RoHS compliant and lead-free.
Product feature :
l Hot-pluggable SFP footprint
l 850nm VCSEL laser transmitter
l RoHS compliant and Lead Free
l Up to 550m on 50/125µm MMF,
500m on 62.5/125µm MMF
l Metal enclosure for lower EMI
l Single +3.3V power supply
l Low power dissipation <600mW
l Commercial operating temperature range:0°C to +70°C
III. Electrical Characteristics (TOP=25°C, Vcc=3.3Volts) | |||||||
Parameter | Symbol | Min | Typ | Max | Unit | Ref. | |
Supply Voltage | Vcc | 3.00 | 3.60 | V | |||
Supply Current | Icc | 180 | 300 | mA | |||
Transmitter | |||||||
Input differential impedance | Rin | 100 | Ω | 2 | |||
Single ended data input swing | Vin, pp | 250 | 1200 | mV | |||
Transmit Disable Voltage | VD | Vcc – 1.3 | Vcc | V | |||
Transmit Enable Voltage | VEN | Vee | Vee+ 0.8 | V | |||
Transmit Disable Assert Time | 10 | us | |||||
Receiver | |||||||
Single ended data output swing | Vout, pp | 250 | 800 | mV | 3 | ||
Data output rise time | tr | 175 | ps | 4 | |||
Data output fall time | tf | 175 | ps | 4 | |||
LOS Fault | VLOS fault | Vcc – 0.5 | VccHOST | V | 5 | ||
LOS Normal | VLOS norm | Vee | Vee+0.5 | V | 5 | ||
Deterministic Jitter Contribution | RXΔDJ | 80 | ps | 6 | |||
Total Jitter Contribution | RXΔTJ | 122.4 | ps |
IV. Optical Characteristics (TOP=25°C, Vcc=3.3 Volts) | |||||||
Parameter | Symbol | Min | Typ | Max | Unit | Ref. | |
Transmitter | |||||||
Output Opt. Power | PO | -9 | - | -3 | dBm | 1 | |
Optical Wavelength | λ | 830 | 850 | 860 | nm | ||
Spectral Width | σ | - | - | 0.85 | nm | ||
Side Mode Suppression Ratio | SMSR | 30 | - | - | dB | ||
Optical Rise/Fall Time | tr/tf | - | - | 175 | ps | 2 | |
Deterministic Jitter Contribution | TXΔDJ | - | - | 0.07 | UI | 3 | |
Total Jitter Contribution | TXΔTJ | - | - | 0.007 | UI | ||
Optical Extinction Ratio | ER | 9 | 10 | - | dB | ||
Receiver | |||||||
Average Rx Sensitivity | RSENS | - | - | -20 | dBm | 4 | |
Maximum Received Power | RXMAX | -2 | - | - | dBm | ||
Optical Center Wavelength | λC | 770 | 850 | 860 | nm | ||
LOS De-Assert | LOSD | - | - | -24 | dBm | ||
LOS Assert | LOSA | -35 | - | - | dBm | ||
LOS Hysteresis | 0.5 | - | - | dB |
Notes:
1. Class 1 Laser Safety.
2. Unfiltered, 20-80%.
3. Measured with DJ-free data input signal .In actual application, output DJ will be the sum of input DJ and ΔDJ.
4. Measured with PRBS 27-1 at 10-12 BER .
