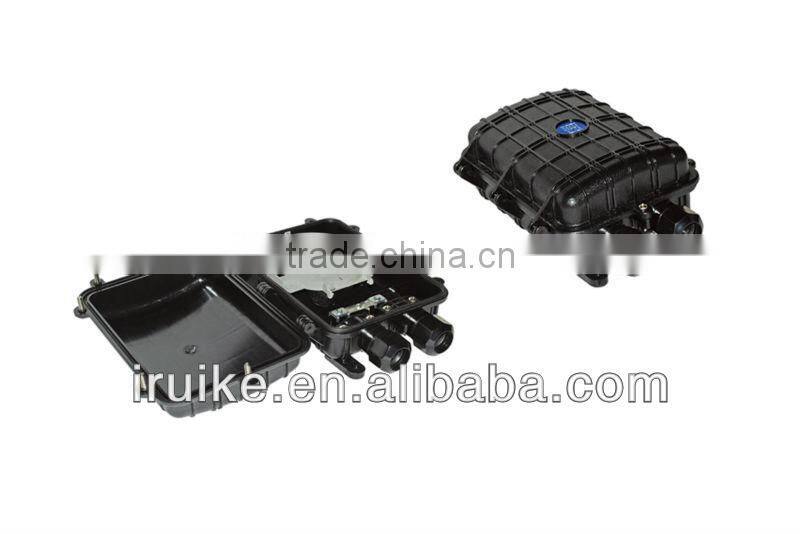

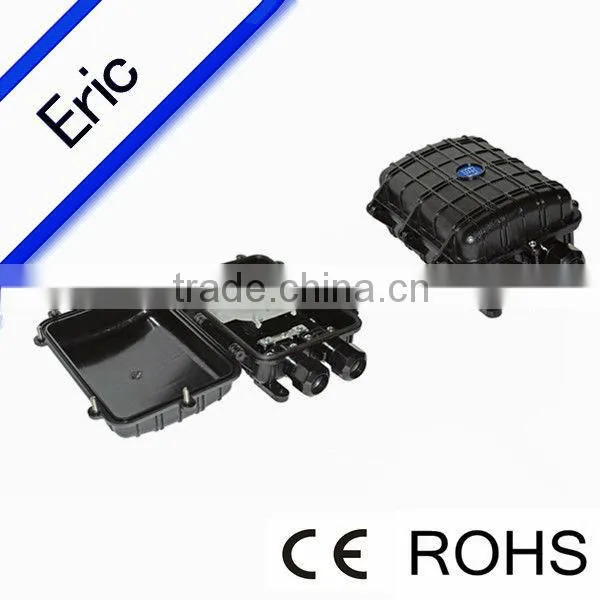

Horizontal Fiber Optic Splice Closure
Specifications
1.Horizontal Fiber Optic Splice Closure2.Excellent capability to adapt to natural conditions
3.strong and durable
Horizontal Fiber Optic Splice Closure
Scope of application
1.This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
2.The scope of application is: aerial and wall-mounting. The ambient temperature ranges from -40 to 65°C.
Dimension and capacity
Outside dimension (LxWxH) |
280x200x90 (mm) |
Weight (excluding outside box) |
1200g-1500g |
Number of inlet/outlet ports |
max. 4 pieces |
Diameter of fiber cable |
Φ8—Φ14 (mm) |
Capacity of FOSC |
Bunchy: 6—96 (Cores) |
Main components
No. |
Name of components |
Quantity |
Usage |
Remarks |
1 |
FOSC cover |
1 piece |
Protecting fiber cable splices in whole |
Internal diameter: 205x146 (mm) |
2 |
FOSC bottom |
1 piece |
Fixing reinforced core, fiber cable and FOST |
Internal diameter: 205x146 (mm) |
3 |
Fiber optic splice tray (FOST) |
max. 4 pieces (bunchy) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:6,12,24(cores) |
4 |
Integrated seal fitting |
1 set |
Sealing between FOSC cover and FOSC bottom |
|
5 |
Port plug |
2 pieces |
Sealing empty ports |
|
6 |
Earthing deriving device |
1 set |
Deriving metallic components of fiber cable in FOSC for earthing connection. |
Configuation as per requirement. |
