Help CenterTwo Ways Active Drop Amplifier
Related Products
-
SCTE Standard EDA-151N CATV Single-gain AmplifierUS$ 12.2 - 15.5MOQ: 1 Piece -
Single-gain CATV AmplifierUS$ 12.2 - 15.5MOQ: 1 Piece
-
EHA810 CATV Broad Band Subscriber AmplifierNegotiableMOQ: 1 Piece
-
SCTE Standard CATV Amplifier( Single-gain)US$ 12.2 - 15.5MOQ: 1 Piece
-
Mini Bi-directional Passive Drop AmplifierNegotiableMOQ: 1000 Pieces
Specifications
1.Two ways active drop amplifier2.Zinc alloy housing
3. The RFI >100dB
4.SCTE standard
click here!

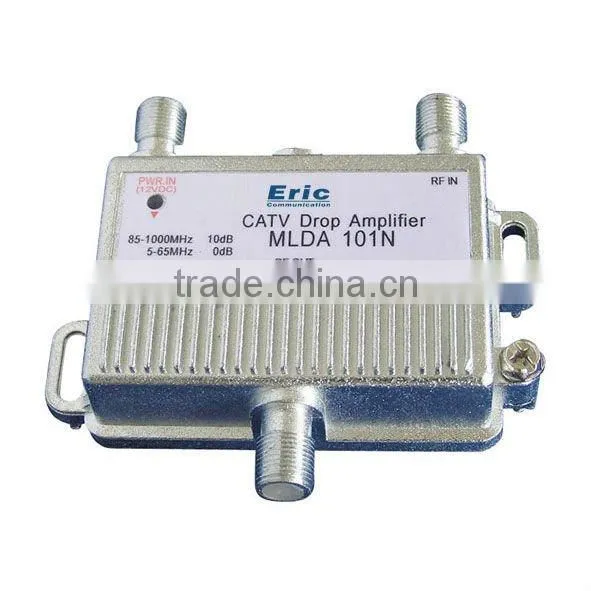

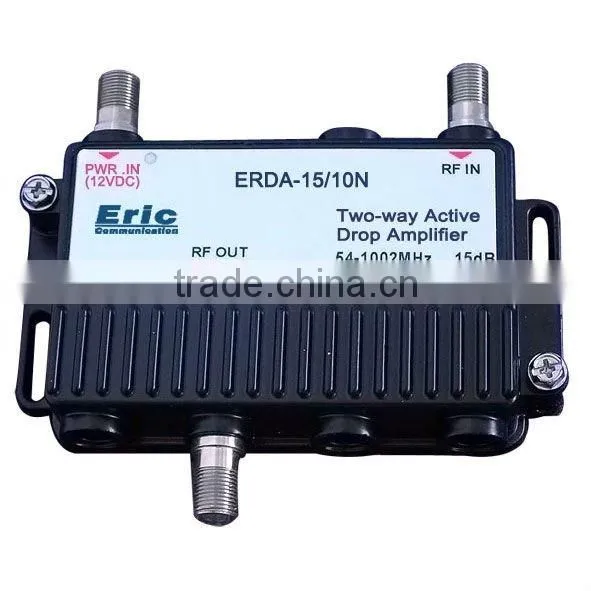

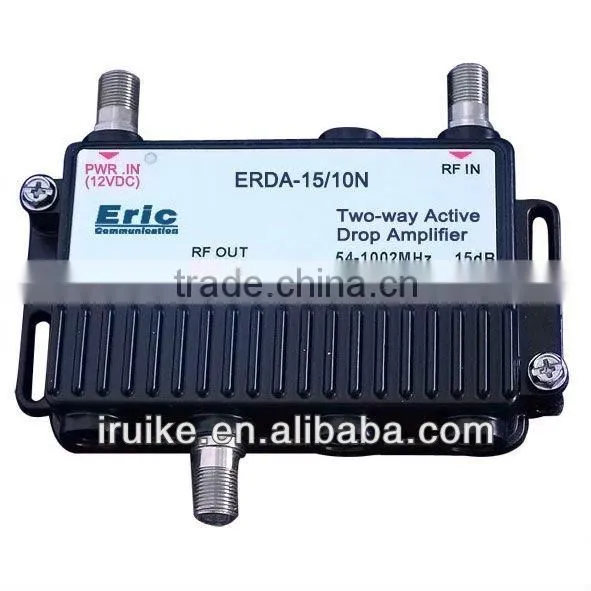

Two ways active drop amplifier
Features
1. In according with SCTE standard;
2. Inner conductor is 360°pin structure,push or pull force≥100g, gold plated;
3. Zinc alloy housing, the RFI >100dB;
4. Affordable 6kV/200A 0.5µS-100kHz ring wave.
Electric performance
Type |
MLRDA10/10N |
MLRDA15/10N |
||||
Parameter |
Unit |
Min value |
Max value |
Min value |
Max value |
|
Forward (upstream) path | ||||||
Frequency range |
MHz |
54/70/85 |
1000 |
54/70/85 |
1000 |
|
Gain |
dB |
10 |
|
14 |
|
|
Flatness |
dB |
|
±1.0 |
|
±1.0 |
|
Output level1 |
dBmV |
|
20 |
|
20 |
|
Noise figure |
dB |
|
4.0 |
|
4.0 |
|
Group delay |
Ch2 |
ns |
|
20 |
|
20 |
Ch3 |
ns |
|
10 |
|
10 |
|
From Ch5 |
ns |
|
5 |
|
5 |
|
CTB1 |
dBc |
|
-73 |
|
-73 |
|
CSO1 |
dBc |
|
-62 |
|
-62 |
|
Xmod1 |
dBc |
|
-75 |
|
-75 |
|
HUM |
dBc |
|
-75 |
|
-75 |
|
Reverse (downstream) path | ||||||
Frequency range |
MHz |
5 |
42/55/65 |
5 |
42/55/65 |
|
Gain |
dB |
9 |
|
9 |
|
|
Flatness |
dB |
|
±1.0 |
|
±1.0 |
|
Max output level |
dBmV |
60 |
|
60 |
|
|
Noise figure |
dB |
|
8 |
|
8 |
|
Group delay |
5-42MHz |
ns |
|
20 |
|
20 |
10-36MHz |
ns |
|
5 |
|
5 |
|
2ndInter modulation2 |
Reverse |
dBc |
|
-70 |
|
-70 |
Forward |
dBmV |
|
-40 |
|
-40 |
|
3rd Inter modulation2 |
Reverse |
dBc |
|
-60 |
|
-60 |
Forward |
dBmV |
|
-35 |
|
-35 |
|
Xmod2 |
dBc |
|
-75 |
|
-75 |
|
HUM |
dBc |
|
-75 |
|
-75 |
|
General performance | ||||||
Impedance |
Ohm |
75 |
||||
Return loss |
dB |
18 |
||||
RF to Power isolation |
dB |
55 |
||||
RFI shielding |
dB |
100 |
||||
Surge withstand |
IEEE C62.41 Category A3 6kV/200A, 0.5µV-100kHz Ring wave |
|||||
Power consumption |
mA |
260 |
||||
Waterproof |
kg/cm2 |
1 |
||||
F port conductor |
|
360°pin structure push & pull force ≥ 50g, gold plated. |
||||
Measurement |
mm |
85×75×25 |
||||
Weight |
g |
165 |
||||
1. Input flat 10dBmV, 77 channels/6MHz, 550 ~ 750MHz digital signals, carrier level 0 dBmV;
2. Input 3 unmodulated series carriers @18, 27, 33MHz, out level 56dBmV.
Certificates
Send Inquiry to This Supplier
