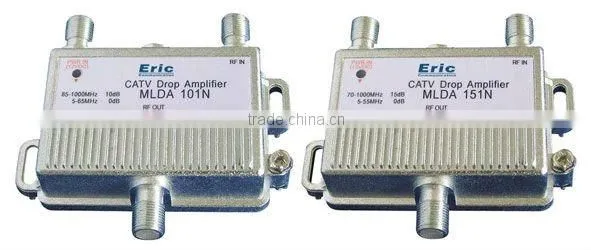

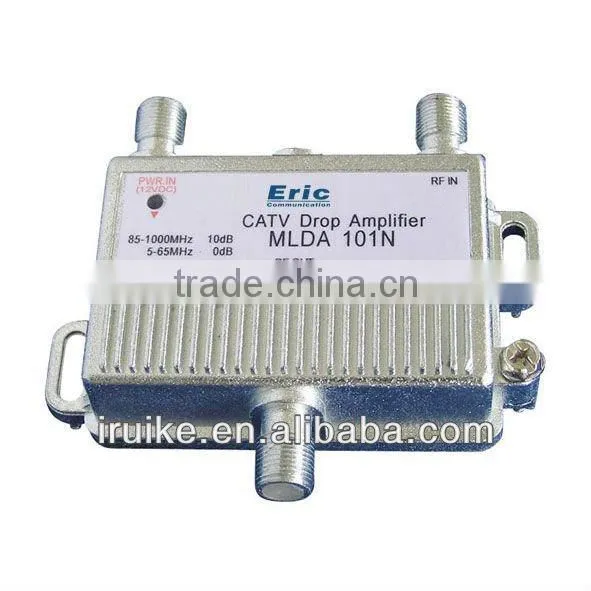

Mini Bi-directional passive drop amplifier
Features
1. In according with SCTE standard;
2. Inner conductor is 360°pin structure,push or pull force≥100g, gold plated;
3. Zinc alloy housing, the RFI >100Db;
4. Affordable 6kV/200A 0.5µS-100kHz ring wave.
MLDA 101 Electric performance
Parameter |
Unit |
Min value |
Max value |
Min value |
Max value |
|
Forward (upstream) path | ||||||
Frequency range |
MHz |
54/70/86 |
1000 |
54/70/86 |
1000 |
|
Gain |
dB |
10 |
|
14 |
|
|
Flatness |
dB |
|
±1.0 |
|
±1.0 |
|
Output level1 |
dBmV |
20 |
|
25 |
|
|
Noise figure |
dB |
|
4.0 |
|
4.0 |
|
Group delay |
Ch2 |
ns |
|
20 |
|
20 |
Ch3 |
ns |
|
10 |
|
10 |
|
From Ch5 |
ns |
|
5 |
|
5 |
|
CTB1 |
dBc |
|
-73 |
|
-73 |
|
CSO1 |
dBc |
|
-62 |
|
-62 |
|
Reverse (downstream) path | ||||||
Frequency range |
MHz |
5 |
42 |
5 |
42 |
|
Insert loss |
dB |
|
1.0 |
|
1.0 |
|
Flatness |
dB |
|
±1.0 |
|
±1.0 |
|
Group delay |
5-42MHz |
ns |
|
20 |
|
20 |
10-36MHz |
ns |
|
5 |
|
5 |
|
General performance | ||||||
Impedance |
Ohm |
75 |
||||
Return loss |
dB |
18 |
||||
RF to Power isolation |
dB |
65 |
||||
Cross modulation2 |
dBc |
-75 |
||||
Hum modulation |
dBc |
-75 |
||||
RFI shielding |
dB |
100 |
||||
Surge withstand |
IEEE C62.41 Category A3 6kV/200A Ring wave |
|||||
Power consumption |
mA |
125 |
||||
Waterproof |
Kg/cm2 |
1 |
||||
F port conductor |
|
360°pin structure,push or pull force≥100g, gold plated. |
||||
Measurement |
mm |
85.25X49X25.5 |
||||
Weight |
g |
165 |
||||
1. Input flat 10dBmV, 77 channels/6MHz, 550 ~ 750MHz digital signals, carrier level 0dBmV;
2. Frequency between downstream 5MHz and upstream 6MHz.
