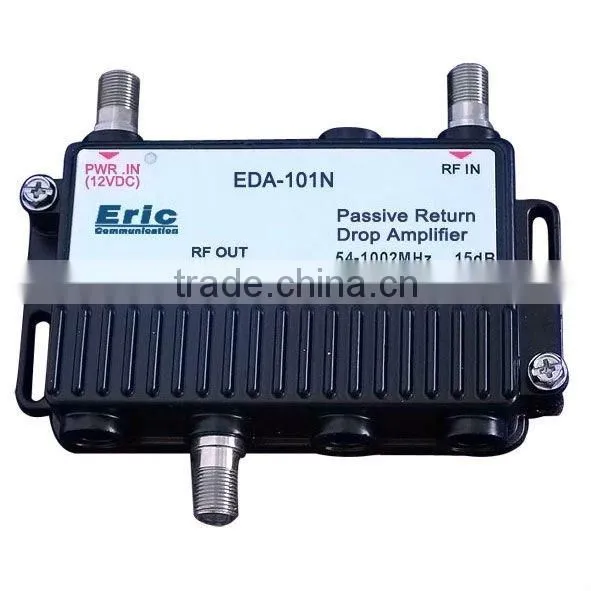

Single-gain CATV Amplifier

Single-gain CATV Amplifier thumbnail-1
Single-gain CATV Amplifier photo-1
US$ 12.2 - 15.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Eric
Model Number:
EDA-101N/EDA-151N
Contact Supplier Request Quote Chat Now
Hangzhou Eric Communication Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO/SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Eric
Model Number EDA-101N/EDA-151N

Specifications

1.CATV Amplifier( Single-gain)
2.SCTE standard
3.Aluminum housing with copper connector
4.Single-gain amplifier

CATV Amplifier( Single-gain)



Features:

1·In according with SCTE standard;

2·Inner conductor is 360°pin structure, push or pull force≥100g, gold plated;

3·Aluminum housing with copper connector, the RFI >100dB;

4·Affordable 6kV/200A  0.5µS-100kHz ring wave





Electric performance:

Model

LDA 101N

LDA 151N

Parameter

Unit

Min value

Max value



Max value

Forward (downstream) Path

Frequency Range

MHz

47/54/70/85

1002

47/54/70/85

1002

Gain

dB

10



14



Flatness

dB



±0.5



±0.5

Output level 1

dBµV

80



85



Noise Figure

dB



4.0



4.0

Group Delay

Front 1st chl

ns



30



30

2nd chl

ns



15



15

From 3th chl

ns



5



5

CTB 1

dBc



-73



-73

CSO 1

dBc



-62



-62

Reverse (upstream) Path

Frequency Range

MHz

5

30/47/55/65

5

30/47/55/65

Insert Loss

dB



1.0



1.0

Flatness

dB



±0.5



±0.5

Group Delay

5 ~ 6MHz

ns



5sapn0.1MHz



5sapn0.1MHz

6 ~ 10MHz

ns



20sapn1MHz



20sapn1MHz

Above 10MHz

ns



5sapn1MHz



5sapn1MHz

General performance

Resistance

Ohm

75

Return Loss

dB

18

Cross Modulation 2

dBc

-75

Hum Modulation

dBc

-70

RFI Shielding

dB

100

Surge Withstand

RF IN port

IEEE C62.41 B3 6kV/3kA combo wave+A3 6kV/200A ring wave

Other ports

IEEE C62.41 category A3 6kV/200A ring wave

Power Consumption

mA

125

Waterproof

kg/cm2

1

F port Conductor



360°pin structure,push or pull force≥100g, gold plated.

Working Temperature

°C

-40 ~ +60

Measurement

mm

115×95×30

Weight

g

180

1. Input flat 70dBµV, 77 channels/6MHz, 550 ~ 750MHz digital signals, carrier level 60dBµV;

2. Frequency between downstream 5MHz and upstream 6MHz
