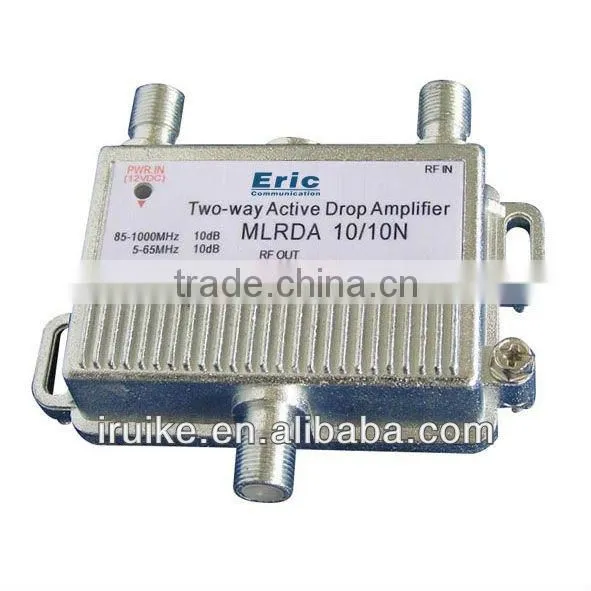

Two Ways Active Drop AmplifierNegotiableMOQ: 1 Piece
-
SCTE Standard EDA-151N CATV Single-gain AmplifierUS$ 12.2 - 15.5MOQ: 1 Piece
-
Single-gain CATV AmplifierUS$ 12.2 - 15.5MOQ: 1 Piece
-
EHA810 CATV Broad Band Subscriber AmplifierNegotiableMOQ: 1 Piece
Specifications
1.Mini bidirectional amplifier2.According with SCTE standard
3.Min. value of gain 10 and 14dBm optional
4.Zinc alloy housing

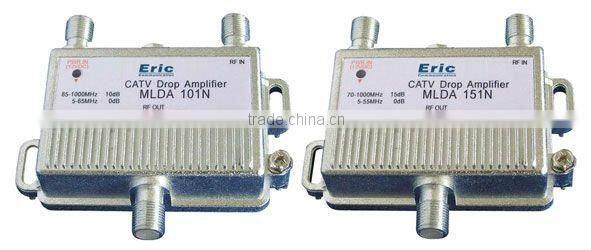

Mini Bi-directional passive drop amplifier
Features
1. In according with SCTE standard;
2. Inner conductor is 360°pin structure,push or pull force≥100g, gold plated;
3. Zinc alloy housing, the RFI >100Db;
4. Affordable 6kV/200A 0.5µS-100kHz ring wave.
MLDA 101 Electric performance
Parameter | Unit | Min value | Max value | Min value | Max value | |
Forward (upstream) path | ||||||
Frequency range | MHz | 54/70/86 | 1000 | 54/70/86 | 1000 | |
Gain | dB | 10 |
| 14 |
| |
Flatness | dB |
| ±1.0 |
| ±1.0 | |
Output level1 | dBmV | 20 |
| 25 |
| |
Noise figure | dB |
| 4.0 |
| 4.0 | |
Group delay | Ch2 | ns |
| 20 |
| 20 |
Ch3 | ns |
| 10 |
| 10 | |
From Ch5 | ns |
| 5 |
| 5 | |
CTB1 | dBc |
| -73 |
| -73 | |
CSO1 | dBc |
| -62 |
| -62 | |
Reverse (downstream) path | ||||||
Frequency range | MHz | 5 | 42 | 5 | 42 | |
Insert loss | dB |
| 1.0 |
| 1.0 | |
Flatness | dB |
| ±1.0 |
| ±1.0 | |
Group delay | 5-42MHz | ns |
| 20 |
| 20 |
10-36MHz | ns |
| 5 |
| 5 | |
General performance | ||||||
Impedance | Ohm | 75 | ||||
Return loss | dB | 18 | ||||
RF to Power isolation | dB | 65 | ||||
Cross modulation2 | dBc | -75 | ||||
Hum modulation | dBc | -75 | ||||
RFI shielding | dB | 100 | ||||
Surge withstand | IEEE C62.41 Category A3 6kV/200A Ring wave | |||||
Power consumption | mA | 125 | ||||
Waterproof | Kg/cm2 | 1 | ||||
F port conductor |
| 360°pin structure,push or pull force≥100g, gold plated. | ||||
Measurement | mm | 85.25X49X25.5 | ||||
Weight | g | 165 | ||||
1. Input flat 10dBmV, 77 channels/6MHz, 550 ~ 750MHz digital signals, carrier level 0dBmV;
2. Frequency between downstream 5MHz and upstream 6MHz.
