Full automatic sugar packing machine with factory price for sale
Packing material:Heat-sealable laminated film, such as:OOP,PE,PVC,PT/PE,OPP/CPP,other film.
- What is the Features of our packing machine?
1. Double frequency conversion control, bag length can be set and cut in one step, saving time and film;
2. Adopt PLC&HMI programming software, easy operating and setting;
3. Self failure diagnosis and clear failure display;
4. High sensitivity photoelectric eye color trace the bag, numerical input of cutting sealing position for extra accuracy;
5. PID control temperature independently which is more suitable for packing different materials
6. Positioned stop function, without sticking knife or wasting time;
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software and it can install intermittent air device and spray alcohol device. The adjustment can be realized at any time and technical upgrade.
9.With automatic reversing extra big candy disc,maximize reduce the empty pack rate.
- What is the Configuration of our packing machine?
NO. |
Product Name |
Brand |
1 |
PLC |
Panasonic (Japan) Schneider Siemens |
2 |
INVERTER |
Schneider (France) |
3 |
Proximity switch |
Omron (Japan) |
4 |
7 inch Touch screen |
WECON (Taiwan) |
5 |
Button Switch |
Schneider (France) |
6 |
Terminal Blocks |
Weidmuller(Germany) |
7 |
Intermediate Relay |
Schneider (France) |
8 |
Switching power |
Meanwell (Taiwan) |
9 |
Solid state relay |
Schneider (France) |
10 |
Temperature controller |
YaTay (Taiwan) |
11 |
Emergency Stop Switch |
Schneider (France) |
12 |
Two-position switch |
Schneider (France) |
13 |
Dynamo |
Yongkun (Taiwan) |
14 |
Encoder |
PASO |
15 |
Electric eye |
YaTay(Shanghai) |
16 |
Circuit breaker |
MUNLAN |
Disc feeding packing machine | ||
17 |
Electric Eye |
SICK (Germany) |
18 |
Inverter |
V.T.V-Beijing |
19 |
Dynamo |
Schneider (France) |
20 |
Touch Screen and extension |
Honest (Guangzhou) |
- What is the Optional Device of our packing machine?
1.Coding machine
2.Air filling device
3.Punch machine
4.All stainless steel frame
- What is the Application of our packing machine?
Disposable knife and fork, towel, paper, noodles, cake, sausage, squid, popsicle, fudge, cookies, fresh fruit and so on.
- What is the Technical Parameters of our packing machine?
| Type | SK-250T |
| Film width | Max.250mm |
| Bag length | 45-90mm |
| Bag width | 20-80mm |
| Product height | 10-35mm |
| Film roll diameter | Max.320mm |
| Packaging rate | 100-300bag/min |
| Power | 220V/380V |
| Machine size | (L)4680*(W)670*(H)1450mm |
| Machine weight | 980kg |
| Remarks | Optional air filling device |
- Product Photos

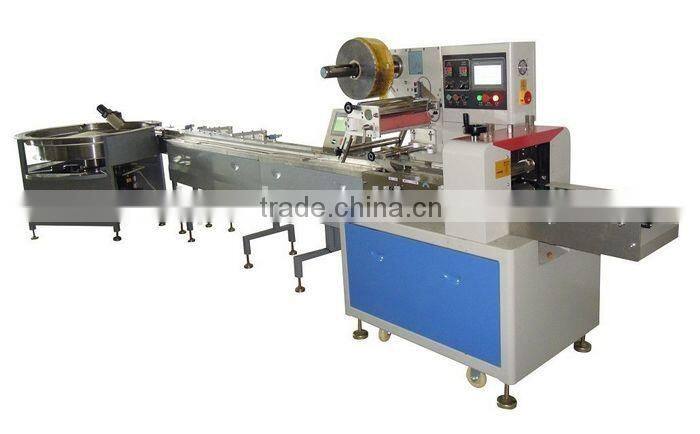

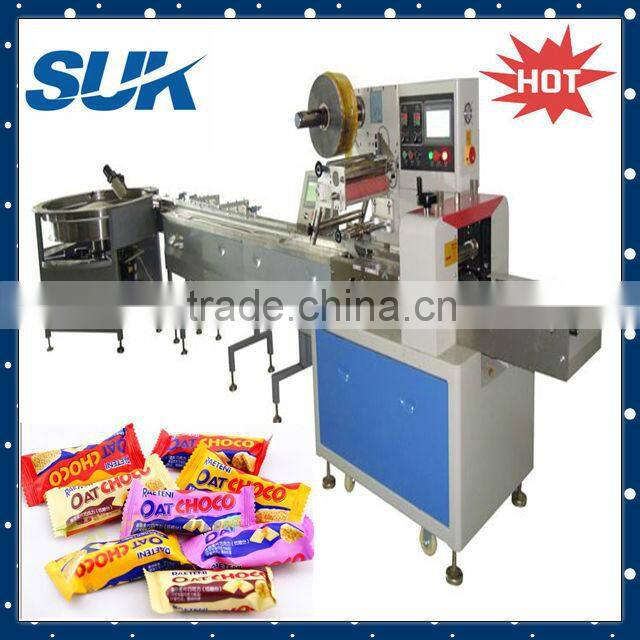

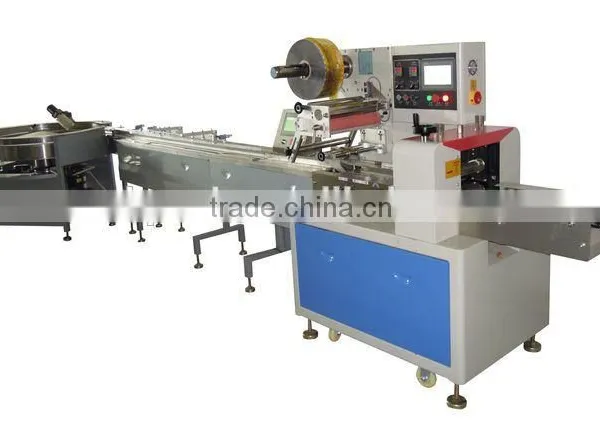

Main picture of automatic sugar packing machine SK-250T

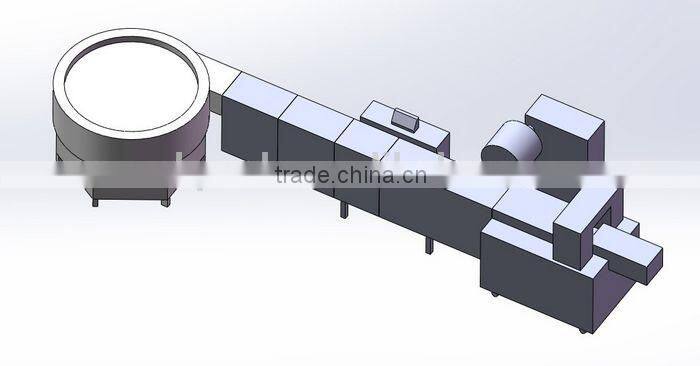

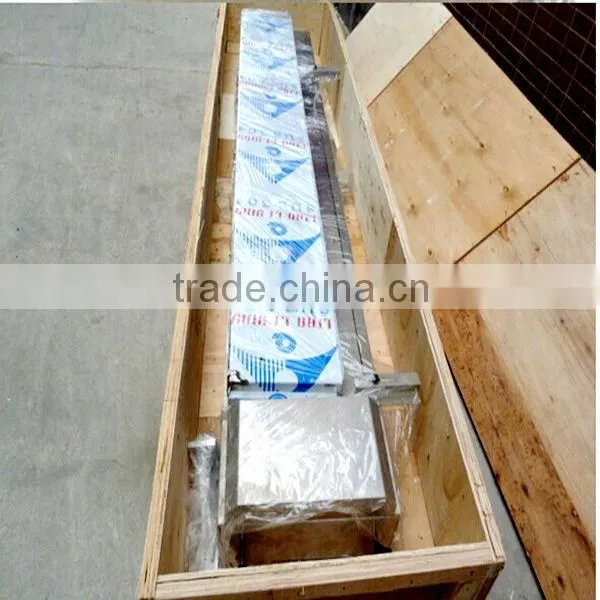

- Disc feeding packing machine:

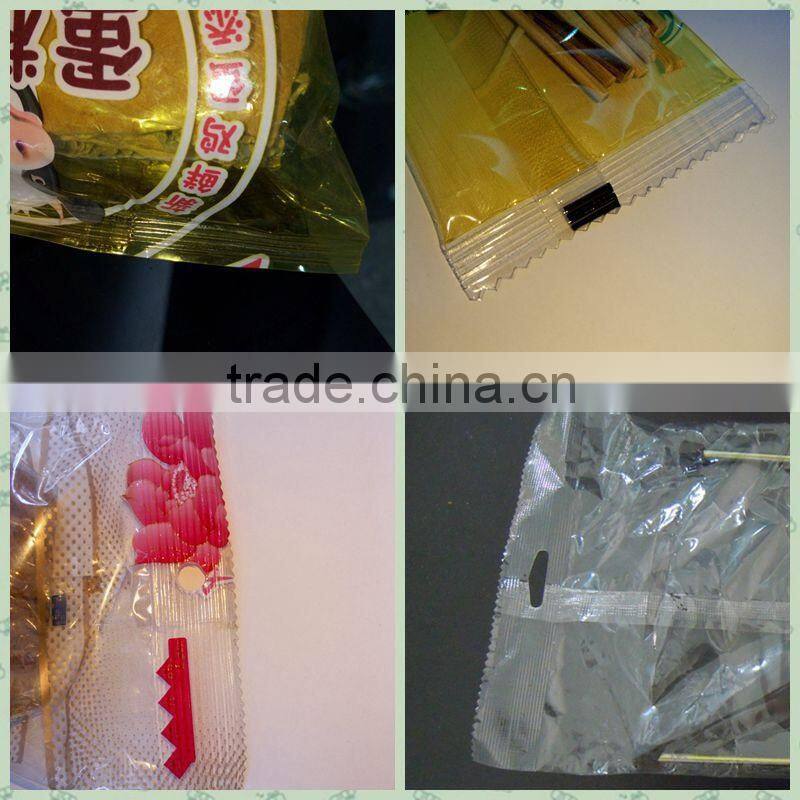

- Samples of packaging

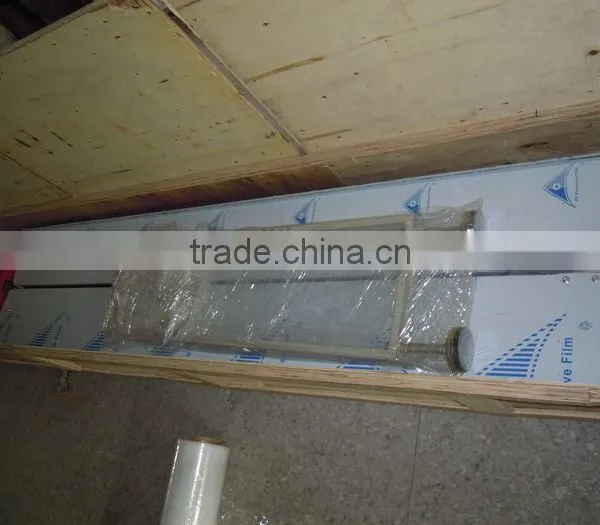

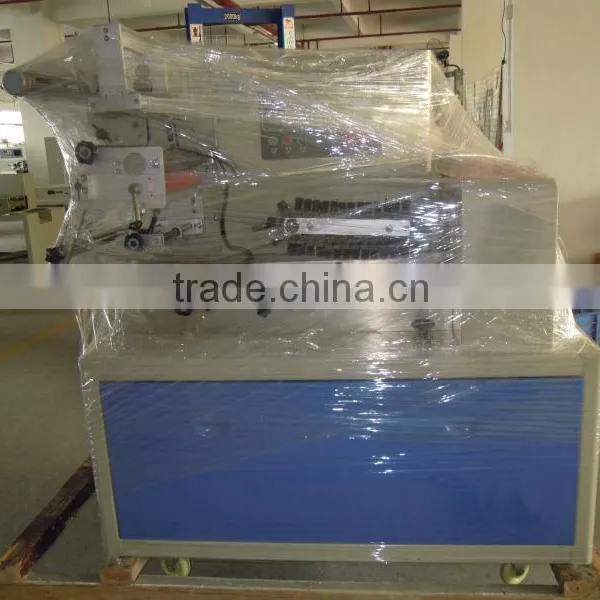

Wooden cases packing :After inspection,our machines are wrapped by plastic film and then carefully packed in wooden cases.
- Export Details
1. Delivery time: about 20 days (It takes time to ensure the processing precision, assembling precision,
etc. Of course, the delivery time can be discussed as the case may be.)
2. Load port: Foshan Port GuangDong Province
3. Packing: In standard export wooden cases
4. Container: 1 x 20 feet container (It depends on the quantity of the machines you buy ).
5. Machine installation and operation training: The seller should dispatch professional technicians andengineers to buyer’s plant to install the machine and train the workers.The round air ticket,accommodation and salary should be paid by buyer.
6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to solve any problem may occur.
7. Our company also provides the raw material to match with the machine.
- Why choose us?
1.Video will be provided to customers.
2.Instruction book with every set of machine
3.Quick response to any question about the machine;
4.Competitive price as direct manufacturer
5.Superior quality
6.Best after-sale service
- What is our Basic Services?
1.Technical support
2.Loading inform
3.Video for debugging
4.Customer's require is welcome
5.Free training, Free 1 year warranty
- Tips for choosing the most suitable machine:
To offer you the most suitable packing machine and reasonable price, we need confirm the following information to choose machine type and offer our experience to help you expand your market:
1.What material do you pack, granule, powder, liquid, tea or other materials?
2.Bag length and bag width?
3.How many pieces do you pack into one bag?
We are also able to customize the machine according to your detail demand, such as packing speed, bag length, max product height, etc.
Hope to cooperate with you in the nearest future!
- Company View
- Quality Control
Two different quality controlling way:
1. Factory quality self test.
Have person who is in charge of testing machine with customer's materials.
2. Customer's quality testing
Take video of machine testing, then send to customer, also we keep record.
- Our Exhibitions
We sincerely welcome customers from all over the world to establish and develop long-terms trade relationship on the basis of equality and mutual benefits.
I am confident that you will have the same satisfaction like them when you work with us.
- Q1.What is Our Advantages?
1. Rapid response on any inquiry.
2. Competitive price.
3. Professional inspection department to guarantee quality.
- Q2.What is our MOQ?
The MOQ is one.
- Q3.Does it easy to operate?
1.Our machine is stable and easy to operate by one man, what you do is just learn some basic thing like how to operate PLC.
2.We will sent you manual and video, we suggest you come to visit our factory to learn more thing by yourself.
- Q4.What can I do if it doesn’t work?
If there is something wrong, you can call us, video-chat, email us.
- Q5.What is Our Payment term?
30% T/T deposit before production and 70% balance before shipment
- Q6.How long is Our Delivery time?
Upon receipt of payment, delivery date will be in 15-35days, and mass order delivery date will be in 15 days.
- Q7.How much is Our Shipment costs?
Shipment cost will depend on the destination, shipment way and the weight of the goods.
- Q8.How to Contact Us?
Send your Inquiry Details in the Below, Click "Send" Now!
