Back Sealing Flow Chocolate Bar Packing Machine With Stainless Steel Frame

Specifications

Full automatic chocolate packing machine :

1.Convey platform

2.Transitional convey part

3.Steering machine

4.Automatic feeding part

5.Packaging machine

Available feeding directions: the vertical and horizontal feeding system, vertical layout of workshop.

Packing material: Heat-sealable laminated film, such as: OPP,PE,PVC,PT/PE,OPP/CPP ,other special sealable packing film.

I. Main performance and structure features

1. Double frequency conversion control, bag length can be set and cut in one step, saving time and film;

2. Adopt PLC&HMI programming software, easy operating and setting;

3. Self failure diagnosis and clear failure display;

4. High sensitivity photoelectric eye color trace the bag, numerical input of cutting sealing position for extra accuracy;

5. PID control temperature independently which is more suitable for packing different materials

6. Positioned stop function, without sticking knife or wasting time;

7. Simple driving system, reliable working, convenient maintenance.

8. All control is realized through software and it can install intermittent air device and spray alcohol device. The adjustment can be realized at any time and technical upgrade.

II. Application

 Cake, bread, biscuit, sweetheart pastry, green bean pastry, chocolate pastry, ect.

Automatic sorting system advantage:

Apply to both orderly and disorderly products.

Simple structure, convenient operation, and easy to set up.

Wide belt make the assembly convenient and fast.

Automatic feeding system advantage:

Accurate and quick positioning.

Convenient to set the machine when packing products of different specifications by simple adjustment.

The belt can be removable without tool.

Simple structure, easy cleaning.

Adopting centralized control technology, it finishes adjustment automatically by the speed and number of feeding materials.

III. Optional device

1. Coding machine
2. Air filling device

3. Punch machine

4. All stainless steel frame

IV. Specification of packing machine

  V. Electric detailed list:

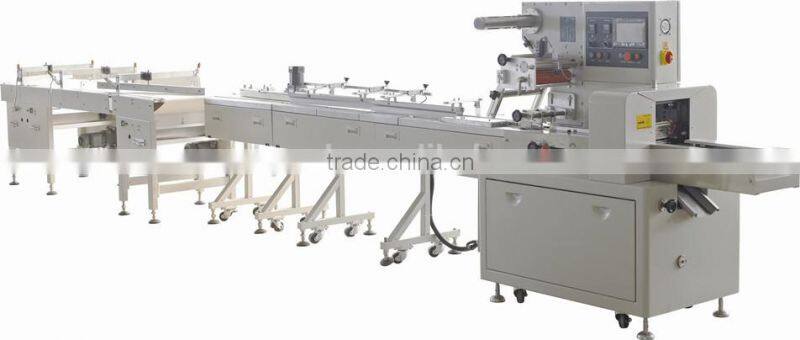

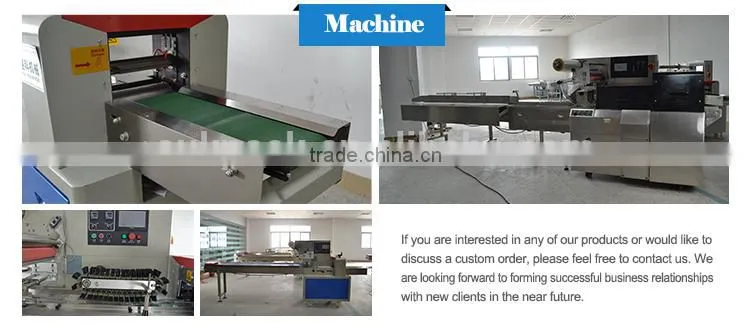

Machine pictrues:
