Specifications
1. easy to operate2. save time and film
3. quick delivery
4. Modern
5. CE

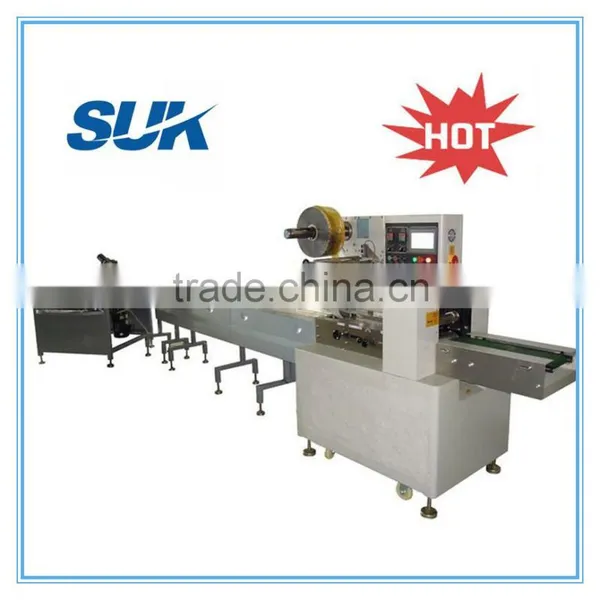

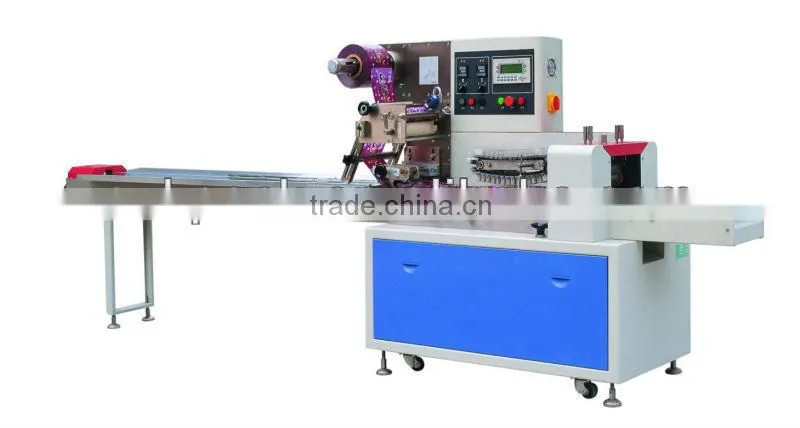

Automatic packing machine/ food packing machine/ pillow packing machine
Back sealing.
Heatable laminated film.
We need the length, width, height of the package thus choosing the right machine.
Features:
1. Double frequency conversion control, bag length can be set and cut in one step, saving time and film;
2. Adopt PLC&HMI programming software, easy operating and setting;
3. Self failure diagnosis and clear failure display;
4. High sensitivity photoelectric eye color trace the bag, numerical input of cutting sealing position for extra accuracy;
5. PID control temperature independently which is more suitable for packing different materials
6. Positioned stop function, without sticking knife or wasting time;
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software and it can install intermittent air device and spray alcohol device. The adjustment can be realized at any time and technical upgrade.
Applications:
Biscuit, moon cake, candy, French style bread, chocolate, red jujube and so on
Optional device:
1. Air filling device
2. Punch machine
3. All stainless steel frame
Specification:
Type |
SZ-320 |
SZ-350 |
SZ -400 |
SZ -450 |
SZ-600 |
Film width |
320mm |
350mm |
400mm |
450mm |
600mm |
Bag Length |
65-330mm |
65-330mm |
130-400mm |
130-450mm |
130-450mm |
Bag width |
50-160mm |
50-160mm |
50-185mm |
60-200mm |
60-280mm |
products High |
Max.55mm |
max.60mm |
max.80mm |
max 90mm |
max95mm |
Packing speed |
40-230bag/min |
40-230bag/min |
30-180bag/min |
30-180bag/min |
30-150bag/min |
Power |
220v 50/60HZ 2.6kw |
220v 50/60HZ 2.6kw |
220v 50/60hz 2.6kw |
220v 50/60hz 2.6kw |
220v 50/60hz 2.6kw |
Machine size |
3770x720x1450mm |
4020x770x1450mm |
4020x800x1450mm |
4020x820x1450mm |
4020x900x1450mm |
Machine Weight |
700kg |
800kg |
900kg |
1000kg |
1100kg |
Remarks |
Optional air filling device |
||||
Configuration:
| NO. | Product Name | Brand |
| 1 | PLC | Panasonic (Japan) |
| 2 | INVERTER | Schneider (France) |
| 3 | Proximity switch | Omron (Japan) |
| 4 | 7 inch Touch screen | WECON (Taiwan) |
| 5 | Button Switch | Schneider (France) |
| 6 | Terminal Blocks |
Weidmuller(Germany) |
| 7 | Intermediate Relay | Schneider (France) |
| 8 | Switching power | Meanwell (Taiwan) |
| 9 | Solid state relay | Schneider (France) |
| 10 | Temperature controller | YaTay (Shanghai) |
| 11 | Emergency Stop Switch | Schneider (France) |
| 12 | Two-position switch | Schneider (France) |
| 13 | Dynamo | Yongkun (Taiwan) |
| 14 | Encoder | PASO |
| 15 | Electric eye | YaTay(Shanghai) |
Automatic pillow Food Packing machine:
Video will be provided to customers;
Instruction book with every set of machine;
Quick response to any question about the machine;
Competitive price as direct manufacturer;
Superior quality;
Best after-sale service.
What is Our Advantages?
1. Rapid response on any inquiry.
2. Competitive price as manufacturer.
3. Professional inspection department to guarantee quality.
