Specifications

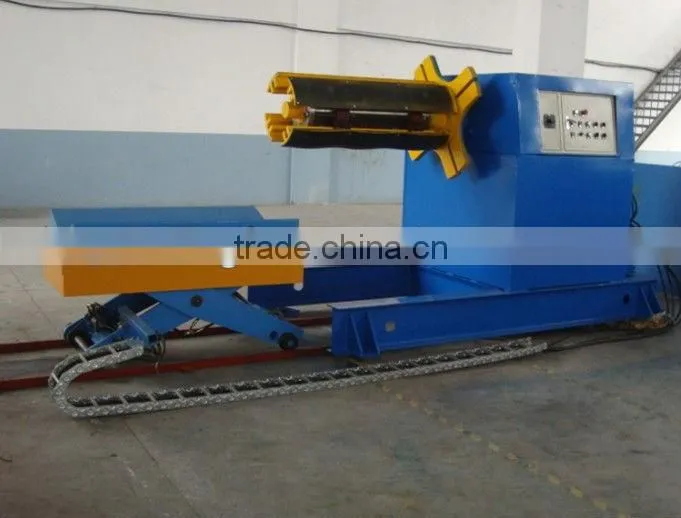

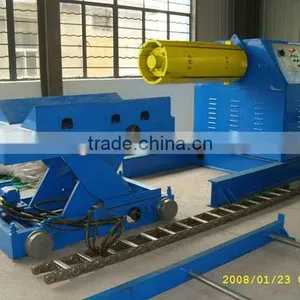

hydraulic decoiler with coil car/coil trailer
1.Technical parameter:
For lifting dolly
Capacity: see the type of uncoiler, max. 5 tons.
Speed: 6m/ min.
Lifting: max. 5500mm.
Moving: max. 3000mm.
For decoiler
Capacity: see the type of uncoiler, max. 5tons.
Inner dia: 508mm, and 610mm (gasket is required).
Width: max. 1500mm.
Center adjust: max. 250mm.
Equipped with optical sensor, laid before decoiler, if sheet is close to sensor, it will stop
releasing coil sheet; if sheet leaves sensor, the decoiler will release coil sheet.
For hydraulic
Max. hydraulic pressure: 16 Mpa.
Motor power: 10.5 KW.
Air pressure: 0.9 Mpa.
2. Process flow:
Fix coil to the decoiler ---- fix coil sheet to lifting dolly ---- lifting dolly moves to decoiler ---
lifting dolly lifts to the same center with decoiler ---- lifting dolly moves more closely to arms
of decoiler---- expanse (coil moves to the decoiler) ---- lifting dolly returns ---- axis of
decoiler rotate (coil sheet comes out).
