Specifications
Coil width: 1000/1200mmRoller driven type: chain transmission
Controller: PLC
Operation: touch screen button
WLFM25-205-820/1025 high quality corrugate cold bending color steel roll forming machine

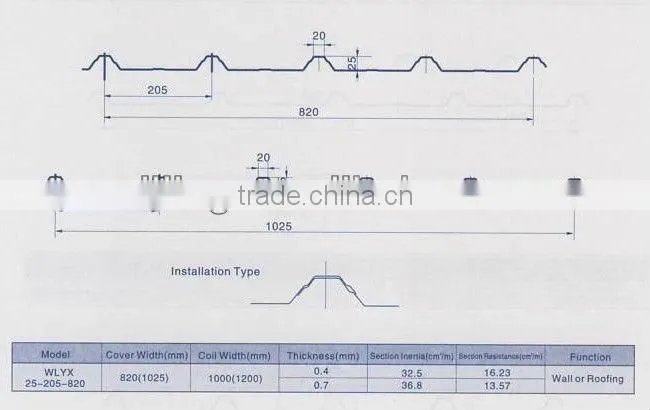

1. Profile drawing
2. Machine layout
3. Main parameter
Material spec: |
Color steel sheet; |
Thickness: |
0.3 mm to 0.7 mm |
Coil width: |
1000mm, 1200mm |
Working speed: |
0-3m/min. (Nodal distance at 250mm) |
Cutting tolerance: |
±2mm |
Main motor power: |
4Kw |
Hydraulic station power: |
3Kw |
Decoiler |
manual decoiler, max capacity 5000kgs |
Main roller qty: |
about 17 stands but depends on last design |
Type of cutting: |
Roll-formed and length-set cutting |
Main body dimension: |
About 7800mm*1500mm*1500mm |

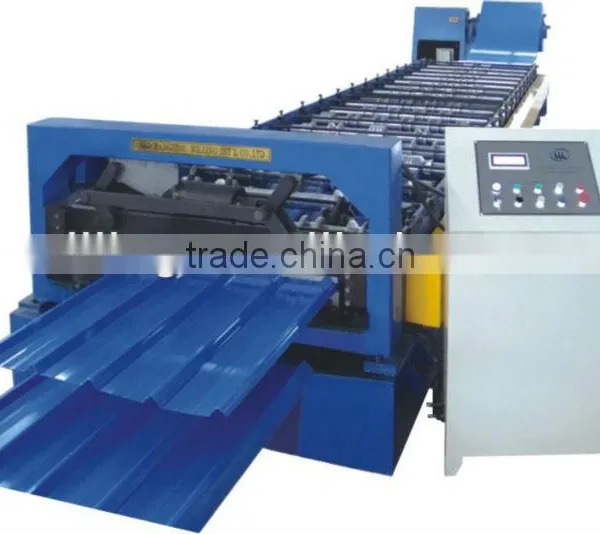

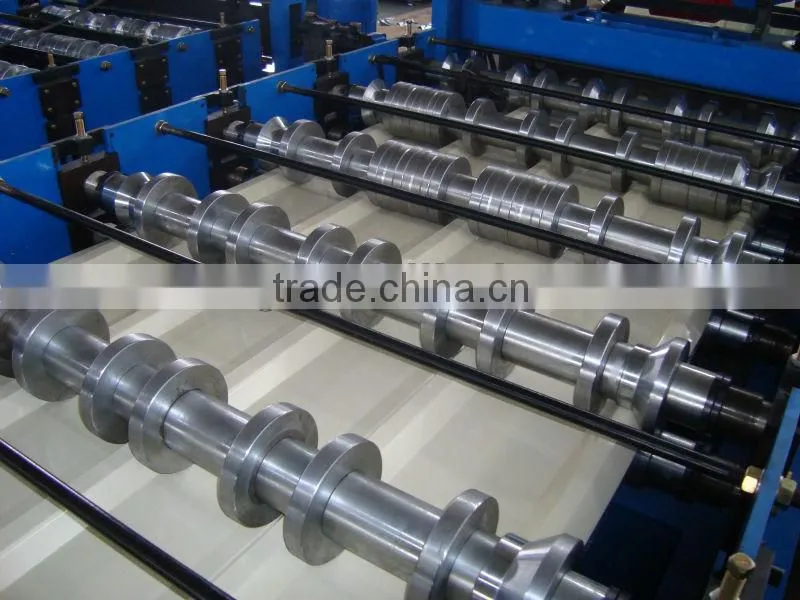

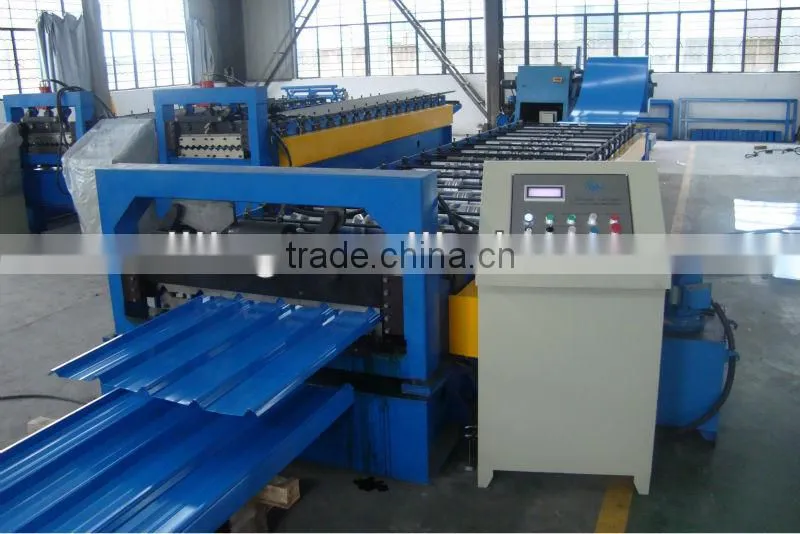

4. Machine picture

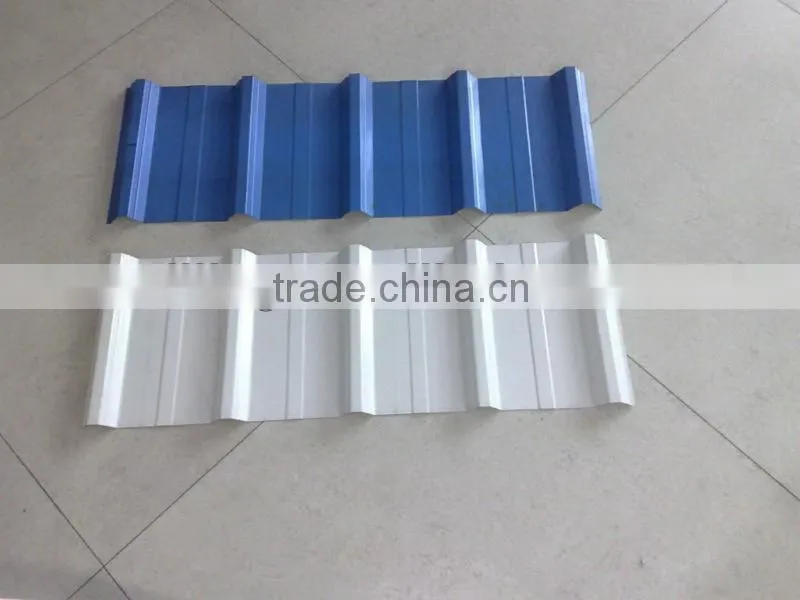

5. Finished products
6. Working flow
Decoiling the sheet------Sheet guiding------Roll forming-----Measure length------Cutting the panel------Panels to the supporter
7. Standard equipment
5tons passive uncoiler |
1set |
Pre-cutting equipment(Optional) |
1set |
Film covering device (Optional) |
1set |
Guiding Equipment |
1set |
Roll Forming Equipment |
1set |
Post Cut Equipment |
1set |
Hydraulic Station |
1set |
PLC Control Penal |
1set |
Supporter Table |
2sets |
