We can design and manufacture many kinds of such corrugated steel roll forming machines for wall or roof as clients' requirementPopular Corrugated steel roll former
————with model # WLFM18-76-760/836/988

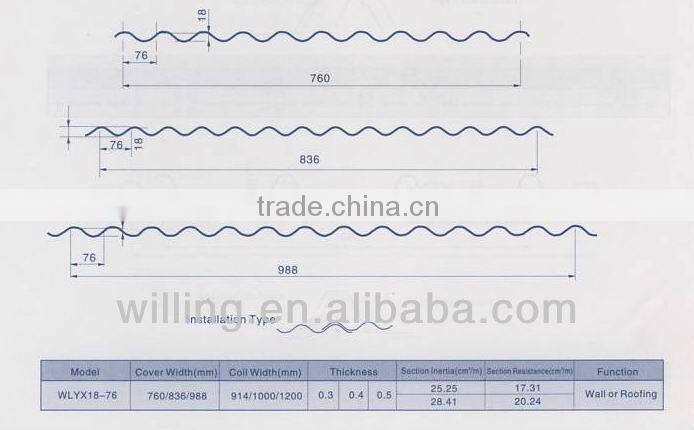

1. Profile drawing
2. Main Parameters
Material Spec | Colored and galvanized steel sheet (Q235) |
| Coil thickness | 0.30~0.80mm |
| Coil width | 914mm/1000mm/1200mm |
| Working speed | 10~12m/(cutting time is not included) |
| Cutting tolerance | ≤±2.5mm ( length ≤5000mm ) |
| ≤±3.0mm (5000mm <length ≤10000mm) | |
| Power requirement | Main motor power: 4Kw |
| Hydraulic station power: 3Kw | |
| 5 tons manual un-coiler | Max. capacity: 5000kgs; Inner Dia.: 508mm |
| Main roller quantity | Around 17 stands |
| Type of cutting | Roll-formed and length-set cutting |
| Voltage | 380V 3phase 50HZ or as customers' requirements |
| Main body dimension | 9000*1500*1400mm |
3. Material of main equipments
Roller Material | High grade No. 45 forged steel, with digital-controlled procession, panted with hard chrome |
| Active Shaft Material | High grade No. 45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft |
| Electric elements: | Control system PLC panel, transducer and touch screen originally imported from Mitsubishi of Japan. It can input 10 sets of specifications at one time. Other elements from famous suppliers in China |
| Cutter blade: | Cr12 mould steel with quenched treatment, hardness HRC55-62 |
4. Working flow
De-coiling the sheet——Sheet guiding——Roll forming——Measure length——Cutting the panel——Finished
corrugated sheets comes out to the support tables
| 5 tons manual un-coiler | 1 |
| Pre-cutting device (manual)-optional | 1 |
| Guiding equipment | 1 |

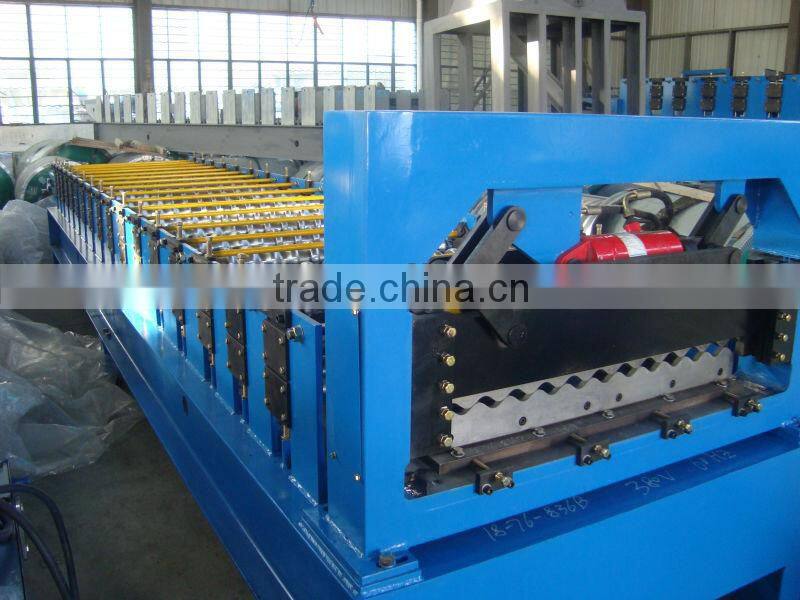

| Roll forming equipment | 1 |

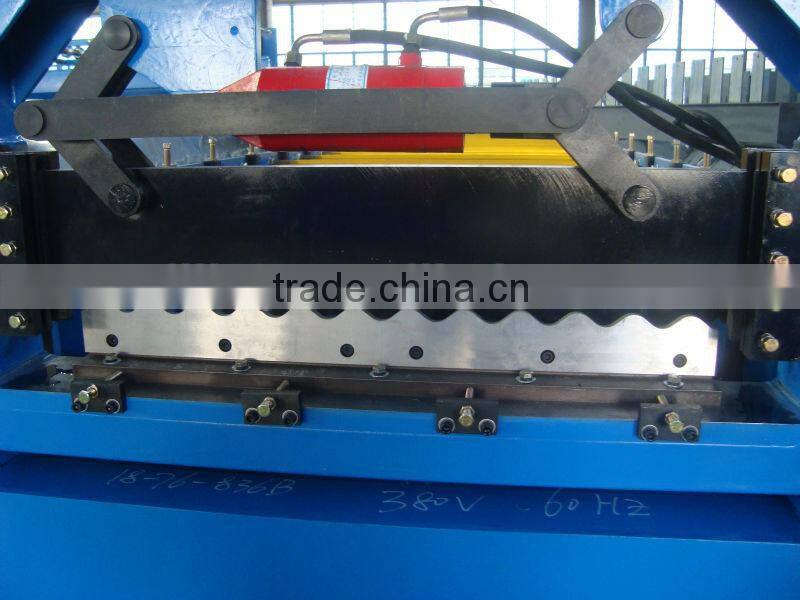

| Post-cut equipment | 1 |
| Hdraulic station | 1 |
| PLC control panel | 1 |
| Support tables | 2 |
6. Reference pictures:

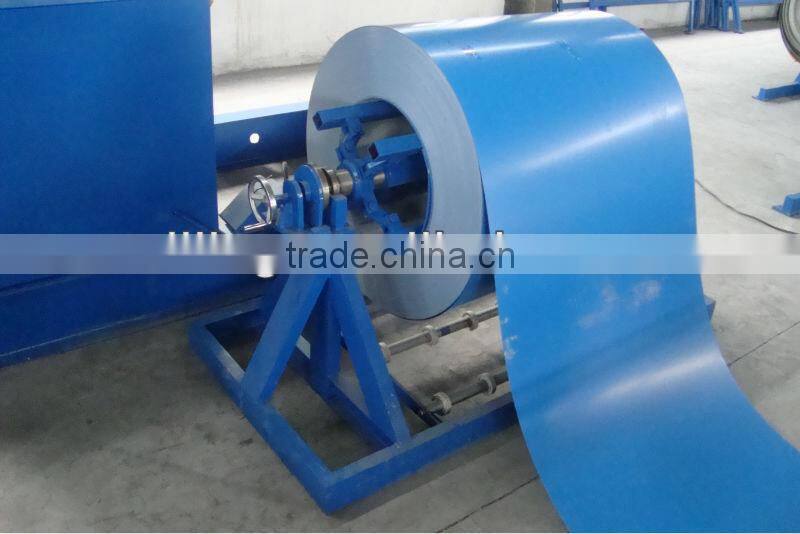

1) 5 tons manual un-coiler which included in the machine whole line

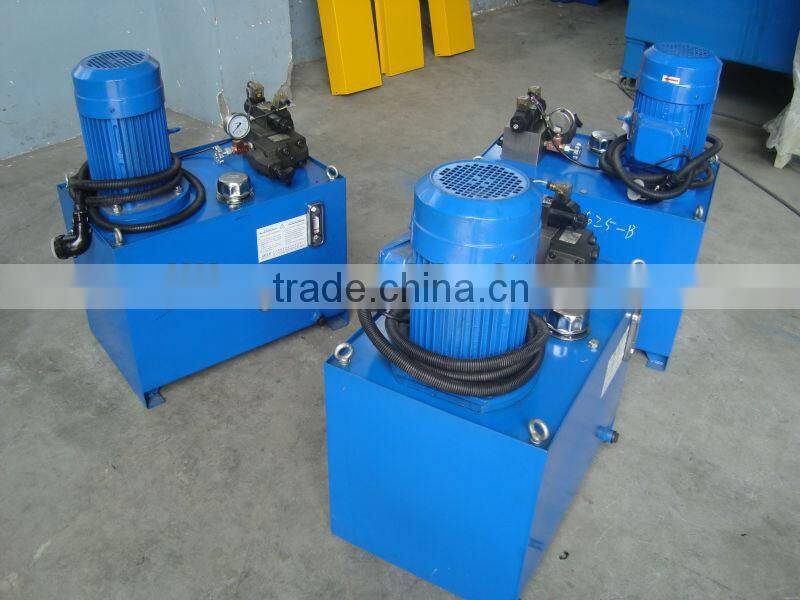

2) Hydraulic station

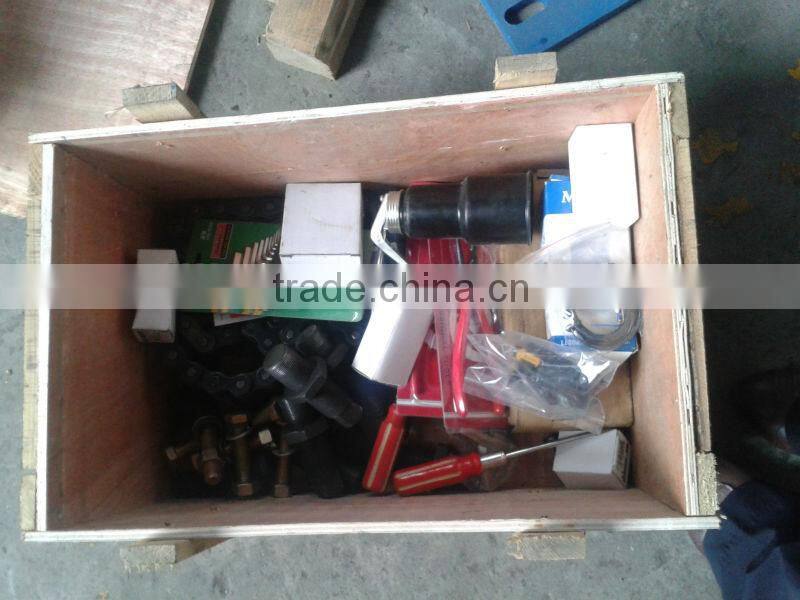

3) Spare parts which will be loaded together with the machine when delivery

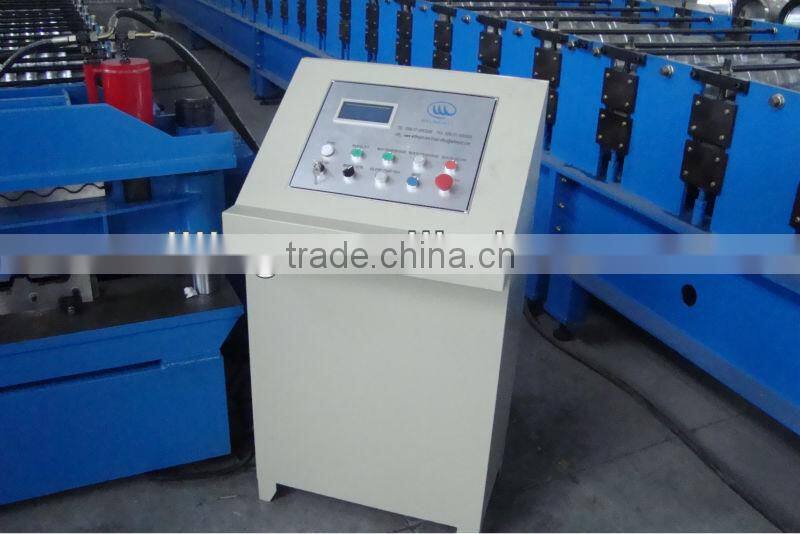

4) PLC Control panel

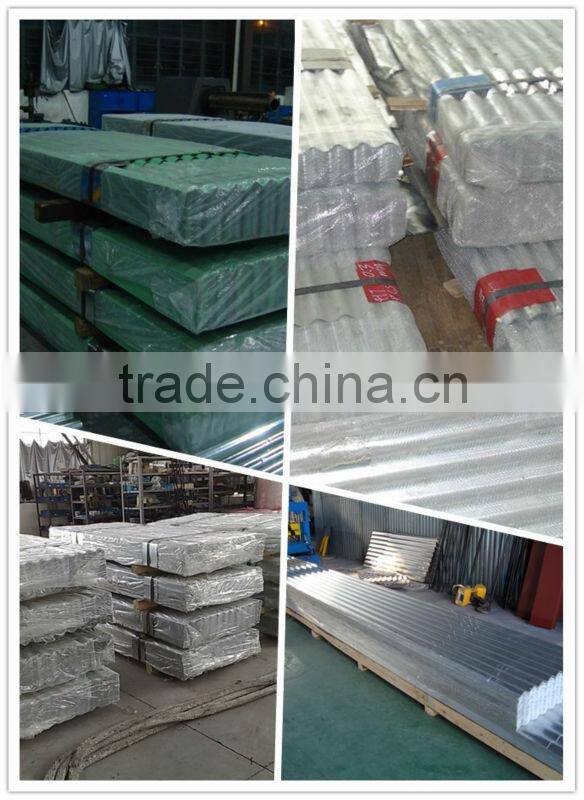

5) Finished products of this machine
