Help CenterHigh Speed Forming Machine
Related Products
Specifications

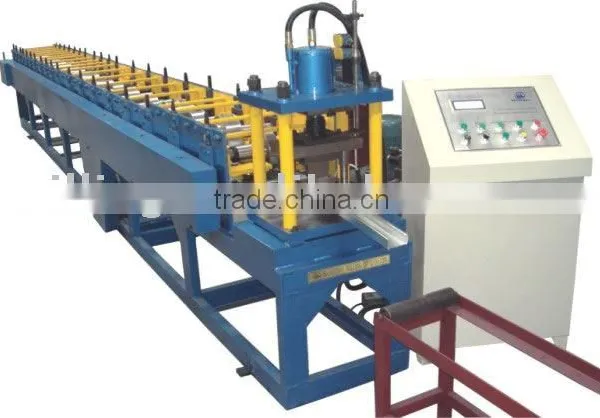

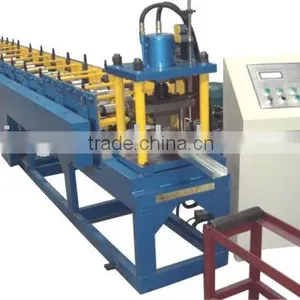

Our company is a professional supplier in the field of steel structure construction, especially good at making forming machine.Model WLFM18-76-988 forming machine consists of uncoiler and its base, coil sheet
guiding equipment, film covered device, roll forming system, post-cutting equipment,
hydraulic station, controlling system, supporter table.
High Speed Forming Machine Technical parameters:
1) Material spec: colored steel sheet; galvanized steel sheet
2) Thickness of coil sheet: 0.3 - 0.7 mm
3) Main motor power: 7.5kW
4) Forming speed: 10 - 12m/min
5) Hydraulic station power: 3kW
6) Quantity of stands: about 18 groups
7) Hydraulic pressure: 10 - 12MPa
8) Controlling system: PLC
9) Index error of length: 10m±2mm
10) Total weight: about 1,000kg
11) Voltage: 380V 3 phase 60Hz or at buyer's requirement
High Speed Forming Machine Material of main equipment
1) Roller material: high grade no. 45 forged steel, plated hard chrome on the surface
of roller with thickness 0.05mm
2) Active shaft material: high grade No.45 carbon wrought steel at diameter 75mm
3) Cutter blade: Cr12 mould steel with quenched treatment

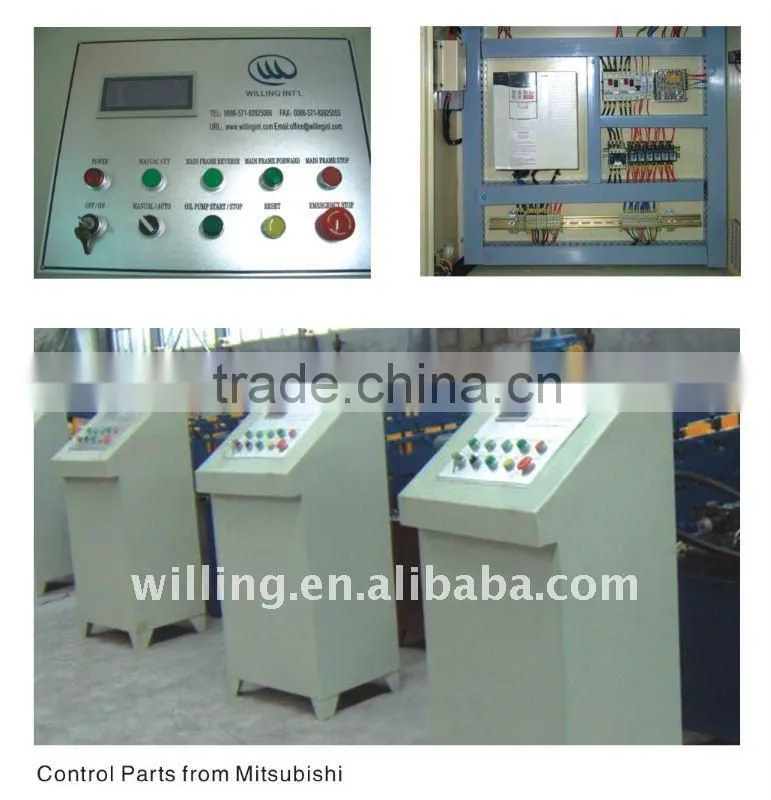

4) Electric elements: control system with PLC model S7-200, Siemens transducer with
ABB control panel with TP170, Siemens. It can input 10 sets of spec at one time
5) Oil tank model of hydraulic system: CB-E310
