Tile Machine,Roof Tile Machine,Roof Forming Machine

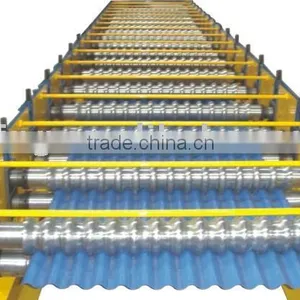

Tile Machine,Roof Tile Machine,Roof Forming Machine thumbnail-1

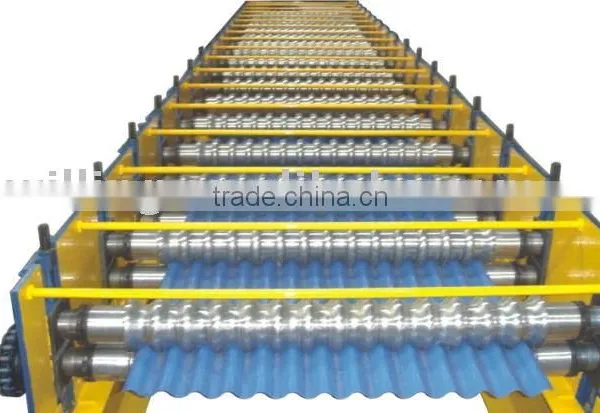

Tile Machine,Roof Tile Machine,Roof Forming Machine photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Use:
Roof
Contact Supplier Request Quote Chat Now
Hangzhou Willing International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Tile Forming Machine
Tile Type Colored Steel
Use Roof
Brand Name WILLING
Model Number WLFM18-76-988
Certification CE

Specifications

We are specialied in making tile machine, we can design all kinds of pattern.

Introduction

Tile machine consists of uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, post-cutting equipment, hydraulic station, controlling system, supporter table.

Technical Parameters

Material Spec                      Colored steel sheet ; galvanized steel sheet

Thickness of Coil Sheet        0.3 --0.7 mm

Main Motor Power                7.5kw

Forming Speed                    10--12m/min

Hydraulic Station Power       3kw

Quantity of Stands               About 18 groups

Hydraulic Pressure              10~12Mpa

Controlling System               PLC

Index Error of Length            10m±2mm

Total Weight                        About 1000kg

Voltage:                              380V 3 phase 60Hz or at buyers requirement

Material of Main Equipment

Roller Material:high grade No.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm

Active Shaft Material:high grade No.45 carbon wrought steel at Φ 75mm.

Cutter Blade:Cr12 mould steel with quenched treatment.

Electric Elements:Control system with PLC model S7-200, Siemins.transducer with ABB control panel with TP170, Siemens. It can input 10sets of spec at one time

Oil Tank Model of Hydraulic System:CB-E310
