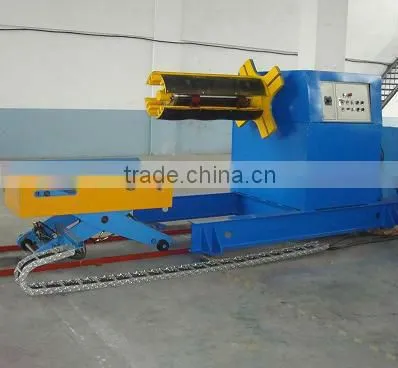

Help CenterHydraulic Uncoiler With Coil Car (dolly Car)
Related Products
-
Hydraulic Uncoiler SystemUS$ 7,000 - 25,000MOQ: 1 Set -
5t Hydraulic DecoilerUS$ 9,000 - 20,000MOQ: 1 Set
-
10T Hydraulic Uncoiler With Coil CarUS$ 9,000 - 20,000MOQ: 1 Set
-
5-10T Automatic Hydraulic UncoilerUS$ 9,000 - 20,000MOQ: 1 Set
-
Automatic Hydraulic Decoiler/uncoilerUS$ 9,000 - 20,000MOQ: 1 Set
Specifications
High quality hydraulic uncoiler with coil car, hydraulic decoiler wih coil car, hydraulic uncoiler with dolly car.High quality hydraulic uncoiler with coil car,
hydraulic decoiler wih coil car,
hydraulic uncoiler with dolly car
* Technical Parameters for Hydraulic Decoiler *
For lifting dolly
1) Capacity: see the type of uncoiler, max. 5 tons.
2) Speed: 6m/ min.
3) Lifting: max. 5500mm.
4) Moving: max. 3000mm.
For decoiler
1) Capacity: see the type of uncoiler, max. 5tons.
2) Inner dia: 508mm, and 610mm (gasket is required).
3) Width: max. 1500mm.
4) Center adjust: max. 250mm.
5) Equipped with optical sensor, laid before decoiler, if sheet is close to sensor, it will stop releasing coil sheet; if sheet leaves sensor, the decoiler will release coil sheet.
For hydraulic
1) Max. hydraulic pressure: 16 Mpa.
2) Motor power: 10.5 KW.
3) Air pressure: 0.9 Mpa.
Work Flow
Fix coil to the decoiler ---- fix coil sheet to lifting dolly ---- lifting dolly moves to decoiler --- lifting dolly lifts to the same center with decoiler ---- lifting dolly moves more closely to arms of decoiler---- expanse (coil moves to the decoiler) ---- lifting dolly returns ---- axis of decoiler rotate (coil sheet comes out).
