automatic hydraulic decoiler/uncoiler

Specifications

                                  Hydraulic uncoiler system

Parameters:

1. For lifting dolly:   max. capacity: 10 tons;   Speed: 6m/min; Lifting: max.550mm;  Moving: max. 3000mm

2. Fo uncoiler: max. capacity: 10 tons; Inner Dia.: 508mm or 610mm( gasket is required)  Width: max. 1500mm

3. For hydraulic: max. hydraulic pressure: 16Mpa;   Motor power: 10.5kw;  Air pressure: 0.9Mpa

Components:

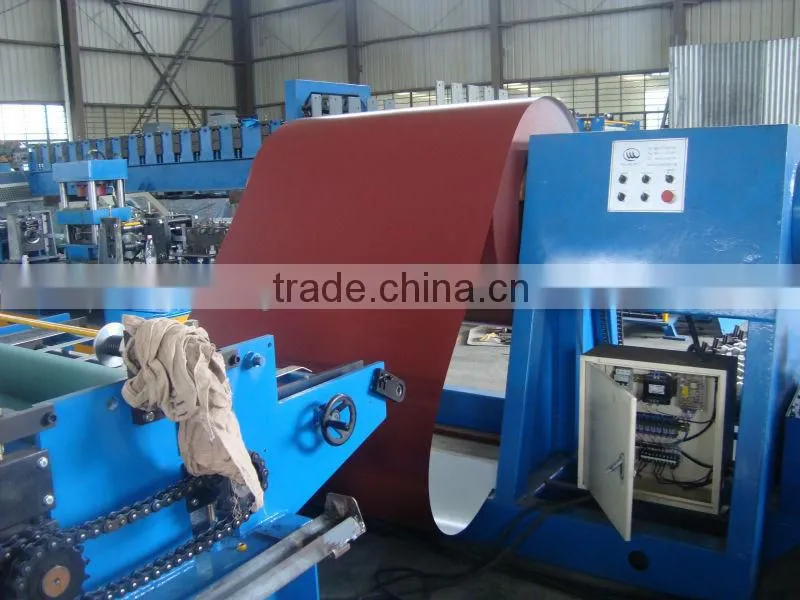

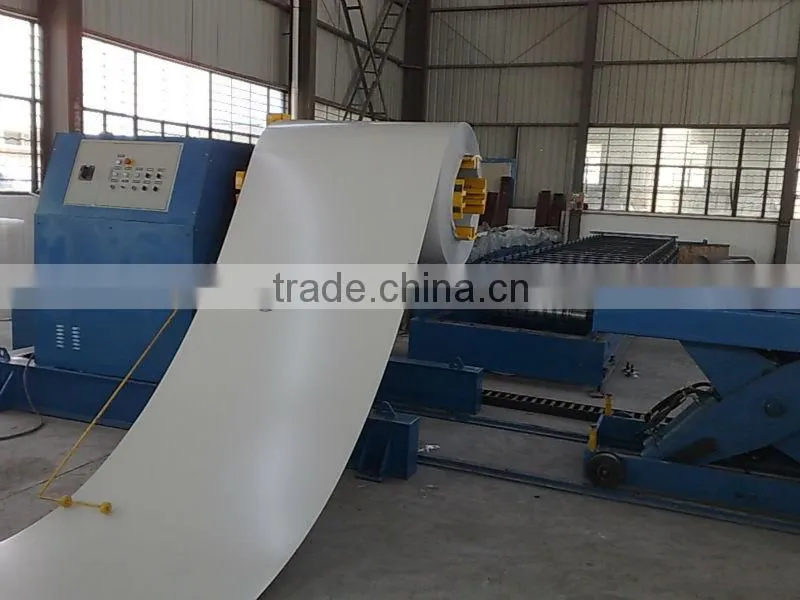

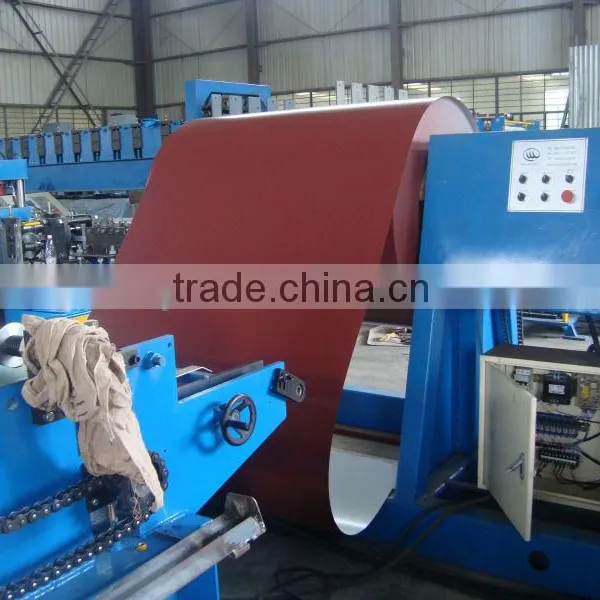

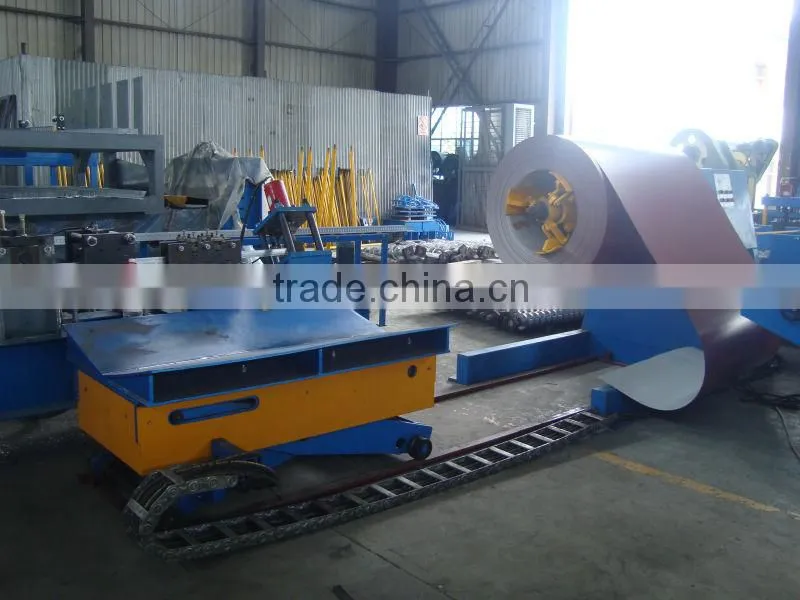

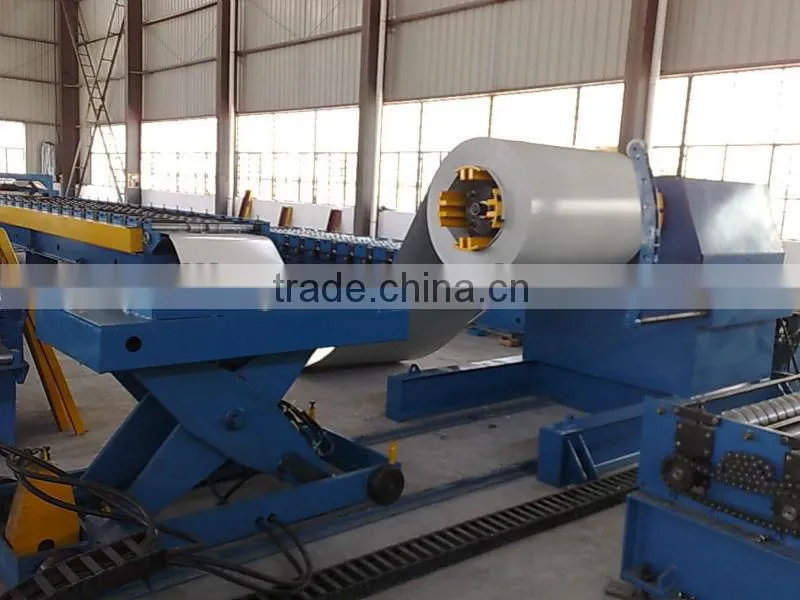

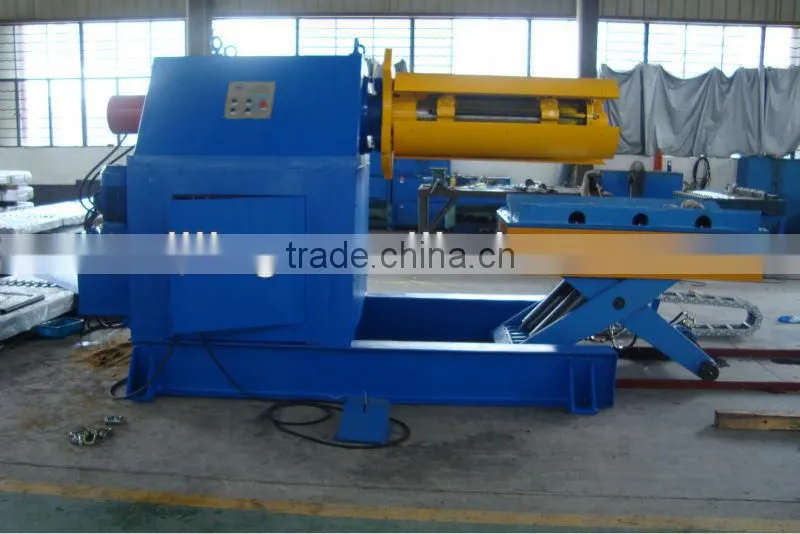

The uncoiler consists of the lifting dolly, uncoiler with pressing arm, frame with lead rail, and hydraulic system. The lifting dolly can be lifted, move on the lead rail, carry the coil to the uncoiler, the leafs of the uncoiler expanse, the coil be fixed on the uncoiler, main axis of the uncoiler rotate, the coil sheet comes out. After the coil sheet fed into the roll forming machine, the coils sheet will be pulled back to minimize the pendant.

Function:

The lifting dolly can be lifted, move on the lad rail, carry the coil to the uncoiler, the leafs of the uncoiler expanse, the coil be fixed on the uncoiler, main axis of the uncoiler rotates, the coil sheet comes out. After the coil sheet fed into the roll forming machine, the coils sheet will be pulled back to minimize the pendant.

Work flow:

Fix the coil to the uncoiler——fix coil sheet to lifting dolly——lifting dolly moves to uncoiler——lifting dolly lifts to the same center with uncoiler——lifting dolly moves more closed to uncoiler arms of uncoiler——expanse   (coil moves to the uncoiler)——lifting dolly returns——axis of uncoiler rotate ( coil sheet comes out)
