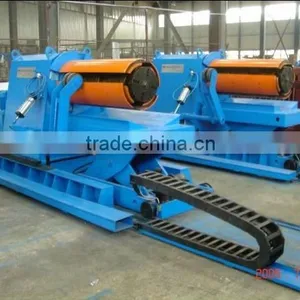

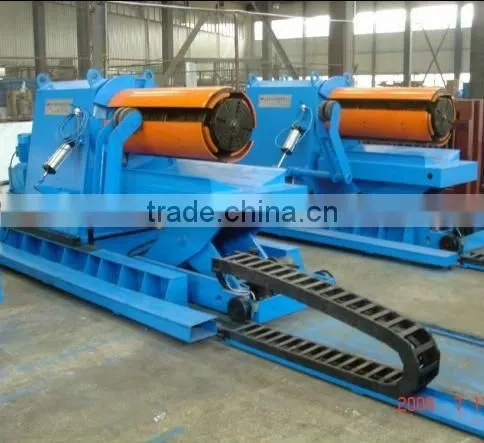

Help Center5ton Hydraulic Uncoiler for Roll Forming Machine
Related Products
-
Manual DecoilerUS$ 1,000 - 1,000MOQ: 1 Set -
5 Ton Manual Decoiler, Manual Uncoiler, Passive Decoiler, Unpowered DecoilerUS$ 1,000 - 1,000MOQ: 1 Set
-
8 Ton Manual DecoilerUS$ 1,000 - 1,000MOQ: 1 Set
-
Hydraulic Uncoiler With Coil Car (dolly Car)US$ 12,000 - 12,000MOQ: 1 Set
-
Hydraulic Uncoiler SystemUS$ 7,000 - 25,000MOQ: 1 Set
Specifications
High quality 5ton hydraulic uncoiler, 5 ton hydraulic uncoiler, hydraulic uncoiler with coil car.High quality 5ton hydraulic decoiler,
5 ton hydraulic uncoiler,
hydraulic uncoiler with coil car
* Technical Parameters for 5 Ton Hydraulic Uncoiler *
For lifting dolly
1) Capacity: see the type of uncoiler, max. 5 tons.
2) Speed: 6m/ min.
3) Lifting: max. 5500mm.
4) Moving: max. 3000mm.
For decoiler
1) Capacity: see the type of uncoiler, max. 5tons.
2) Inner dia: 508mm, and 610mm (gasket is required).
3) Width: max. 1500mm.
4) Center adjust: max. 250mm.
5) Equipped with optical sensor, laid before decoiler, if sheet is close to sensor, it will stop releasing coil sheet; if sheet leaves sensor, the decoiler will release coil sheet.
For hydraulic
1) Max. hydraulic pressure: 16 Mpa.
2) Motor power: 10.5 KW.
3) Air pressure: 0.9 Mpa.
Work Flow
Fix coil to the decoiler ---- fix coil sheet to lifting dolly ---- lifting dolly moves to decoiler --- lifting dolly lifts to the same center with decoiler ---- lifting dolly moves more closely to arms of decoiler---- expanse (coil moves to the decoiler) ---- lifting dolly returns ---- axis of decoiler rotate (coil sheet comes out).
