Specifications

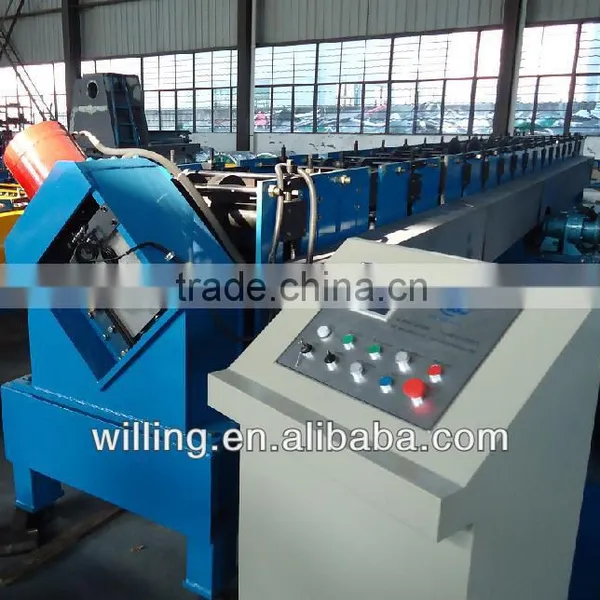

High Quality Z steel roll forming machine, Z Purlin Machine, and CZ Purlin Roll Forming Machine.High Quality Z steel roll forming machine
Z Purlin Machine,
CZ Purlin Roll Forming Machine
1. Components of Z steel roll forming machine
The roll forming machine includes 4tons manual uncoiler unit, sheet guiding equipment, straightening device, pre-punching device, roll forming system, cutting equipment, hydraulic station, electric controlling system(PLC) and run out supporting table.
2. Technical Parameters
Material specification |
galvalume, galvanized steel and carbon steel. |
Thickness |
1.0mm to 2.5mm. |
Main motor power |
15 kw. |
Hydraulic station power |
5.5 kw. |
Feeding width |
changeable. |
Cover width |
changeable. |
Yield stress |
235Mpa(33KSI) ~ 345Mpa (50KSI). |
Roll forming Speed |
12 m/minute. |
Cutting Tolerance |
+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm). |
Manual Uncoiler |
Max. Capacity: 3000kgs. |
Coil inner diameter |
508mm. |
Voltage |
As per customer’s request. |
Numbers of stands |
17 stands/stations/pairs. |
Type of cutting |
Roll-formed and length-set profile cutting. |
3. Material of Main Equipment
Roller Material |
GCr15 bearing steel, with quenching treatment. |
Active Shaft Material |
High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. |
Electric Elements |
PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
Cutter blades |
Cr12 mould steel with quenched treatment. |
4. Process sketch
Uncoiling the sheet --- Infeed guiding --- Straightening --- Pre-punching --- Roll forming --- Measure length --- Cutting the panel --- Panels to the supporter (option: automatic stacker).
5. Specification
6. Series Design of Product
