Steel Z Shape Profile Forming Machine/ Z Purlin Cold Roll Forming Machine
US$ 30,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Pur;in forming machine
Tile Type:
Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanbghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Steel Purlin Roll Forming MachineUS$ 30,000 - 34,000MOQ: 1 Set -
Steel Purlin Forming MachineUS$ 30,000 - 34,000MOQ: 1 Set
-
Steel Purlin Making MachineUS$ 30,000 - 34,000MOQ: 1 Set
-
High Quality C Purlin Making MachineUS$ 30,000 - 34,000MOQ: 1 Set
-
Z Profile Steel Roll Forming MachineUS$ 30,000 - 34,000MOQ: 1 Set
Condition
New
Type
Other, Pur;in forming machine
Tile Type
Steel
Use
Roof
Production Capacity
10-12m/min
Place of Origin
China
Brand Name
willing
Model Number
at buyer`s requirement
Power(W)
15kw(confirmed by final design)
Voltage
380V 3Phase 50Hz
Certification
CE and ISO9001:2008
Warranty
1year
Specifications
1.Use:roof board2.Roll forming thickness:1.5-3mm
3.Roll forming speed: 10-12m/min
4.Warranty period:one year
C/Z -shape Purlin Roll forming machine
1. Main Parameters
Material Spec |
Galvanized or Carbon steel sheet (Q235) |
| Coil thickness | 1.5~3.0mm |
| Working speed | 10~12m/(cutting time is not included) |
| Cutting tolerance | ≤±2.5mm ( length ≤5000mm ) |
| ≤±3.0mm (5000mm <length ≤10000mm) | |
| Power requirement | Main motor power: 15Kw(Confimed by final design) |
| Hydraulic station power: 5.5Kw (Confimed by final design) | |
| 3 tons manual un-coiler | Max. capacity: 3000kgs; Inner Dia.: 508mm |
| Main roller quantity | Around 14 stands (Confimed by final design) |
| Type of cutting | Roll-formed and length-set cutting |
| Voltage | 380V 3phase 50HZ or as customers' requirements |
2. Material of main equipments
Roller Die Material |
G G Cr15 bearing steel with quenched treatment |
| Active Shaft Material | High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft, shaft diameter 90mm |
|
Electric elements:
|
Control system PLC panel, transducer and touch screen originally imported from Mitsubishi of Japan. Other elements from famous suppliers in China |
| Cutter blade: | Cr12 mould steel with quenched treatment |
We can produce this kind machine according to custmer`s requirement

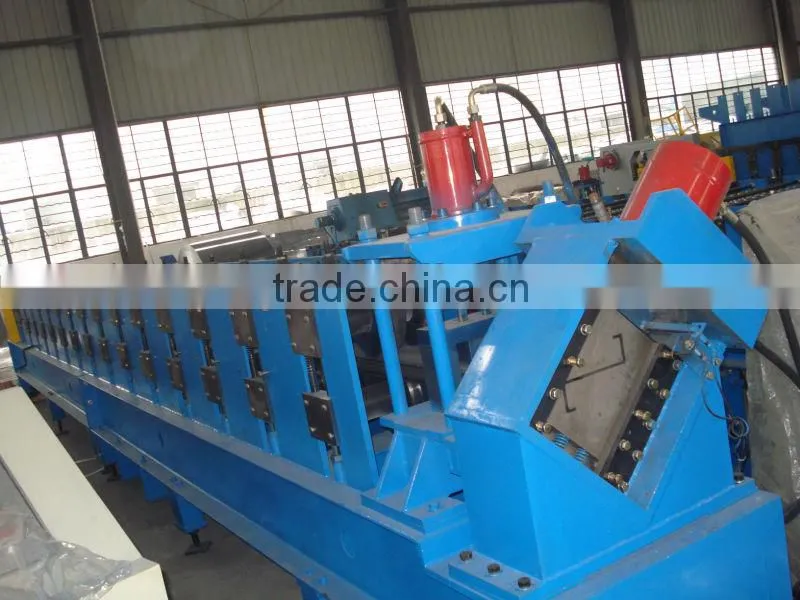

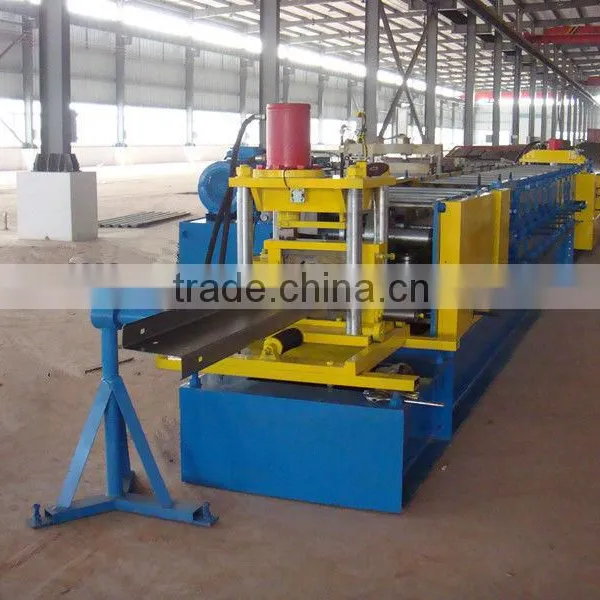

Example Machine Picture
Example Finish Products
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2004
Factory Size
50,000-100,000 square meters
Total Employees
51 - 100 People
