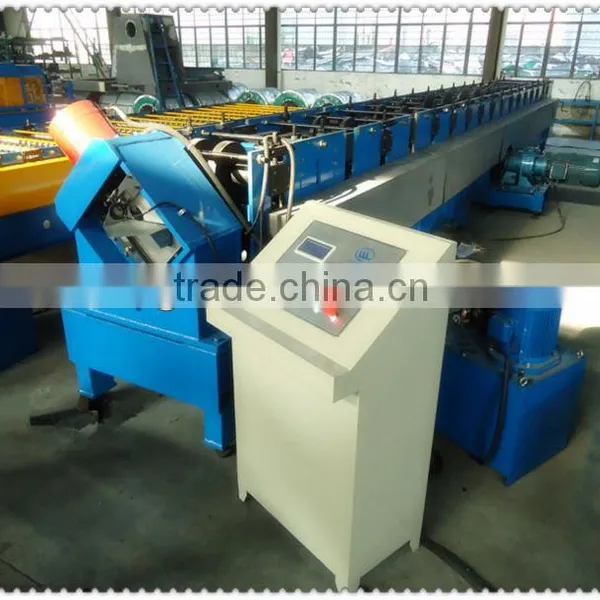

Help CenterZ100-250 High Quality Z Shape Purlin Roll Forming Machine/cold Roll Forming Machine
Related Products
-
Z Steel Purlin Roll Forming MachineUS$ 29,000 - 34,000MOQ: 1 Set -
Flexible Purlin Line With C, Z, U, M ShapeUS$ 30,000 - 34,000MOQ: 1 Set
-
Steel Framing Line (purlin, Joint, Truss...)US$ 30,000 - 34,000MOQ: 1 Set
-
Hot Rolled z Shape Purlin Roll Forming MachineUS$ 30,000 - 40,000MOQ: 1 Set
-
CZ Purlin Roll Forming MachineUS$ 30,000 - 34,000MOQ: 1 Set
Specifications
One machine can produce different sizes.Technical Parameters
Material Spec galvanized steel sheet at stress 235Mpa;
Thickness: 1.5-3.2mm,
Main motor power 22KW(Confirmed by final design)
Hydraulic station power 5.5KW(Confirmed by final design)
Roll Forming Speed 12-16m/min
Main roller round 17 stands(Confirmed by final design)
Power 380V 3 Phase 50Hz (Or at buyer`s requirement)
Control system PLC
Inner diameter 508mm
- Material of Main Equipment
Roller Material High grade steel GCr15 with quenched treatment,which can improve the integrated mechanic feature of the rollers
Active Shaft Material High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft
Electric Elements PLC control panel, transducer imported from Mitsubishi of Japan.
Other elements from famous suppliers in China
Cutter blade Cr12 mould steel with quenched treatment
4. Component and Function
Coil Feeding Equipment Consists of one uncoiler with capacity of 3000kgs and its base. The mandrel can expand or shrink. With separate button to make the mandrel roll.
Guiding Equipment Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.
Punching system our punching is under PLC control. Set parameter from touch screen, if you don`t want to punch some sections, you can stop it. It is an automatic one.
Roll forming system: The main frame of machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers with quenched treatment after being machined by the exact machining tool.
Hydraulic Station Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
PLC Control Panel Main parts imported from Mitsubishi. The operation is easy and steady and can be choose operation by manual or automatically.
l Working Flow
Decoiling the sheet Sheet guiding leveling the sheet Punching the sheet Roll forming Cutting the panel Panels to supporter table
