Z steel purlin roll forming machine
- 20 Set / Sets per Month
- Shanghai or Ningbo China
- T/T
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Steel |
Use: | Roof | Production Capacity: | 10~12m/min( cutting time is not included) | Place of Origin: | Zhejiang, China |
Brand Name: | Willing | Model Number: | WLFZ | Power(W): | 20.5 Kw |
Voltage: | according to the customers', 380V 3phase 50HZ or at buyer's requirements | Dimension(L*W*H): | 8000*1400*1400mm | Weight: | around 5000 kgs |
Certification: | CE ISO9001:2008 | Warranty: | 1 year |
Product Description
Z -shape Purlin Roll forming machine
1. Main Parameters
Material Spec | Galvanized or Carbon steel sheet (Q235) |
Coil thickness | 1.5~3.0mm |
Working speed | 10~12m/(cutting time is not included) |
Cutting tolerance | ≤±2.5mm ( length ≤5000mm ) |
≤±3.0mm (5000mm <length ≤10000mm) | |
Effective width tolerance | ± 2.5mm |
Wave height tolerance | ± 1.5mm |
Power requirement | Main motor power: 15Kw |
Hydraulic station power: 5.5Kw | |
3 tons manual un-coiler | Max. capacity: 3000kgs; Inner Dia.: 508mm |
Main roller quantity | Around 14 stands |
Type of cutting | Roll-formed and length-set cutting |
Voltage | 380V 3phase 50HZ or as customers' requirements |
Main body dimension | 8000*1400*1400mm |
2. Material of main equipments
Roller Die Material | G G Cr15 bearing steel with quenched treatment |
Active Shaft Material | High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft, shaft diameter 90mm |
Electric elements:
| Control system PLC panel, transducer and touch screen originally imported from Mitsubishi of Japan. Other elements from famous suppliers in China |
Cutter blade: | Cr12 mould steel with quenched treatment |
3. Working flow
4) Standard equipments of machine
3 tons manual un-coiler | 1 |
Leveling system | 1 |
Guiding equipment | 1 |
Punching device | 1 |
Roll forming equipment | 1 |
Post-cut equipment | 1 |
Hdraulic station | 1 |
PLC control panel | 1 |
Support tables | 2 |

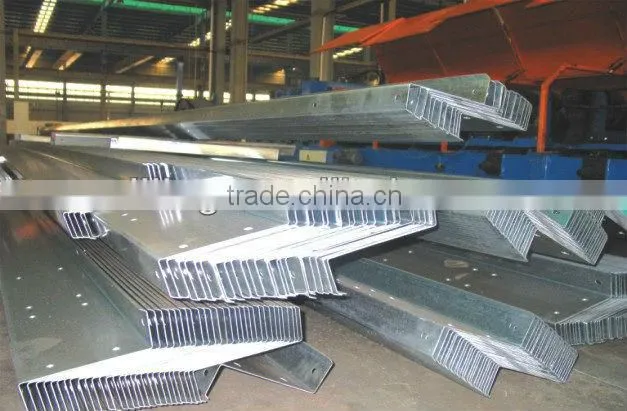

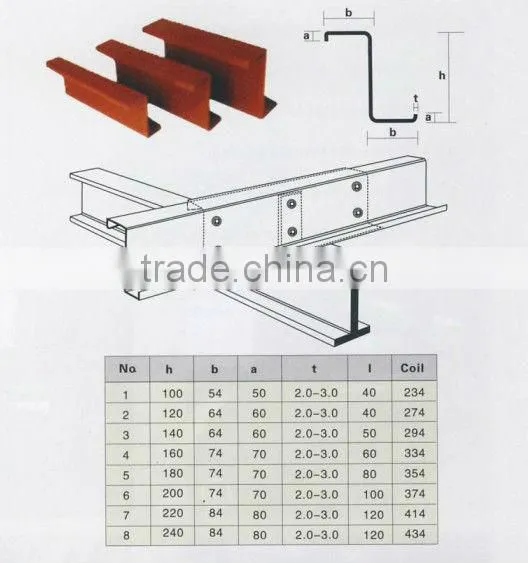

5) Z-shape profiles for your reference

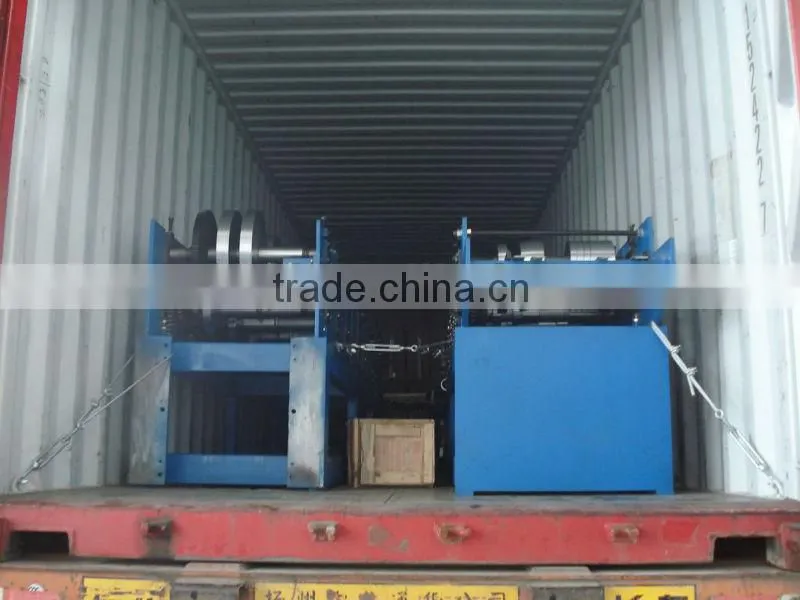

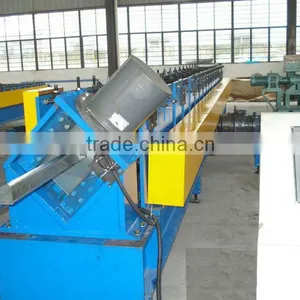

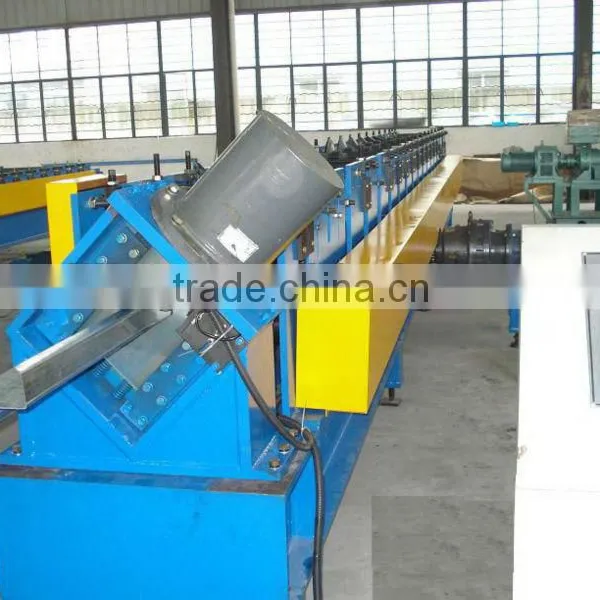

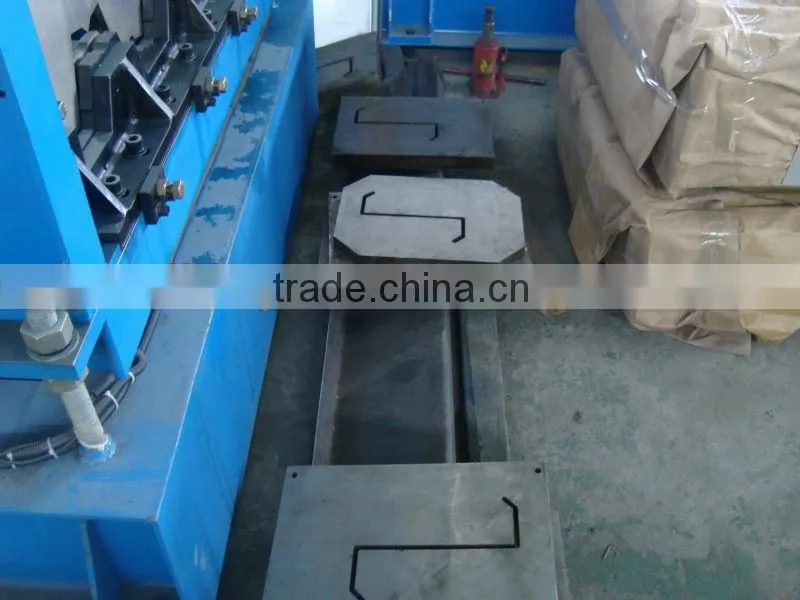

6) Reference pictures
