Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Willing | Model Number: | WLCM-II |
Product Description
Specifications

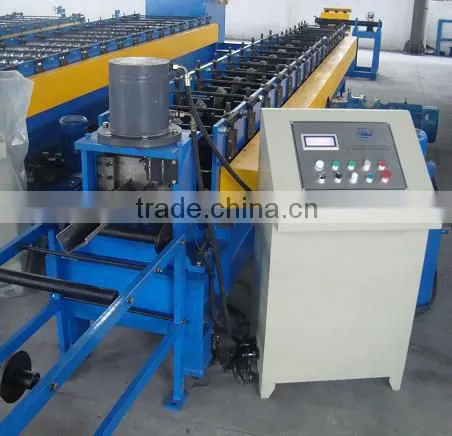

High Quality Steel Framing Line, Purlin Machine, and Roll Forming Machine.High Quality Steel Framing Line,
Purlin Machine,
Roll Forming Machine
1. Components of Steel Framing Line
The roll forming machine includes 4tons manual uncoiler unit, sheet guiding equipment, straightening device, pre-punching device, roll forming system, cutting equipment, hydraulic station, electric controlling system(PLC) and run out supporting table.
2. Technical Parameters
Material specification | galvalume, galvanized steel and carbon steel. |
Thickness | 1.0mm to 2.5mm. |
Main motor power | 15 kw. |
Hydraulic station power | 5.5 kw. |
Feeding width | changeable. |
Cover width | changeable. |
Yield stress | 235Mpa(33KSI) ~ 345Mpa (50KSI). |
Roll forming Speed | 12 m/minute. |
Cutting Tolerance | +/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm). |
Manual Uncoiler | Max. Capacity: 3000kgs. |
Coil inner diameter | 508mm. |
Voltage | As per customer’s request. |
Numbers of stands | 17 stands/stations/pairs. |
Type of cutting | Roll-formed and length-set profile cutting. |
3. Material of Main Equipment
Roller Material | GCr15 bearing steel, with quenching treatment. |
Active Shaft Material | High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. |
Electric Elements | PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
Cutter blades | Cr12 mould steel with quenched treatment. |
4. Process sketch
Uncoiling the sheet --- Infeed guiding --- Straightening --- Pre-punching --- Roll forming --- Measure length --- Cutting the panel --- Panels to the supporter (option: automatic stacker).
5. Specification
6. Series Design of Product
