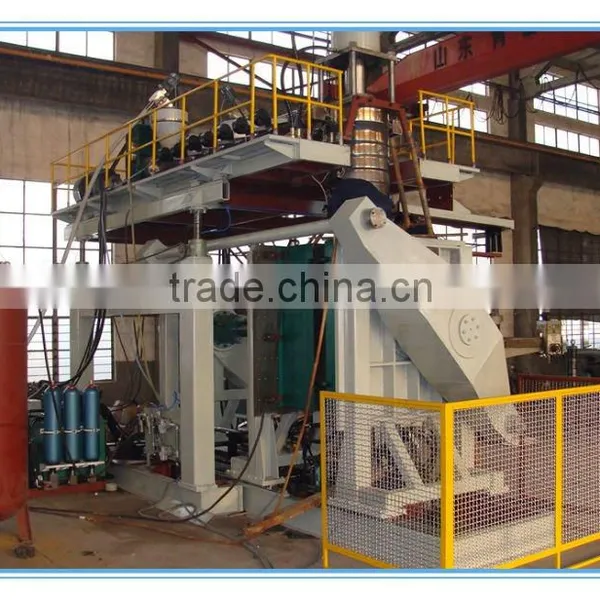

3000L Water Tank Plastic Extruction Production Blow Molding Machine Best Price
US$ 240,000 - 280,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
50L Double Station Water Tank Plastic Extruction Production Blow Molding Machine Best PriceUS$ 79,000 - 129,000MOQ: 1 Set -
220L Double Station Water Tank Plastic Extruction Production Blow Molding Machine Best PriceUS$ 170,000 - 210,000MOQ: 1 Set
-
220L Water Tank Plastic Extruction Production Blow Molding Machine Best PriceUS$ 170,000 - 210,000MOQ: 1 Set
-
Double Ring Drum Blow Molding MachineUS$ 170,000 - 210,000MOQ: 1 Set
-
3000L Water Tank Plastic Extruction Production Blow Moulding Machine Best PriceUS$ 240,000 - 280,000MOQ: 1 Set
Condition
New
Application
Bottle
Plastic Processed
PE
Blow Moulding Type
Extrusion Blow Moulding
Automatic
Yes
Place of Origin
Shandong, China
Brand Name
sehenda
Model Number
SKJ
Certification
CE, ISO 9001: 2008. GB/T9001-2008
Warranty
1YEAR
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1)Application: 200 to 1000L, 1-3 layer.2) 1 year guarantee.
3) CE, ISO 9001: 2008. GB/T9001-2008
4)Fully automatic
3000L 1-3 layer blow molding machine
| Technical specification | ||
| SKJ3000L | ||
| Max. product volume | L | 3000 |
| Screw diameter | MM | 150 |
| Screw L/D ratio | L/D | 30:1 |
| Screw drive power | KW | 160 |
| Screw heating capacity | KW | 35 |
| Screw heating zone | ZONE | 10 |
| Output | KG/H | 460 |
| Oil pump drive power | KW | 55 |
| Clamping force | KN | 1700 |
| Mould open space | MM | 3400 |
| Mould thickness | MM | 1500 |
| capacity | L | 95 |
| Die head capacity | KW | 45 |
| No. of heating zone | ZONE | 5 |
| Die head material | 38 CRMOALA(accumulator,lining,piston,die) | |
| Control action | MITSUBISHI PLC | |
| Blowing pressure | MPA | 0.4-0.6 |
| Cooling water pressure | MPA | 0.2 |
| size of machine | MM | To be confirmed |
| Weight of machine | MT | 32 |
1. Appliction: For container and tank from 500 to 3000 liter, 1-3 layer
, also can be used to produce pallet, waste bin, road barrier, septictank,and so on.
2. Manpower: 2 new workers are enough for the whole production line, even both are female, and two weeks training are free of charge.
3. Output: 5-6pcs for 3000L 3 layer tank per hour, with weight 45-50kg, also the weight and thickness can be adjusted by you from 1mm to 10 mm.
4. Material: HDPE, HMWHDPE.
5. Certificate: CE, ISO9001:2008.
6. Main Markets: Asia, South Amereica, European.
30 years specializing in manufacturing huge blow moulding machine worth your trust .
