GYTA Chinese Factory Aluminum Tape Armored Communication Fiber Cable/Fiber Optical Cable
Description
GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber
counts with the flexibility and versatility required for today's most demanding installations, including duct and
underground conduit.
Features
1.Good mechanical and temperature performance
2.High strength looes tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable from ultraviolet radiation
6. The following measures are taken to ensure the cable watertight:
7. Long delivery length
Applications
- Interbuilding voice or data communication backbone.
- Installed in duct, underground conduit .
Optical Characteristics:

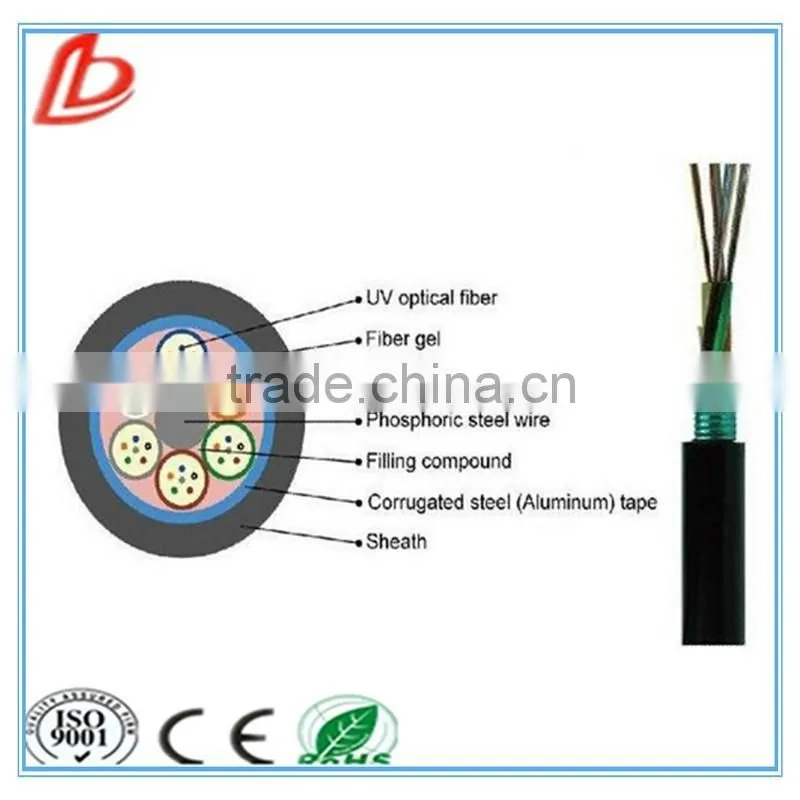

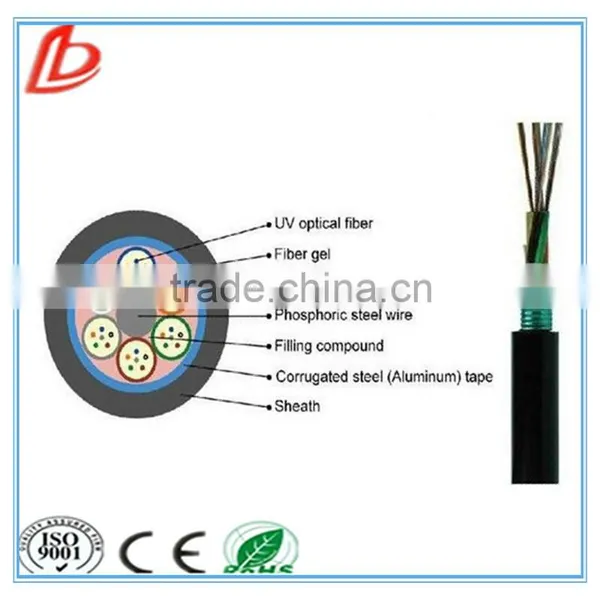

Structure and Technical Specifications
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max FiberPer Tube |
Max No. of(Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance(N/100mm) |
||
Short Term |
Long Term |
Short Term |
Long Term |
|||||
2~36 |
10.3 |
109 |
6 |
6 |
1500 |
600 |
1000 |
300 |
38~72 |
11.5 |
145 |
12 |
6 |
1500 |
600 |
1000 |
300 |
74~96 |
13.5 |
175 |
12 |
8 |
1500 |
600 |
1000 |
300 |
98~120 |
14.8 |
209 |
12 |
10 |
1700 |
600 |
1000 |
300 |
122~144 |
16.6 |
249 |
12 |
12 |
2000 |
600 |
1000 |
300 |
146~216 |
16.7 |
254 |
12 |
18(2 layers) |
2000 |
600 |
1000 |
300 |
218~288 |
19.0 |
325 |
12 |
24(2 layers) |
2500 |
600 |
1000 |
300 |
Pictures
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
