High Quality Stranded Loose Tube Armored 6ore Cable Overhead Fiber Optical GYTA Cable Price

High Quality Stranded Loose Tube Armored 6ore Cable Overhead Fiber Optical GYTA Cable Price thumbnail-3

High Quality Stranded Loose Tube Armored 6ore Cable Overhead Fiber Optical GYTA Cable Price thumbnail-4

High Quality Stranded Loose Tube Armored 6ore Cable Overhead Fiber Optical GYTA Cable Price photo-1

High Quality Stranded Loose Tube Armored 6ore Cable Overhead Fiber Optical GYTA Cable Price photo-2

High Quality Stranded Loose Tube Armored 6ore Cable Overhead Fiber Optical GYTA Cable Price photo-3

High Quality Stranded Loose Tube Armored 6ore Cable Overhead Fiber Optical GYTA Cable Price photo-4

US$ 0.1 - 5 MOQ: 1000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

GYTA

Contact Supplier Request Quote Chat Now

Shenzhen BLH Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number GYTA

Type Coaxial

High Quality Stranded Loose Tube Armored 6ore Cable Overhead Fiber Optical GYTA Cable Price

Description

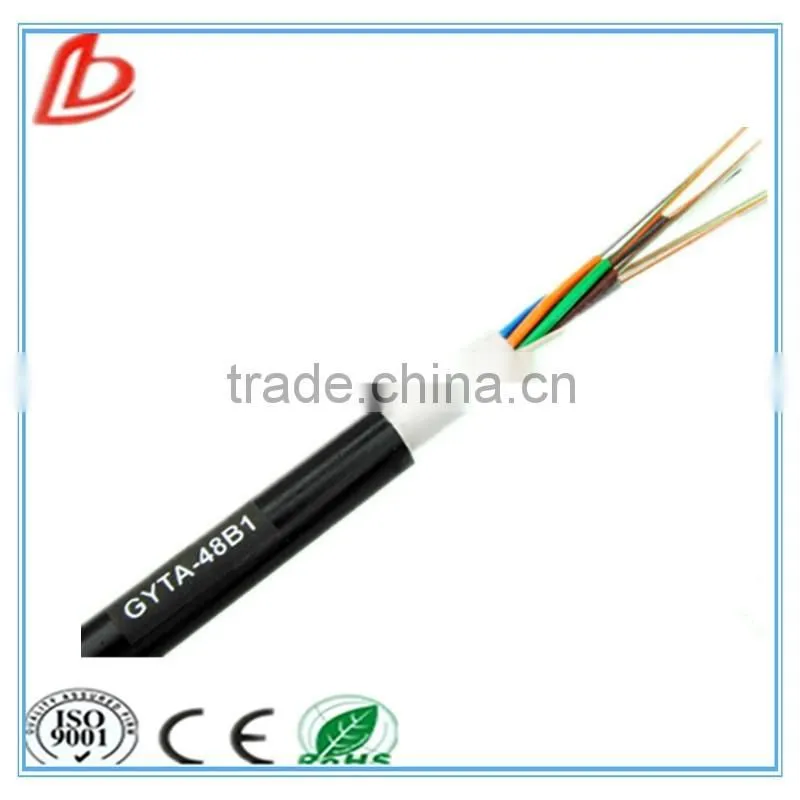

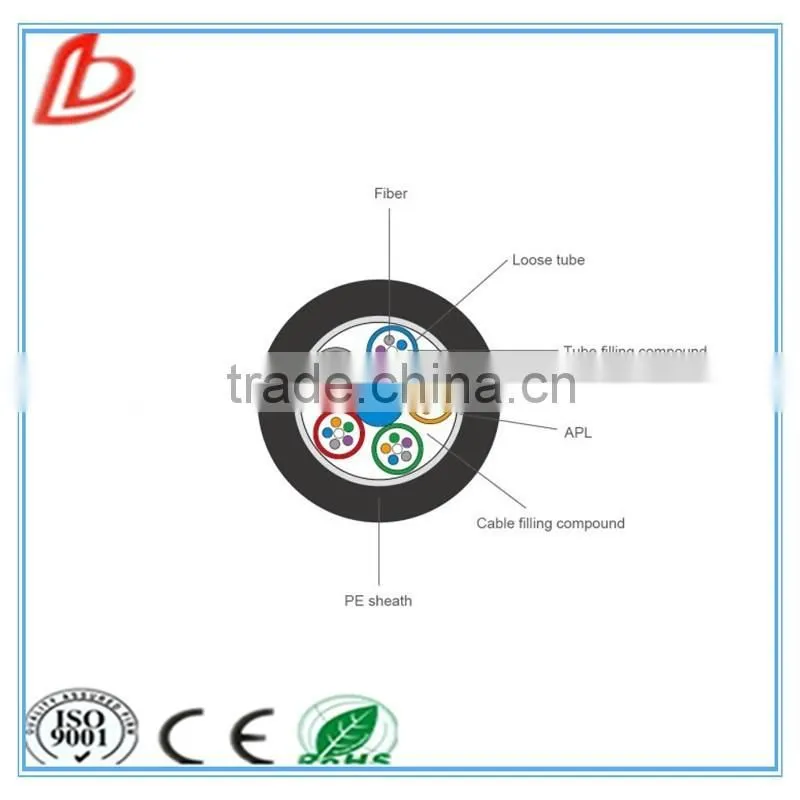

The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.

Features

1.Good mechanical and temperature performance

2.High strength looes tube that is hydrolysis resistant

3.Special tube filling compound ensure a critical protection of fiber

4. Specially designed compact structure is good at preventing loose tubes from shrinking

5. PE sheath protects cable from ultraviolet radiation

6. The following measures are taken to ensure the cable watertight:

7. Long delivery length

Applications

GYTA cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Specifications

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
GYTA-2~6	2~6	1	4	9.7	90	600/1500	300/1000	10D/20D
GYTA-8~12	8~12	2	3	9.7	90	600/1500	300/1000	10D/20D
GYTA-14~18	14~18	3	2	9.7	90	600/1500	300/1000	10D/20D
GYTA-20~24	20~24	4	1	9.7	90	600/1500	300/1000	10D/20D
GYTA-26~30	26~30	5	0	9.7	90	600/1500	300/1000	10D/20D
GYTA-32~36	32~36	6	0	10.2	104	1000/3000	300/1000	10D/20D
GYTA-38~48	38~48	4	1	11.0	117	1000/3000	300/1000	10D/20D
GYTA-50~60	50~60	5	0	11.0	117	1000/3000	300/1000	10D/20D
GYTA-62~72	62~72	6	0	11.5	126	1000/3000	300/1000	10D/20D
GYTA-74~84	74~84	7	1	13.4	154	1000/3000	300/1000	10D/20D
GYTA-86~96	86~96	8	0	13.4	154	1000/3000	300/1000	10D/20D
GYTA-98~108	98~108	9	1	14.8	185	1000/3000	300/1000	10D/20D
GYTA-110~120	110~120	10	0	14.8	185	1000/3000	300/1000	10D/20D
GYTA-122~132	122~132	11	1	16.9	228	1000/3000	300/1000	10D/20D
GYTA-134~144	134~144	12	0	16.9	228	1000/3000	300/1000	10D/20D
GYTA-146~216	146~216			16.9	233	1000/3000	300/1000	10D/20D

Pictures

Payment and Delievery

Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable

Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
